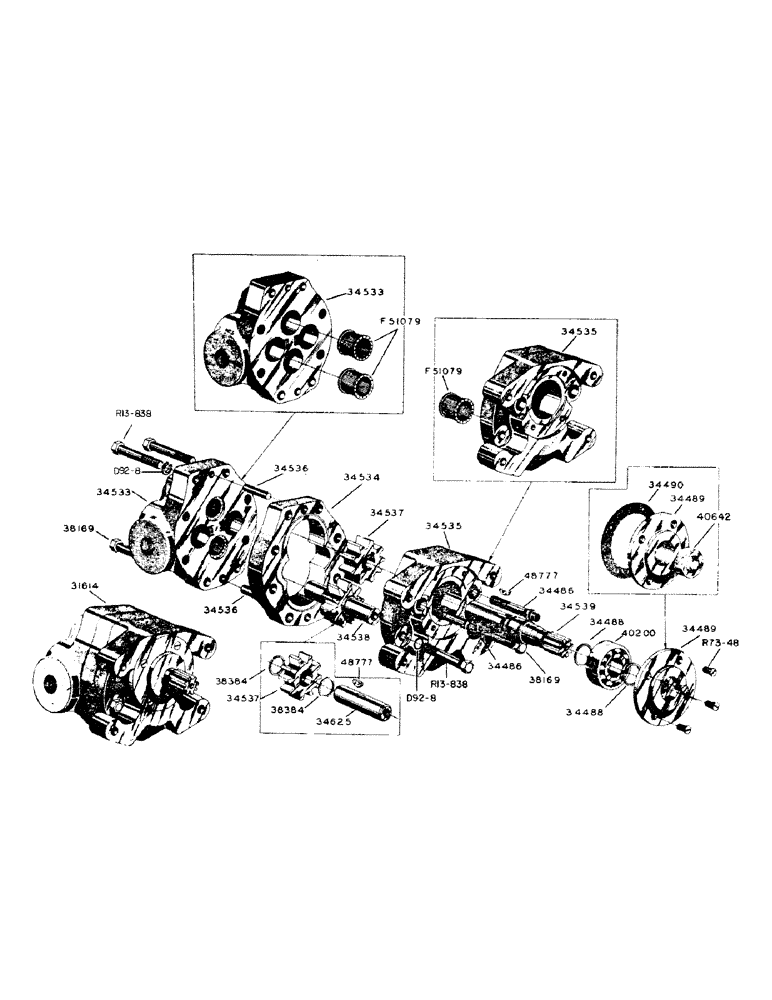

Запчасти Case 310 (37) - 31614 HYDRAULIC PUMP (19 G.P.M.)

5446

GEAR-SET

GEARS - matched set, drive and driven

1шт.

F51079

NEEDLE BEARING

BEARING - needle (Torrington #JH-1616-OH)

3шт.

31614

PUMP - hydraulic, complete (Use D21319)

1шт.

27857R1

SCREW,12 Pt Flg, 1/2" - 13 x 2 3/4"

- special (Counter bore)

2шт.

34488

RING, SNAP

SNAP RING - bearing retaining

2шт.

34489

PLATE - pilot (Includes 34490 gasket and 40642 oil seal)

1шт.

1/4" - 20 NC x 1/2" flat hd. machine screw (R73-48)

4шт.

34490

SPRING

GASKET - pilot plate

1шт.

34533

COVER - (Includes 2 - F51079 needle bearings)

1шт.

1/2" - 13 NC x 2-5/8" hex. hd. cap screws (R13-838)

4шт.

1/2" lockwasher (D92-8)

4шт.

34534

CAM

PLATE - gear

1шт.

34535

X

BODY - (Includes 1 - F51079 needle bearing)

1шт.

1/2" - 13 NC x 2-5/8" hex. hd. cap screws (R13-838)

2шт.

1/2" lockwasher (D92-8)

2шт.

34536

PIN - dowel, pump body

2шт.

34537

X

GEAR - drive and driven (Use 5446)

2шт.

34538

X

GEAR AND SHAFT ASS'Y - driven (Not provided for service)

1шт.

NLS

NO LONGER SERVICED

SHAFT - pump drive

1шт.

34625

GUARD

SHAFT - driven gear

1шт.

38384

SNAP RING - driven gear

2шт.

40200

BEARING ASSY,1.1811" ID x 2.4409" OD x 0.9375"

- drive shaft (N.D. #5260)

1шт.

40642

RICE TOOTH

- pilot plate

1шт.

48777

X

KEY - Woodruff, drive and driven gears

2шт.
