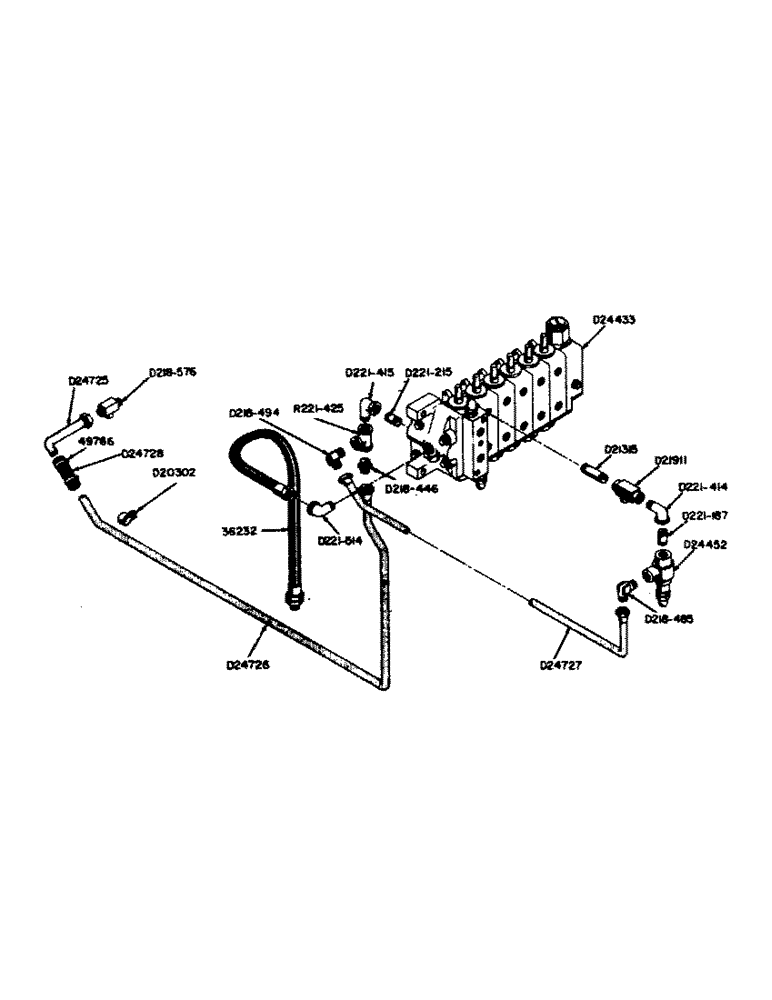

Запчасти Case 310 (36) - HIGH PRESSURE CARRY-OVER HYDRAULICS

36232

HOSE ASSY.

HOSE - valve to pump pressure line (3/4" I.D. x 1-5/32" O.D. x 28")

1шт.

3/4" NPT, 90 degrees street elbow (D221-415)

1шт.

49766

AUGER

CLAMP - hose, tube connector

2шт.

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- tube support (Front of rear section)

1шт.

D21315

NIPPLE - pipe (1/2" NPT x 3-1/2") control valve to boom down pressure line tee

1шт.

D21911

TEE - (1/2" NPT) boom down pressure line

1шт.

D24433

VALVE

- control (See Figure 48 for breakdown)

1шт.

3/4" NPT x 2" pipe nipple (D221-215)

1шт.

3/4" NPT, 90 degrees street elbow (D221-415)

1шт.

3/4" NPT pipe tee (R221-425)

1шт.

D24452

VALVE

- relief, complete (See Figure 42 for breakdown)

1шт.

1/4" NPT 90 degrees street elbow (D221-414)

1шт.

1/2" NPT x 1-1/2" pipe nipple (D221-187)

1шт.

D24725

TUBE - high pressure carry-over, front section

1шт.

3/4" J.I.C. x 3/4" NPT tee (D218-576)

1шт.

D24726

TUBE - high pressure carry-over, rear section

1шт.

3/4" J.I.C. x 3/4" NPT straight connector (D218-446)

1шт.

D24727

TUBE - relief valve to high pressure carry-over line

1шт.

5/8" J.I.C. x 1/2" NPT elbow (D218-485)

1шт.

5/8" J.I.C. x 3/4" NPT elbow (D218-494)

1шт.

D24728

HOSE

- tube connector (3/4" I.D. x 1-1/4" O.D. x 4-1/2")

1шт.
