Запчасти Case 310 (35) - D21003 HYDRAULIC OIL FILTER (REAR MOUNTED)

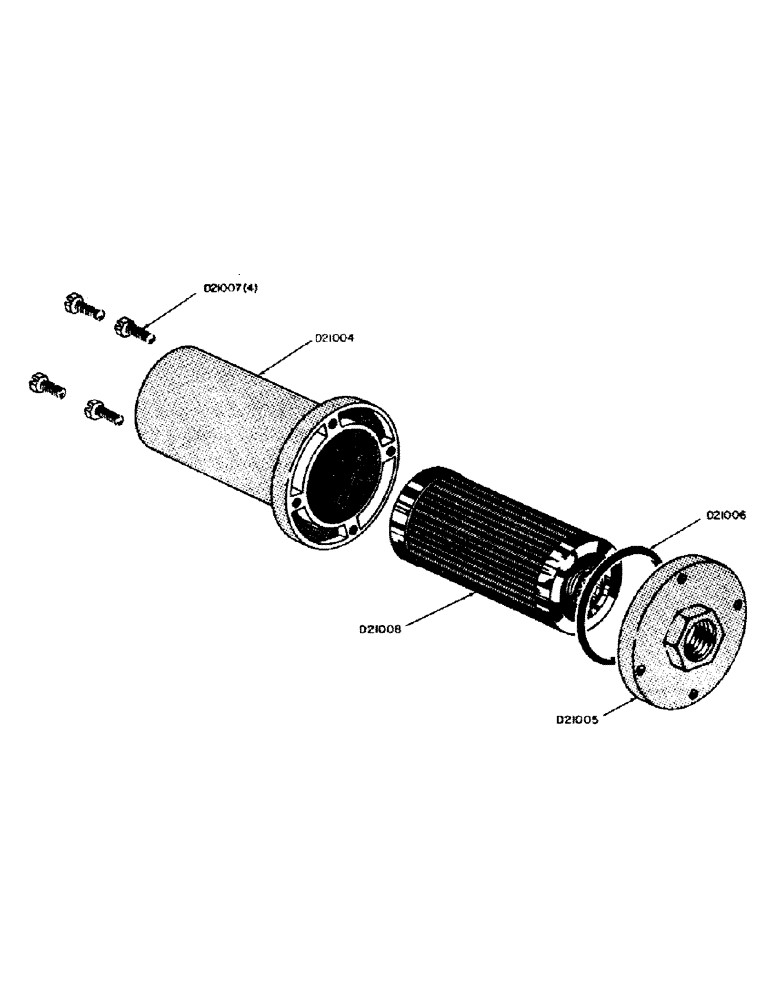

Схема запчастей Case 310 - (35) - D21003 HYDRAULIC OIL FILTER (REAR MOUNTED)

Артикул

Название

Примечание

Количество

D21004

HOUSING

- filter

1шт.

D21005

BASE

- filter housing

1шт.

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

SEAL - "O" ring filter

1шт.

D21007

BOLT,M5 x .8 x 70mm, Cl 10.9

- filter, Serial Range: housing-base

4шт.

D21008

X

CARTRIDGE - filter element

1шт.

Выбрано товаров: 5
