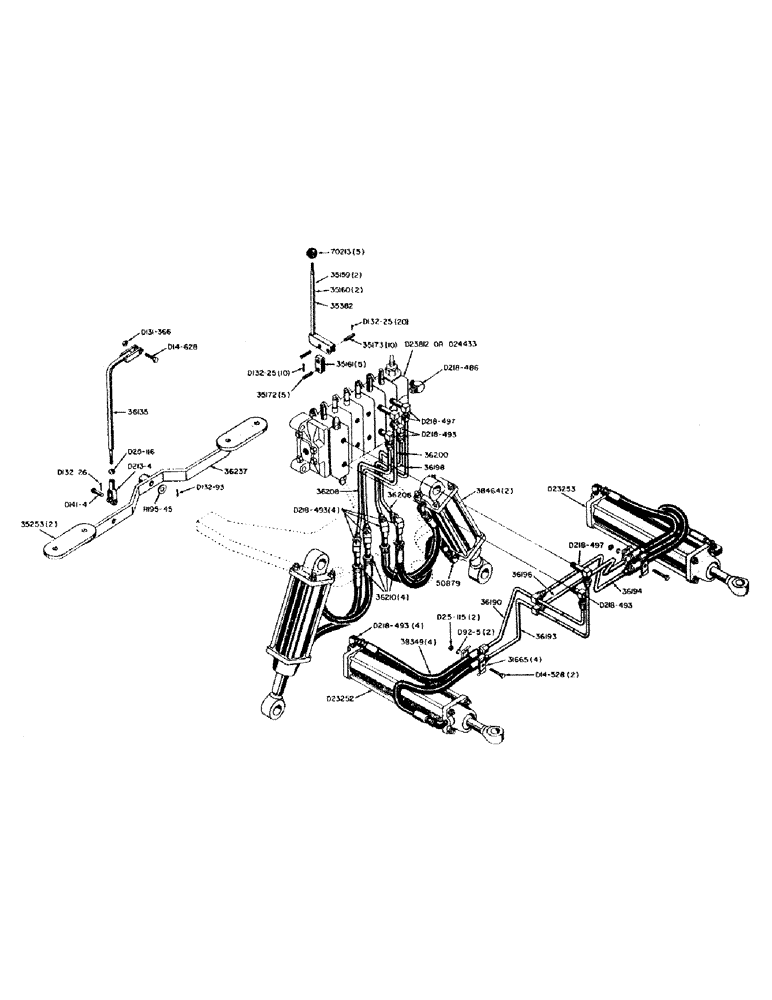

Запчасти Case 310 (22) - SWING CYLINDER AND STABILIZER CYLINDER HYDRAULICS

35159

LEVER - valve, dipper arm and bucket control (9-3/4" long)

2шт.

35160

WASHER

LEVER - valve, stabilizer control (8-1/2" long)

2шт.

35161

valve levers

5шт.

35172

PIN - valve to lever link (3/8" x 1-1/8" long)

5шт.

3/32" x 5/8" cotter pin (D132-25)

10шт.

35173

PIN

valve lever to link (3/8" x 1-7/16" long)

10шт.

3/32" x 5/8" cotter pin (D132-25)

20шт.

35253

NUT

PEDAL - rubber, swing control bar (See 36237)

2шт.

35382

LEVER - valve, boom control (11-1/4" long)

1шт.

36135

SUPPORT

ROD - swing cylinders control

1шт.

3/8" - 24NF hex. nut (D25-116)

1шт.

3/8" - 24NF x 1-3/4" hex. hd. cap screw (D14-628)

1шт.

3/8" - 24NF locknut (D131-366)

1шт.

3/8" - 24NF yoke, swing cylinder control rod (D213-4)

1шт.

3/8" x 1-17/32" pin, swing cylinder control rod adjusting yoke (D141-4)

1шт.

3/32" x 3/4" cotter pin (D132-26)

1шт.

36237

BAR - control, swing cylinder (Includes 2 - 35253 pedals)

1шт.

3/4" plain washer (R195-45)

1шт.

3/16" x 1-1/4" cotter pin (D132-93)

1шт.

70213

KNOB

control lever

5шт.

D23812

VALVE

hydraulic, complete (On models not equipped with high pressure carry over tube) (See Figure 44 for breakdown)

1шт.

3/4" J.I.C. x 3/4" NPT male elbow (D218-486)

1шт.

D24433

VALVE

hydraulic, complete (On models equipped with high pressure carry over tube) (See Figure 48 for breakdown)

1шт.

3/4" J.I.C. x 3/4" NPT male elbow (D218-486)

1шт.

31665

COLLAR CLAMP

hose, swing cylinders hyd's

4шт.

5/16" - 24NF x 1-3/4" hex. hd. cap screw (D14-528), swing cylinders hyd's

2шт.

5/16" lockwasher (D92-5), swing cylinders hyd's

2шт.

5/16" - 24NF hex. nut (D25-115), swing cylinders hyd's

2шт.

36190

HYD TUBE

TUBE - valve to L.H. swing cylinder front hose, hyd's

1шт.

1/2" J.I.C. x 1/2" NPT 90 degree male elbow, valve to swing cylinder tubes (D218-493), hyd's

1шт.

36193

TUBE - valve to L.H. swing cylinder rear hose, hyd's

1шт.

1/2" J.I.C. x 1/2" NPT 90 degree extra long male elbow, valve to swing cylinder tube (D218-497), hyd's

1шт.

36194

LOCK WASHER

TUBE - to R.H. swing cylinder, rear hose, hyd's

1шт.

36196

SEAL

TUBE - to R.H. swing cylinder, front hose,hyd's

1шт.

38349

to swing cylinder ports (1/2" I.D. x 7/8" O.D. x 25-1/2")

4шт.

1/2" J.I.C. x 1/2" NPT 90 degree male elbow, swing cylinder ports (D218-493), hyd's

4шт.

D23252

YLINDER - L.H. swing (Complete) (See Figure 52 for breakdown), hyd's

1шт.

D23253

R.H. swing (Complete) (See Figure 52 for breakdown)

1шт.

36198

TUBE - valve to R.H. stabilizer cylinder upper hose, hyd's

1шт.

1/2" J.I.C. x 1/2" NPT extra long 90 degree male elbow, valve to stabilizer cylinder tube (D218-497), hyd's

1шт.

36200

SCREW

TUBE - valve to L.H. stabilizer cylinder upper hose, hyd's

1шт.

1/2" J.I.C. x 1/2" NPT extra long 90 degree male elbow, valve to stabilizer cylinder tube (D218-497), hyd's

1шт.

36206

FLEXIBLE HOSE

TUBE - valve to R.H. stabilizer cylinder lower hose, hyd's

1шт.

1/2" J.I.C. x 1/2" NPT 90 degree male elbow (D218-493), stabilizer cylinders hyd's

1шт.

36208

TUBE - valve to L.H. stabilizer cylinder lower hose, hyd's

1шт.

1/2" J.I.C. x 1/2" NPT 90 degree male elbow (D218-493), stabilizer cyl hyd's

1шт.

36210

HOSE

stabilizer cylinder (1/2" I.D. x 7/8" O.D. x 21-1/2"), hyd's

4шт.

1/2" J.I.C. x 1/2" NPT 90 degree male elbow, hose to stabilizer cylinder (D218-493), hyd's

4шт.

38464

SEPARATOR

CYLINDER - stabilizer (Complete) (See Figure 54 for breakdown), hyd's

2шт.

50879

PROFILE

ELBOW - 90 degree special, tubes to stabilizer cylinder hoses, hyd's

4шт.
