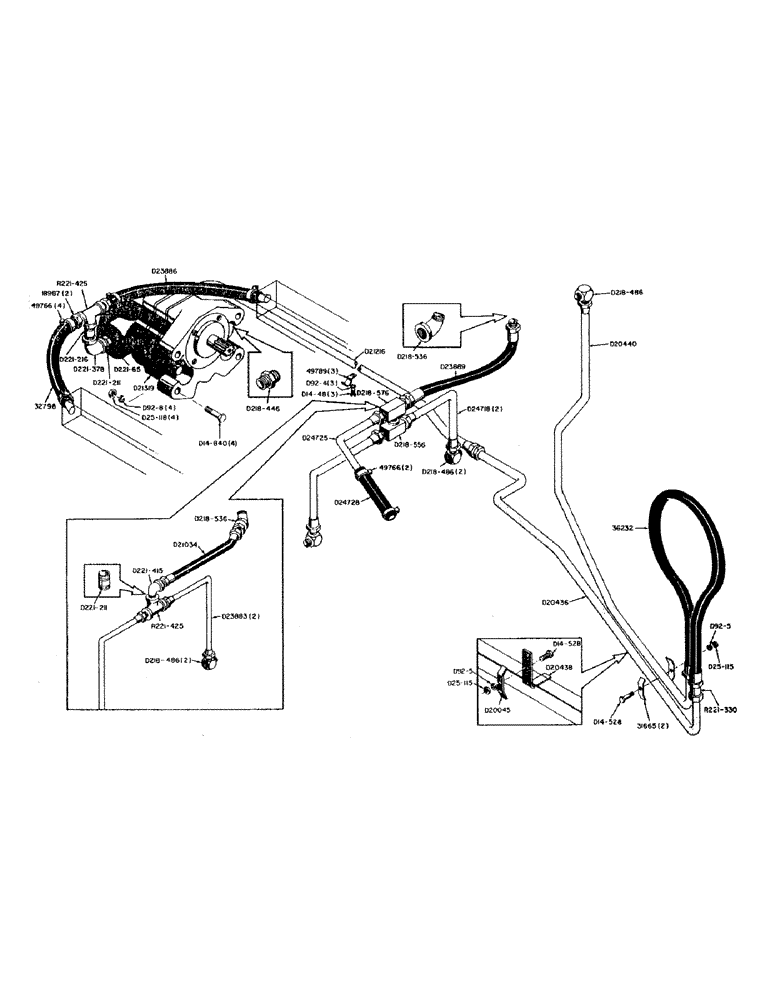

Запчасти Case 310 (20) - PRIMARY HYDRAULIC SYSTEM, (REAR MOUNTED FILTER WITH EQUALIZER TUBES)

18987

TUBE - pump suction line

2шт.

3/4" NPT pipe tee (R221-425)

1шт.

3/4" NPT x 2-1/2" pipe nipple (D221-216)

1шт.

3/4" NPT pipe elbow (D221-378)

1шт.

3/4" NPT x 1-3/8" pipe nipple (D221-211)

1шт.

1" NPT to 3/4" NPT reducer bushing (D221-65)

1шт.

31665

COLLAR CLAMP

CLAMP - tube

2шт.

5/16" - 24NF x 1-3/4" hex. hd. cap screw (D14-528)

1шт.

5/16" lockwasher (D92-5)

1шт.

5/16" - 24NF hex. nut (D25-115)

1шт.

32798

HOSE

- L.H. reservoir to pump suction line tee (1" I.D. x 1-1/2" O.D. x 6")

1шт.

36232

HOSE ASSY.

HOSE - backhoe valve to loader valve pressure tube (3/4" I.D. x 1-5/32" O.D. x 28")

1шт.

3/4" NPT pipe coupling, pump pressure line to 36232 hose (R221-330)

1шт.

49766

AUGER

CLAMP - hose, pump suction line

4шт.

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, high pressure carry-over line

2шт.

49789

CLAMP

- tube, pump pressure line

3шт.

1/4" - 28NF x 1/2" hex. hd. screw (D14-48)

3шт.

1/4" lockwasher (D92-4)

3шт.

D20045

PLATE ASSY.

CLAMP - tube

1шт.

5/16" - 24NF x 1-3/4" hex. hd. cap screw (D14-528)

1шт.

5/16" lockwasher (D92-5)

1шт.

5/16" - 24NF hex. nut (D25-115)

1шт.

D20436

TUBE - pressure line, rear section

1шт.

D20438

BRACKET - pump pressure line clamp

1шт.

D20440

TUBE - backhoe valve to loader valve

1шт.

3/4" J.I.C. x 3/4" NPT, 45 degrees male elbow (D218-536)

1шт.

D21003

FILTER

- hydraulic oil (Rear mounted) (See Figure 35 for breakdown) (Not shown)

1шт.

3/4" NPT 90 degrees street elbow (D221-415)

1шт.

3/4" J.I.C. x 3/4" NPT 45 degrees male elbow, used with D21034 hose (D218-536)

1шт.

D21034

HOSE - filter to equalizer tube, not used if high pressure carry-over is used, (3/4" I.D. x 1-5/32" O.D. x 22")

1шт.

3/4" NPT, 90 degrees street elbow (D221-415)

1шт.

D21216

TUBE - pressure line from pump

1шт.

D21319

PUMP - hydraulic (Webster 2XES1-L 19 G.P.M.) (See Figure 38 for breakdown)

1шт.

3/4" NPT, 90 degrees female elbow on L.H. side of pump (D221-378)

1шт.

3/4" J.I.C. x 3/4" NPT straight fitting on R.H. side of pump (D218-446)

1шт.

1" NPT to 3/4" NPT reducer bushing (D221-65)

1шт.

1/2" -20NF x 2-1/2" hex. hd. cap screw (D14-840)

4шт.

1/2 lockwasher (D92-8)

4шт.

1/2" - 20NF hex. nut (D25-118)

4шт.

D23883

TUBE - equalizer, Serial Range: tee-reservoir

2шт.

3/4" J.I.C. x 3/4" NPT, 90 degrees male elbow (D218-486)

2шт.

3/4" NPT female pipe tee (R221-425)

1шт.

3/4" NPT x 1-3/8" pipe nipple used on high pressure carry-over kits field installed (D221-211)

1шт.

D23886

HOSE

- R.H. reservoir to pump suction line tee (1" I.D. x 1-1/2" O.D. x 17")

1шт.

D23889

HOSE - filter to equalizer tube with high pressure carry-over (3/4" I.D. x 1-5/32" O.D. x 17-1/2")

1шт.

3/4" J.I.C. x 3/4" NPT, tee filter return line (D218-576)

1шт.

D24718

TUBE - equalizer, Serial Range: tee-reservoir

2шт.

3/4" J.I.C. x 3/4" NPT, 90 degrees male elbow (D218-486)

2шт.

3/4" J.I.C. x 3/4" NPT, tee joins L.H. and R.H. equalizer tube (D218-556)

1шт.

D24725

TUBE - high pressure carry-over (Front section)

1шт.

D24728

HOSE

- coupling, high pressure carry-over tube front and rear sections (3/4" I.D. x 1-1/4" O.D. x 4-1/2")

1шт.
