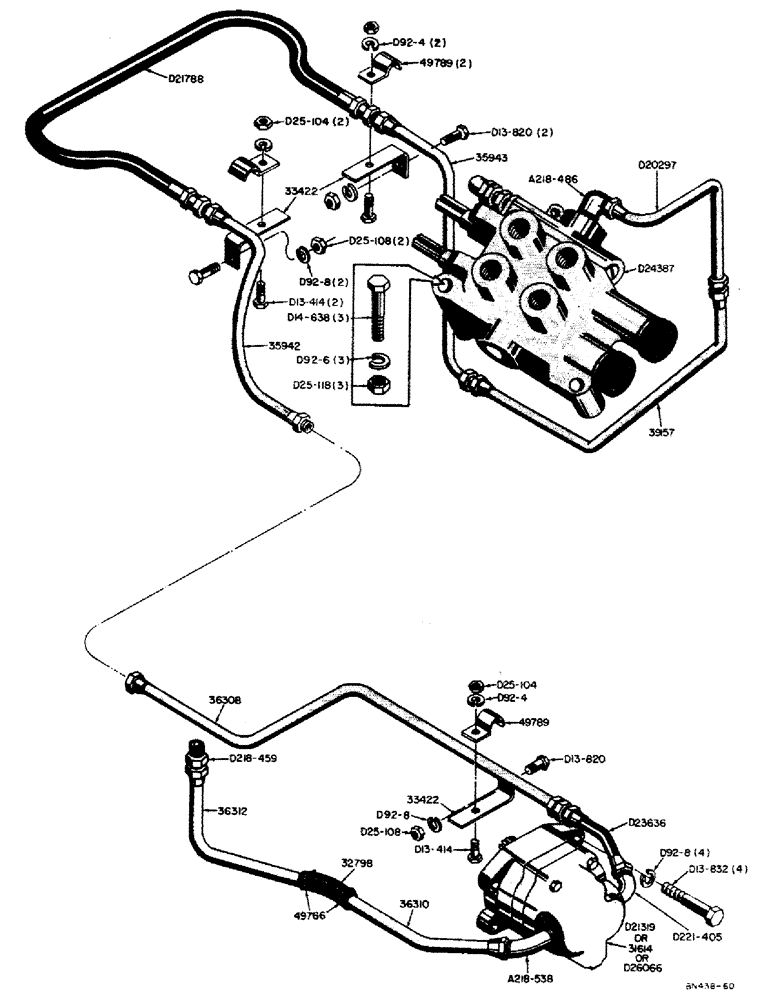

Запчасти Case 310 (14) - BASIC BACKHOE HYDRAULICS

31614

PUMP - hydraulic, 19 G.P.M. (See figure 30 for breakdown) Original equipment only - use D21319 or D26066

1шт.

1/2" - 13 x 2" NC hex. hd. cap screw (D13-832)

4шт.

1/2" lockwasher (D92-8)

4шт.

32798

HOSE

- connects front and rear sections of line from reservoir to pump (1" I.D. x 1-1/2" O.D. x 6" long)

1шт.

33422

BRACKET - 49789 clamp

3шт.

1/2" - 13 x 1-1/4" NC hex. hd. cap screw (D13-820)

3шт.

1/2" lockwasher (D92-8)

3шт.

1/2" 13 NC hex. nut (D25-108)

3шт.

35146

DISCONNECT - quick (Includes 1-36262 male half and 1-36263 female half)

1шт.

NLS

NO LONGER SERVICED

HOSE - backhoe control valve (Used only on models with quick disconnects) (3/4" I.D. x 1-5/32" O.D. x 25" long) See D21788

2шт.

35942

TUBE - pump to backhoe control valve, rear section

1шт.

35943

TUBE - backhoe control valve to loader control valve, rear section

1шт.

36262

DISCONNECT - quick, male half (See 35146 and 36263)

1шт.

36263

DISCONNECT - quick, female half (See 35146 and 36262)

1шт.

36308

BOLT

TUBE - pump to backhoe control valve, center section

1шт.

36310

SEAL

TUBE - reservoir to pump, front section

1шт.

1" NPT x 1" JIC male elbow, 45 degrees (A218-538)

1шт.

36312

NEEDLE BEARING

TUBE - reservoir to pump, rear section

1шт.

3/4" NPT x 1" JIC straight male adapter (D218-459)

1шт.

NLS

NO LONGER SERVICED

VALVE - control, hydraulic (See model 310C crawler parts catalog 664 for breakdown) Use D24387

1шт.

39157

TUBE - backhoe control valve to loader control valve, center section

1шт.

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - 32798 hose

2шт.

49789

CLAMP

- 35942, 35943, and 36308 tubes

3шт.

1/4" - 20 x 7/8" NC hex. hd. cap scrw (D13-414)

3шт.

1/4" lockwasher (D92-4)

3шт.

1/4" 20 NC hex. nut (D25-104)

3шт.

D20297

TUBE - backhoe control valve to loader control valve, front section

1шт.

3/4" NPT x 3/4" JIC male elbow, 90 degrees (A218-486)

1шт.

D21319

PUMP - hydraulic, 19 G.P.M. (See page 32 for breakdown) See 31614 and D26066

1шт.

1/2" - 13 x 2" NC hex. hd. cap screw (D13-832)

4шт.

1/2" lockwasher (D92-8)

4шт.

D21788

HOSE

- backhoe control valve (Used only on models without quick disconnects) (3/4" I.D. x 1-5/32" O.D. x 31" long)

2шт.

D23636

HOSE - pump to backhoe control valve, front section (3/4" I.D. x 1-5/32" O.D. x 12" long)

1шт.

3/4" NPT street elbow, 45 degrees (D221-405)

1шт.

D24387

SPOOL

VALVE - control, hydraulic (See model 310C crawler parts catalog 664 for breakdown) See D38256

1шт.

3/8" - 24 x 2-1/4" NF hex. hd. cap screw (D14-636)

3шт.

3/8" lockwasher (D92-6)

3шт.

3/8" - 24 NF hex. nut (D25-118)

3шт.

D26066

PUMP - hydraulic, 19 G.P.M. (Heavy duty) (See figure 34 for breakdown) Replacement only - not original equipment

1шт.

1/2" - 13 x 2" NC hex. hd. cap screw (D13-832)

4шт.

1/2" lockwasher (D92-8)

4шт.
