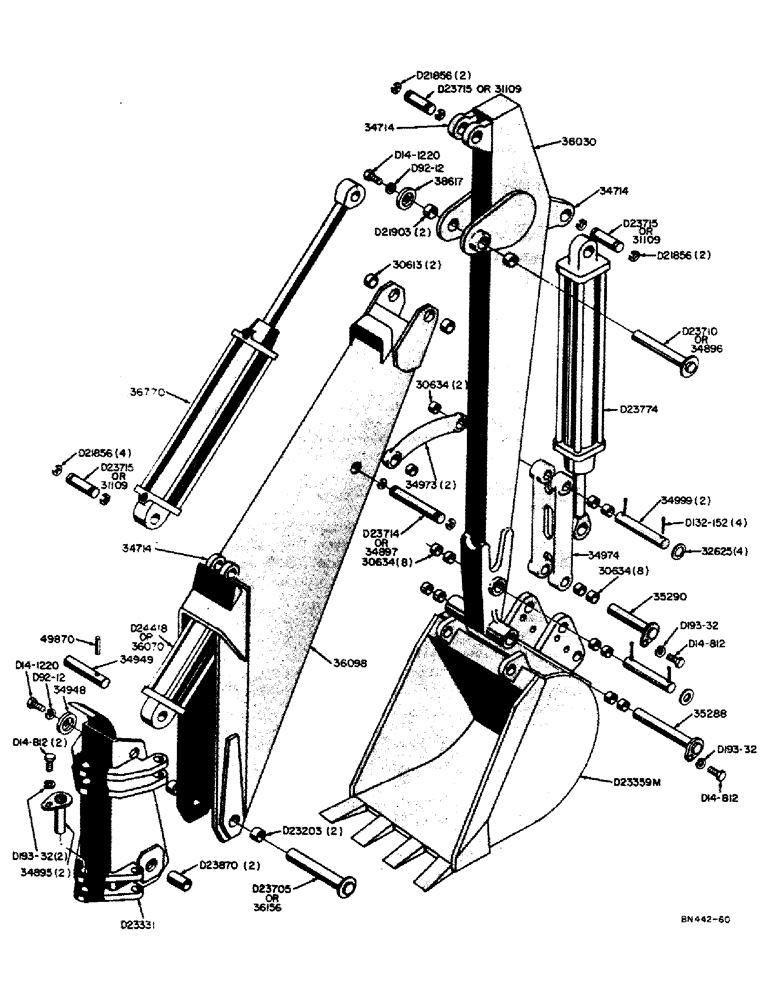

Запчасти Case 310 (08) - TOWER, BOOM, DIPPER ARM, AND BUCKET, TOWER BOOM

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- boom, upper (See D20201)

2шт.

31109

PIN ASSY.

PIN - pivot, crowd cylinder to boom (Use D23715 and D21856)

1шт.

1/2" - 20 x 1" NF hex. hd. cap screw (D14-816)

1шт.

1/2" internal tooth Shakeproof lockwasher (D193-32)

1шт.

31139

X

BUSHING - tower, boom pivot (Use D23870)

2шт.

34714

BRAKE SHOE

ANCHOR - crowd, Serial Range: cylinder-boom

1шт.

34727

TOWER - backhoe (Use D23331)

1шт.

34895

PIN - pivot, mounting, Serial Range: bracket-tower

2шт.

1/8" NPT, 90 degrees fitting (Lincoln #5400)

2шт.

1/2" - 20 x 3/4" NF hex. hd. cap screw (D14-812)

2шт.

1/2" internal tooth Shakeproof lockwasher (D193-32)

1шт.

34896

PIN - pivot, dipper arm to boom (Use D23710)

1шт.

1/2" - 20 x 1" NF hex. hd. cap screw (D14-816)

1шт.

1/2" internal tooth Shakeproof lockwasher (D193-32)

1шт.

34897

PIN - pivot, boom cylinder (Upper) (Use D23714 and D21856)

1шт.

1/2" - 20 x 1" NF hex. hd. cap screw (D14-816)

1шт.

1/2" internal tooth Shakeproof lockwasher (D193-32)

1шт.

34948

WASHER - boom pivot pin (3" O.D. x 13/16" I.D.)

1шт.

3/4" - 16 x 1-1/4" NF hex. hd. cap screw (D14-1220)

1шт.

3/4" lockwasher (D92-12)

1шт.

34949

PIN - pivot, boom cylinder (Lower)

1шт.

36070

TOY

CYLINDER - boom, hydraulic (3-1/2" dia.) (See figure 46 for breakdown) See D24418

1шт.

36098

BOOM - backhoe (Includes 2-D23203 and 2-30613 bushings; 1-34714 anchor)

1шт.

1/8" NPT straight grease fitting (Lincoln #5000)

1шт.

36156

PIN - pivot, boom to tower (Use D23705)

1шт.

1/8" NPT straight grease fitting (Lincoln #5000)

1шт.

1/2" - 20 1" NF hex. hd. cap screw (D14-816)

1шт.

1/2" internal tooth Shakeproof lockwasher (D193-32)

1шт.

38617

WASHER - boom to dipper arm pivot pin (2-1/2" O.D. x 1-17/32" I.D.)

1шт.

3/4" - 16 1-1/4" NF hex. hd. cap screw (D14-1220)

1шт.

3/4" lockwasher (D92-12)

1шт.

49870

BOLT

PIN - lock, 34949 boom cylinder lower pivot pin

1шт.

D21856

SNAP RING,#X137, 1.268" Dia, E-Type

Ring, Retaining, , D23714 and D23715 pins #X137, 1.268" Dia, E-Type

4шт.

D23203

BUSHING

- boom, lower

2шт.

D23331

TOWER - backhoe (Includes 2-D23870 bushings)

1шт.

D23705

PIN - pivot, boom to tower (See D26500)

1шт.

D23710

PIN

- pivot, dipper arm to boom (See D26501)

1шт.

D23714

PIN - pivot, boom cylinder (Upper)

1шт.

D23715

PIN - pivot, crowd, Serial Range: cylinder-boom

1шт.

D23740

BUSHING

- lockhead pin bolt

1шт.

D23870

BUSHING

- tower, boom pivot

2шт.

D24418

CYLINDER - boom, hydraulic (optional 4" dia.) (See figure 48 for breakdown) See 36070

1шт.

30530

BOLT,Hex Flg, 5/16" - 18 x 2 1/4"

CYLINDER - bucket, hydraulic (See figure 52 for breakdwon) Use D23774, dipper arm

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- 34973 link, 34974 link, and lower end of dipper arm

20шт.

31109

PIN ASSY.

PIN - pivot, crowd cylinder to dipper arm; also bucket cylinder to dipper arm (Use D23715 and D21856)

2шт.

31148

BUSHING - dipper arm to boom pivot (Use D21903)

2шт.

32625

WASHER - 34999 pin (2-1/2" O.D. x 1-9/32" I.D.), dipper arm

4шт.

34714

BRAKE SHOE

ANCHOR - crowd and bucket cylinders on dipper arm

2шт.

34973

LINK - bucket (Includes 2-30634 bushings), dipper arm

2шт.

34974

LINK - bucket dump (Includes 8-30634 bushings), dipper arm

1шт.

34999

PIN - pivot, bucket link to dipper arm; also bucket, Serial Range: cylinder-link

2шт.

1/4" x 1-3/4" cotter pin (D132-152), dipper arm

4шт.

35288

PIN - pivot, bucket to dipper arm

1шт.

1/2" - 20 x 3/4" NF hex. hd. cap screw (D14-812), dipper arm

1шт.

1/2" internal tooth Shakeproof lockwasher (D193-32), dipper arm

1шт.

35290

PIN

- pivot, bucket dump link to bucket, dipper arm

1шт.

1/2" - 20 x 3/4" NF hex. hd. cap screw (D14-812), dipper arm

1шт.

1/2" internal tooth Shakeproof lockwasher (D193-32), dipper arm

1шт.

36030

ROLLER

ARM - dipper (Includes 2-D21903 and 8-30634 bushings; 2-34714 anchors)

1шт.

1/8" straight grease fitting (lincoln #5000), dipper arm

1шт.

36770

CYLINDER - crowd, hydraulic (See figure 50 for breakdown), dipper arm

1шт.

D21856

SNAP RING,#X137, 1.268" Dia, E-Type

Ring, Retaining, , D23715 pins, dipper arm #X137, 1.268" Dia, E-Type

4шт.

D21903

BUSHING

- dipper arm to boom pivot

2шт.

D23359M

BUCKET - backhoe, trenching (18") (Machinery item) See page 12 for other buckets, dipper arm

1шт.

D23715

PIN - pivot crowd cylinder to dipper arm; also bucket cylinder to dipper arm

2шт.

D23740

BUSHING

- lockhead pin bolt, dipper arm

1шт.

D23774

CYLINDER - bucket, hydraulic (See figure 52 for breakdown), dipper arm

1шт.

34948

WASHER - boom pivot pin (3" O.D. x 13/16" I.D.), when equipped with D11011 reconditioning kit

1шт.

3/4" - 10 x 1-1/4" NC hex. hd. cap screw (R13-1220), parts for boom when equipped with D11011 reconditioning kit

1шт.

3/4" lockwasher (D92-12), parts for boom when equipped with D11011 reconditioniong kit

1шт.

38617

WASHER - boom to dipper arm pivot pin (2-1/2" O.D. x 1-17/32" I.D.), when equipped with D11011 reconditoning kit

1шт.

3/4" - 10 x 1-1/4" NC hex. hd. cap screw (R13-1220), parts for boom when equipped with D11011 reconditioning kit

1шт.

3/4" lockwasher (D92-12), parts for boom when equipped with D11011 reconditioning kit

1шт.

D20201

BUSHING

- boom, upper (Required in addition to 30613 bushings listed above), when equipped with D11011 reconditioning kit

2шт.

D23203

BUSHING

- boom, lower (Required in addition to D23203 bushings listed above), when equipped with D11011 reconditioning kit

2шт.

D26500

PIN - pivot, boom to lower (See D23705), when equipped with D11011 reconditioning kit

1шт.

D26501

PIN - pivot, dipper arm to boom (See D23710), when equipped with D11011 reconditioning kit

1шт.
