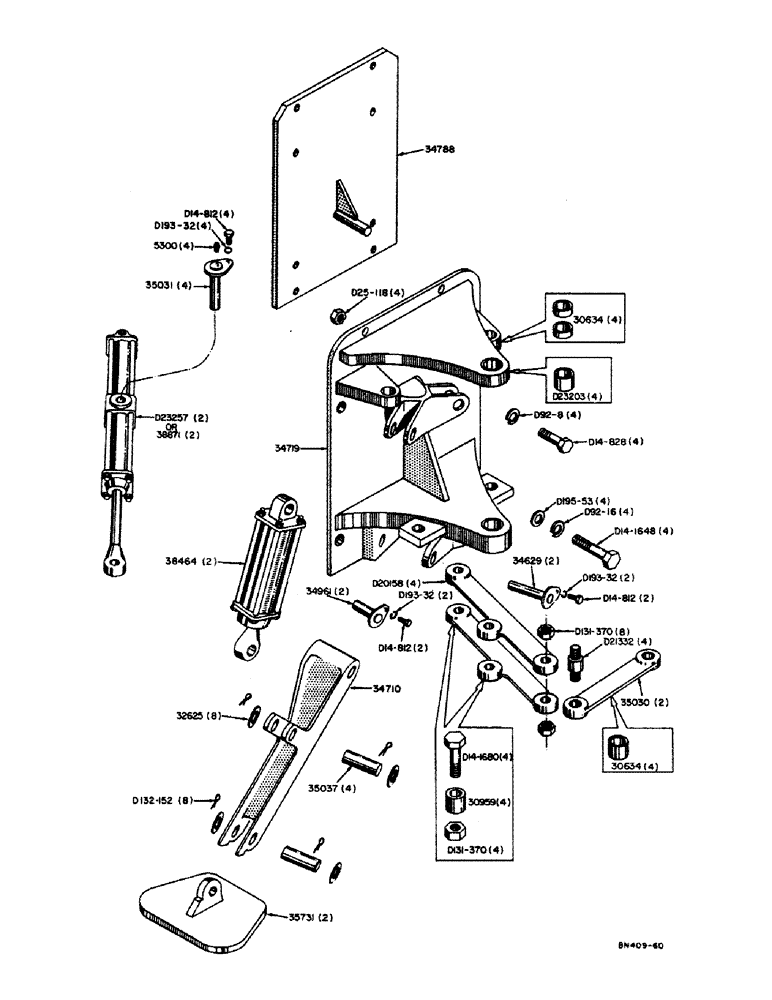

Запчасти Case 310 (06) - MOUNTING PARTS, SWING LINKAGE, AND STABILIZERS, MOUNTING PARTS

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- mounting bracket, for swing links

4шт.

34719

BRACKET - mounting, backhoe (Includes 4-30634 and 4-D23203 bushings; 1-35395 pin)

1шт.

1" - 14 x 3" NF hex. hd. cap screw (D14-1648)

4шт.

1" lockwasher (D92-16)

4шт.

1-1/16" plain washer (D195-53)

4шт.

34788

HOUSING

PLATE - mounting, control valve

1шт.

1/2" - 20 x 1-3/4" NF hex. hd. screw (D14-828)

4шт.

1/2" lockwasher (D92-8)

4шт.

1/2" - 20 NF hex. nut (D25-118)

4шт.

35395

PIN - retaining, transport (Includes chain) Not shown

1шт.

70466

BUSHING

- mounting bracket, tower pivot (Use D23203)

4шт.

D23203

BUSHING

- mounting bracket, tower pivot

4шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- 35030 link, swing cylinders and links

8шт.

30959

SPACER - D14-1680 cap screw, swing cylinders and links

4шт.

35030

LINK - swing rear (Includes 4-30634 bushings), swing cylinders and links

2шт.

1" - 14 x 5" NF hex. hd. cap screw (D14-1680) (Piston rod yoke; link to tower), swing cylinders and links

4шт.

1" - 14 NF hex. lock nut (D131-370), swing cylinders and links

4шт.

35031

PIN

- pivot, swing cylinder and links

4шт.

1/8" NPT - 67-1/2 degrees grease fitting (Lincoln #5300), swing cylinders and links

4шт.

1/2" - 20 x 3/4" NF hex. hd. cap screw (D14-812), swing cylinders and links

4шт.

1/2" internal tooth Shakeproof lockwasher (D193-32), swing cylinders and links

4шт.

38871

CYLINDER - swing, hydraulic (See figure 42 for breakdown) (Has 3" O.D. cylinder tube) Use D23257, cylinders and links

2шт.

D20158

LINK - swing, front, cylinders and links

4шт.

D21332

BOLT - mounting bracket to link, links to link, swing cylinders

4шт.

1" - 14 NF lock nut (D131-370), swing cylinders and links

8шт.

1/8" NPT straight grease fitting (Lincoln #5000), swing cylinders and links

4шт.

D23257

CYLINDER - swing, hydraulic (See figure 42 for breakdown) Has 2-7/8" O.D. cylinder tube, and links

2шт.

D23740

BUSHING

- lockhead pin bolt (If used), swing cylinders and links

4шт.

32625

WASHER - stabilizer cylinder pin; foot pivot pin (1-9/32" I.D. x 2-1/2" O.D. x 11/64" thick)

8шт.

34629

PIN - pivot, stabilizer arm mounting

2шт.

1/2" - 20 x 3/4" NF hex. hd. cap screw (D14-812), stabilizers

2шт.

1/2" internal tooth Shakeproof lockwasher (D193-32), stabilizers

2шт.

34709

ARM - stabilizer, R.H.

1шт.

34710

ARM - stabilizer, L.H.

1шт.

34961

PIN - pivot, stabilizer cylinder (Upper)

2шт.

1/2" - 20 x 3/4" NF hex. hd. cap screw (D14-812), stabilizers

2шт.

1/2" internal tooth Shakeproof lockwasher (D193-32), stabilizers

2шт.

35037

PIN - pivot, stabilizer cylinder (Lower); stabilizer, Serial Range: arm-foot

4шт.

1/4" x 1-3/4" cotter pin (D132-152), stabilizer

8шт.

35731

BUSHING

FOOT - stabilizer

2шт.

38464

SEPARATOR

CYLINDER - stabilizer, hydraulic (See figure 44 for breakdown)

2шт.

D23740

BUSHING

- lockhead pin bolt (If used), stabilizer

4шт.
