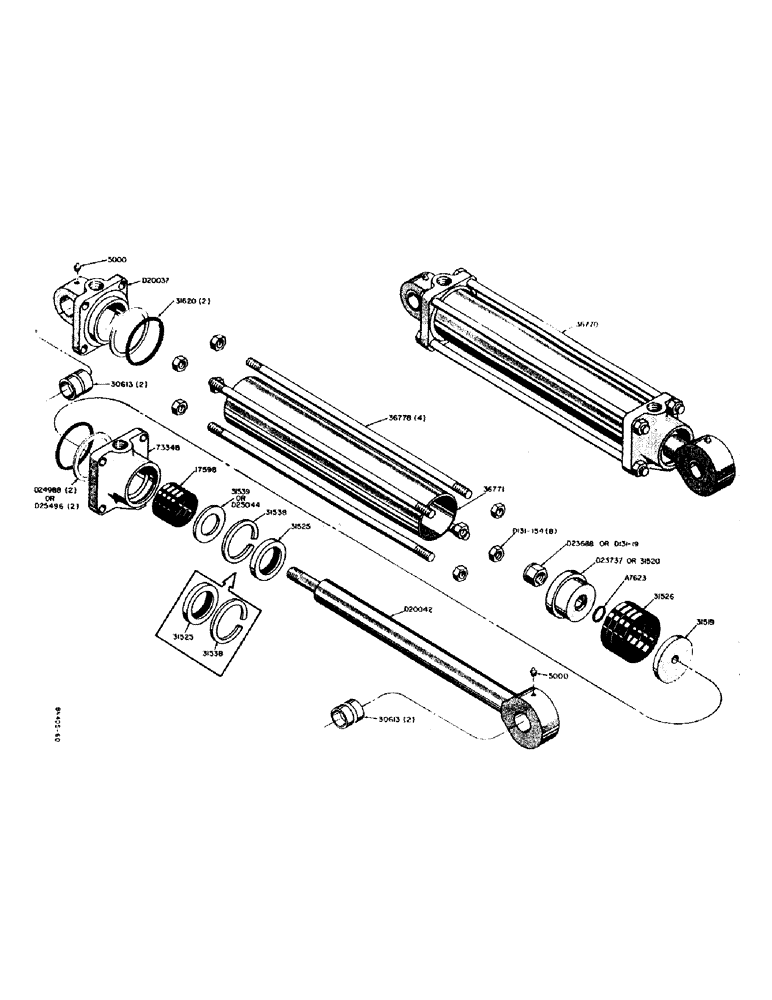

Запчасти Case 310 (50) - 36770 HYDRAULIC CROWD CYLINDER

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring (Used with D23737 piston only)

1шт.

17598

PACKING

- piston rod

1шт.

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end and piston rod yoke

4шт.

31519

LOCKING PLATE

WASHER - packing, piston

1шт.

31520

PISTON - cylinder (No "O" ring) (Use D23737, D23688, and A7623)

1шт.

1" - 14 NF hex. lock nut (D131-19)

1шт.

31525

WIPER SEAL

- wiper, piston rod

1шт.

31526

PACKING

- piston

1шт.

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, , seal, piston rod 2.75", Int, #275

1шт.

31539

WASHER

- piston rod packing (1/8" thick) See D25044

1шт.

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL - "O" ring, cylinder tube

2шт.

36770

CYLINDER - crowd, hydraulic (Complete)

1шт.

36771

TUBE - cylinder

1шт.

36778

FORK

ROD - tie

4шт.

5/8" - 18 NF hex. lock nut (D131-154)

8шт.

73348

CAP - cylinder end (When replacing cap using 31539 washer - 1/8" thick, also order 1-D25044 wahser - 1/4" thick)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24988 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

D20037

END - cylinder (Includes 2-30613 bushings)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24988 backup ring, as replacement end or cap has .210" wide O-ring groove.

1шт.

1/8" NPT straight grease fitting (Lincoln #5000)

1шт.

D20042

ROD - piston (Includes 2-30613 bushings)

1шт.

1/8" NPT straight grease fitting (Lincoln #5000)

1шт.

D23688

X

NUT - lock, D23737 piston only (1" - 14 NF)

1шт.

D23737

PISTON - cylinder (With "O" ring) (When replacing 31520 piston without "O" ring, also order 1-A7623 "O" ring and 1-D23688 nut)

1шт.

D24988

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove) See D25496

2шт.

D25044

WASHER

- piston rod packing (1/4" thick) See 31539

1шт.

D25496

BACK-UP RING

RING - plastic backup (Used only with end or cap that has .185" wide "O" ring groove) See D24988

2шт.
