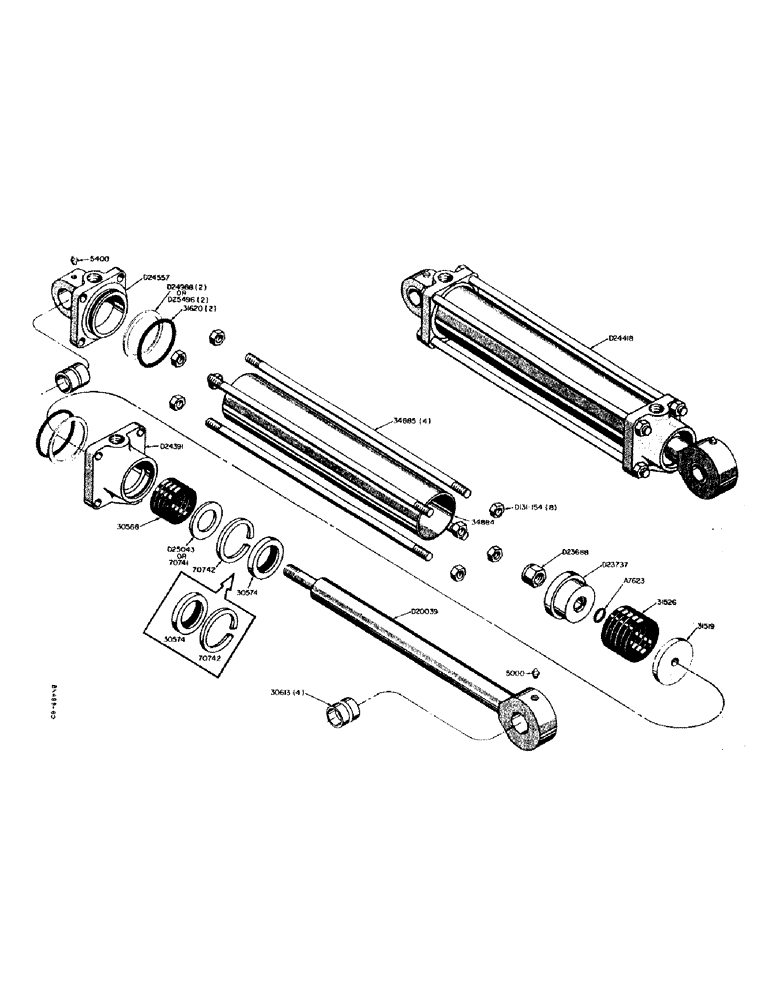

Запчасти Case 310 (48) - D24418 HYDRAULIC BOOM CYLINDER (OPTIONAL - 4" DIA.)

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

30568

PACKING

- piston rod

1шт.

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end and piston rod yoke

4шт.

31519

LOCKING PLATE

WASHER - packing, piston

1шт.

31526

PACKING

- piston

1шт.

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL - "O" ring, cylinder tube

2шт.

34884

CABLE PULLING GRIP,3.995" ID, 4.387" OD, 38.447" Length

TUBE - cylinder

1шт.

34885

ROD - tie

4шт.

5/8" - 18 NF hex. lcok nut (D131-154)

8шт.

70741

X

WASHER - packing, piston rod (1/8" thick) See D25043

1шт.

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

D20039

ROD - piston (Includes 2-30613 bushings)

1шт.

1/8" NPT straight grease fitting (Lincoln #5000)

1шт.

D23688

X

NUT - lock, piston (1" - 14 NF)

1шт.

D23737

PISTON - cylinder

1шт.

D24391

CAP - cylinder end (When replacing cap with 1/8" thick washer (70741) also order 1-D25043 washer (1/4" thick)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24988 backup ring, as replacement end or cap will have .210" wide O-ring groove.

1шт.

D24418

CYLINDER - boom, hydraulic (4" O.D.) (Complete)

1шт.

D24557

END - cylinder (Includes 2-30613 bushings)

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24988 backup ring, as replacement end or cap will have .210" wide O-ring groove.

1шт.

1/8" NPT, 90 degrees grease fitting (Lincoln #5400)

1шт.

D24988

RING

- leather backup (Used only with cylinder end or cap which has .210" wide "O" ring groove) See D25496

2шт.

D25043

WASHER

- packing, piston rod (1/4" thick) See 70741

1шт.

D25496

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap which has .185" wide "O" ring groove) See D24988

2шт.
