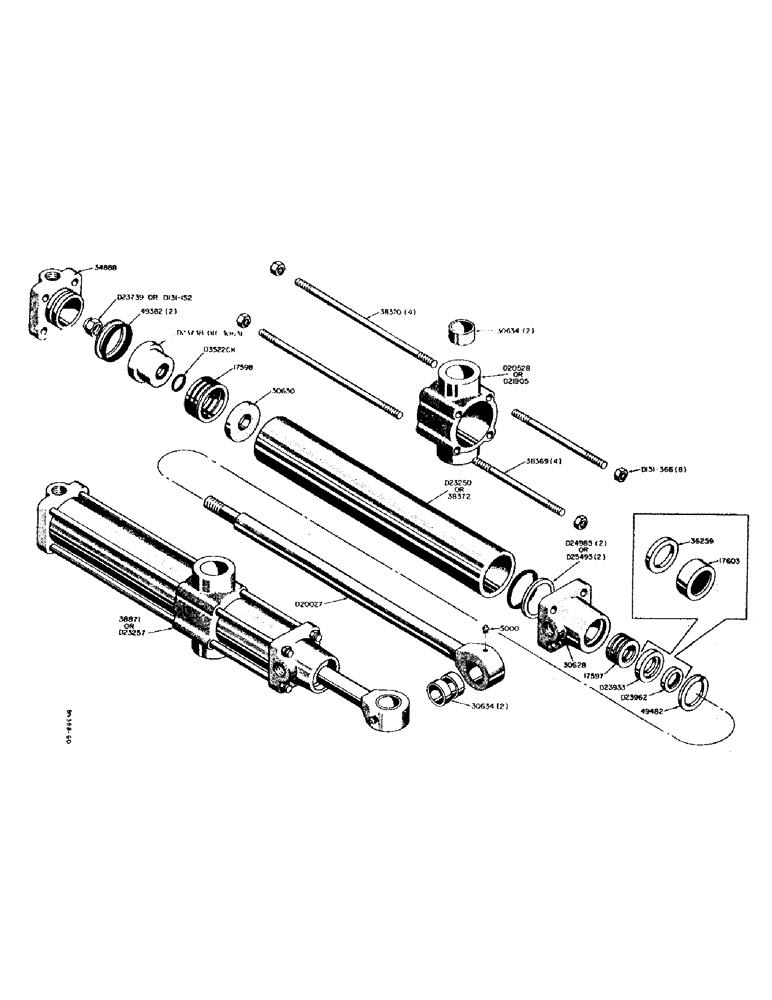

Запчасти Case 310 (42) - HYDRAULIC SWING CYLINDERS

38871

CYLINDER - swing, hydraulic (Complete) Use D23257

2шт.

D23257

CYLINDER - swing, hydraulic (Complete)

2шт.

O3522CK

X

SEAL - "O" ring, piston rod (Used with D23738 piston only), parts for swing

1шт.

17597

PACKING

- piston rod, parts for swing

1шт.

17598

PACKING

- piston, parts for swing

1шт.

17603

WIPER SEAL

- wiper, piston rod (Use D23962 and D23933), parts for swing

1шт.

30628

CAP - end, cylinder, parts for swing

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24985 backup ring, as replacement end has .210" wide O-ring groove.

1шт.

30630

CARTRIDGE

WASHER - packing, piston, parts for swing

1шт.

30631

X

PISTON - cylinder (No "O" ring) (Use D23738, D23739 amd O3522CK), parts for swing

1шт.

3/4" - 16 NF hex. lock nut (D131-152), parts for swing

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod yoke and trunnion, parts for swing

4шт.

34888

END

- cylinder, parts for swing

1шт.

When replacing cylinder end or cap that has .185" wide O-ring groove, also order D24985 backup ring, as replacement end has .210" wide O-ring groove.

1шт.

36259

WASHER

- piston rod packing (Use D23962 and D23933), parts for swing

1шт.

38369

ROD - tie, short, parts for swing

4шт.

3/8" - 24 NF hex. lock nut (D131-366), parts for swing

4шт.

38370

ROD - tie, long, parts for swing

4шт.

3/8" - 24 NF hex. lock nut (D131-366), parts for swing

4шт.

38372

TUBE - cylinder (3" O.D. - 38871 cylinder only) See D23250, parts for swing

1шт.

Measure the outside of the cylinder tube. D23257 cylinder has 2-7/8" OD tube; whereas 38871 cylinder has 3" OD tube.

1шт.

86982912

O-RING

SEAL - "O" ring, cylinder ends to tube, parts for swing

2шт.

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod, parts for swing 2.125", Int, #212

1шт.

D20027

ROD - piston (Includes 2-30634 bushings), parts for swing

1шт.

1/8" NPT straight grease fitting (Lincoln #5000), parts for swing

1шт.

D20528

TRUNNION - hydraulic cylinder (For 3" O.D. cylinder tube only) (Includes 2-30634 bushings), parts for swing

1шт.

Measure the outside of the cylinder tube. D23257 cylinder has 2-7/8" OD tube; whereas 38871 cylinder has 3" OD tube.

1шт.

D21905

TRUNNION - hydraulic cylinder (For 2-7/8" O.D. cylinder tube only) (Includes 2-30634 bushings), parts for swing

1шт.

Measure the outside of the cylinder tube. D23257 cylinder has 2-7/8" OD tube; whereas 38871 cylinder has 3" OD tube.

1шт.

D23250

TUBE - cylinder (2-7/8" O.D. - D23257 cylinder only) See 38372, parts for swing

1шт.

Measure the outside of the cylinder tube. D23257 cylinder has 2-7/8" OD tube; whereas 38871 cylinder has 3" OD tube.

1шт.

D23738

BLOCK

PISTON - cylinder (With "O" ring) (When replacing 30631 piston without "O" ring, also order 1-O3522CK "O" ring and 1-D23739 lock nut), parts for swing

1шт.

D23739

LOCK NUT

NUT - lock, D23738 piston only (3/4" - 16 NF), parts for swing

1шт.

D23933

GLAND

- seal, wiper (Also order 1-D23962 seal when replacing 36259 washer), parts for swing

1шт.

D23962

SEAL

- wiper, piston rod (Also order 1-D23933 gland when replacing 17603 seal), parts for swing

1шт.

D24985

RING

- leather backup (Used only with cylinder end or cap that has .210" wide "O" ring groove) See D25493, parts for swing

2шт.

D25493

BACK-UP RING

RING - plastic backup (Used only with cylinder end or cap that has .185" wide "O" ring groove) See D24985, parts for swing

2шт.
