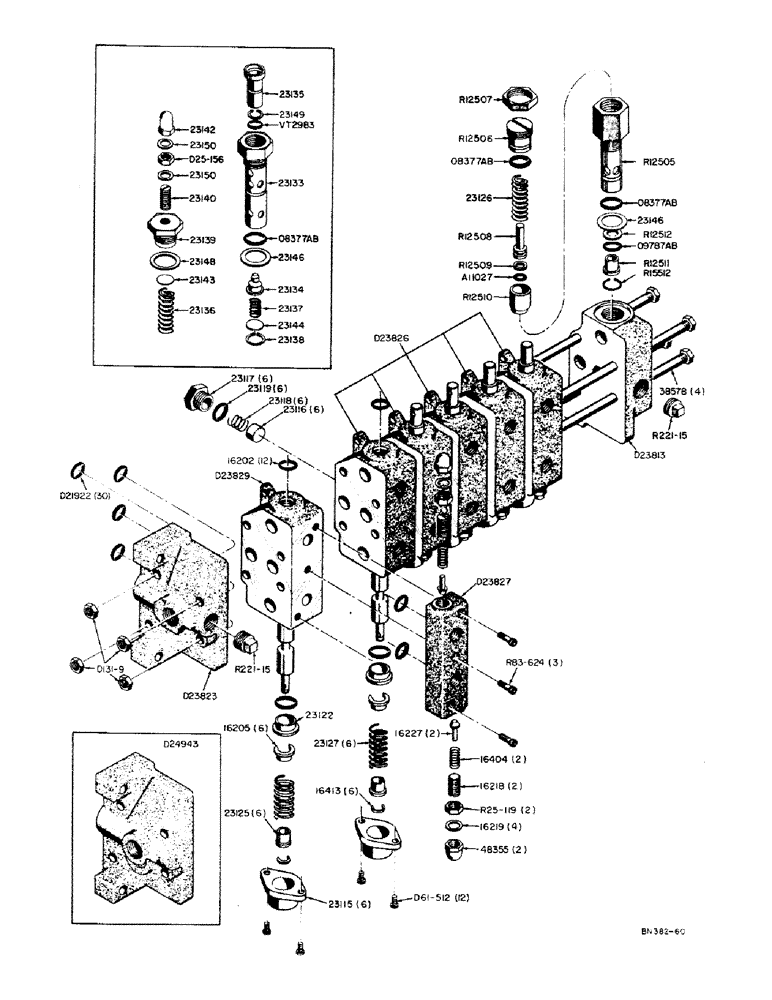

Запчасти Case 310 (36) - D23812 AND D24433 HYDRAULIC CONTROL VALVES

38578

SOCKET WRENCH

STUD - valve tie (1/2" - 20 NF x 16-3/4")

4шт.

1/2" - 20 NF lock nut (D131-9)

4шт.

D21922

O-RING

SEAL - "O" ring, valve body

30шт.

D23812

VALVE

- control, hydraulic (Complete) (Used on models without high pressure carry-over line) See D24433

1шт.

D23812 and D24433 valves are identical except for outlet sections. D23812 valve is used on machines without high pressure carry-over line to reservoir.

1шт.

D23813

SECTION - inlet, control valve (Includes 1-R14175 main relief valve - early production includes 1-23130 relief valve) (See below for breakdown)

1шт.

3/4" NPT pipe plug, ext. sq. hd. (R221-15)

1шт.

D23823

SECTION - outlet, D23812 valve only (Includes 4-D21922 "O" ring) See D24943

1шт.

3/4" NPT pipe plug, ext. sq. hd. (R221-15)

1шт.

D23825

SECTION - swing cylinder (Includes 1-D23827 swing cylinder relief valve and 1-D23829 swing cylinder section) (See below for breakdown)

1шт.

D23826

SECTION - stabilizer (2), boom, crowd, and bucket cylinders (Includes 4-D21922 "O" rings) (See below for breakdown)

5шт.

D23827

VALVE - relief, swing cylinders (Includes 2-D21922 "O" rings) (See below for breakdown)

1шт.

D23829

SECTION - swing cylinders (Includes 4-D21922 "O" rings) (See below for breakdown)

1шт.

D24433

VALVE

- control, hydraulic (Complete) (Used on models with high pressure carry-over line) See D23812

1шт.

D23812 and D24433 valves are identical except for outlet sections. D24433 valve is used on machines with high pressure carry-over line to reservoir.

1шт.

D24943

SECTION - outlet, D24433 valve only (Includes 4-D21922 "O" rings) See D23823

1шт.

3/4" NPT pipe plug, ext. sq. hd. (R221-15)

1шт.

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring, valve spool, D23829 swing cylinder section

2шт.

16205

RETAINER - spring, spool centering, D23829 swing cylinder section

1шт.

NLS

NO LONGER SERVICED

- spring guide, spool centering, D23829 swing cylinder section

1шт.

23115

HYDRAULIC HOSE

CAP - valve spool, D23829 swing cylinder section

1шт.

5/16" - 18 x 3/4" NC socket hd. cap screw (D61-512), D23829 swing cylinder section

2шт.

23116

HYDRAULIC HOSE

POPPET - check valve, valve section, D23829 swing cylinder

1шт.

23117

HYDRAULIC HOSE

CAP - check valve, valve section, D23829 swing cylinder

1шт.

23118

HYDRAULIC HOSE

SPRING - poppet, check valve, D23829 swing cylinder section

1шт.

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring, check valve, D23829 swing cylinder section

1шт.

23122

HYDRAULIC HOSE

RETAINER - "O" ring seal, valve spool, D23829 swing cylinder section

1шт.

23125

HYDRAULIC HOSE

GUIDE - spring, spool centering, D23829 swing cylinder section

1шт.

23127

SPRING

- spool centering, D23829 swing cylinder section

1шт.

D21922

O-RING

SEAL - "O" ring, valve body, D23829 swing cylinder section

4шт.

D23829

SECTION - swing cylinders (Includes 4-D21922 "O" rings) D23829 section

1шт.

NLS

NO LONGER SERVICED

SCREW - adjusting, swing cylinder relief valve, D23827

2шт.

9/16" - 18 NF hex. nut (R25-119), D23827 swing cylinder relief valve

2шт.

16219

GASKET

- jam nut and cap nut (Copper and lead), D23827 swing cylinder relief valve

4шт.

16227

HOSE

POPPET - relief valve, D23827 swing cylinder

2шт.

NLS

NO LONGER SERVICED

SPRING - poppet, relief valve, D23827 swing cylinder

2шт.

48355

NUT - acorn, hex. (9/16" - 18 NF), D23827 swing cylinder relief valve

2шт.

D21922

O-RING

SEAL - "O" ring, valve body, D23827 swing cylinder relief

2шт.

D23827

SECTION - relief valve, swing cylinder (Includes 2-D21922 "O" rings), D23827

1шт.

3/8" - 16 x 1-1/2" NC socket hd. cap screw (R83-624), D23827 swing cylinder relief valve

3шт.

16202

O-RING,40544" ID x 13" OD x 1"

SEAL - "O" ring, valve spool, D23826 (2), boom, crowd, and bucket cylinder control valve sections

2шт.

16205

RETAINER - spring, spool centering, D23826 (2), boom, crowd, and bucket cyinder control valve sections

1шт.

16413

HOSE

- spring guide, spool centering, D23826 (2), boom, crowd, and bucket cylinder control valve sections

1шт.

23115

HYDRAULIC HOSE

CAP - valve spool, D23826 (2), boom, crowd, and bucket cylinder control sections

1шт.

5/16" - 18 x 3/4" NC socket hd. cap screw (D61-512), D23826 (2), boom, crowd, and bucket cylinder control valve sections

2шт.

23116

HYDRAULIC HOSE

POPPET - check valve, valve section, D23826 (2), boom, crowd, and bucket cylinder control

1шт.

23117

HYDRAULIC HOSE

CAP - check valve, valve section, D23826 (2), boom, crowd, and bucket cyinder control

1шт.

23118

HYDRAULIC HOSE

SPRING - poppet, check valve, D23826 (2), boom, crowd, and bucket cylinder control

1шт.

23119

O-RING,0.921" ID x 1.199" OD x 0.139"

SEAL - "O" ring, check valve cap, D23826 (2), boom, crowd, and bucket cylinder control

1шт.

23122

HYDRAULIC HOSE

RETAINER - "O" ring seal, valve spool, D23826 (2), boom, crowd, and bucket cylinder control

1шт.

23125

HYDRAULIC HOSE

GUIDE - spring, spool centering, D23826 (2), boom, crowd, and bucket cylinder control valve sections

1шт.

23127

SPRING

- spool centering, D23826 (2), boom, crowd, and bucket cylinder control valve sections

1шт.

D21922

O-RING

SEAL - "O" ring, valve body, D23826 (2), boom, crowd, and bucket cylinder control sections

4шт.

D23826

SECTION - stabilizer (2), boom, crowd and bucket cylinders, control valve (Complete)

5шт.

A11027

GASKET

SEAL - "O" ring, floating seat, D23826 (2), boom, crowd, and bucket cylinder control valve sections

1шт.

O8377AB

X

SEAL - "O" ring, relief valve cartridge, D23826 (2), boom, crowd, and bucket cylinder control sections

2шт.

O9787AB

X

SEAL - "O" ring, backup ring, D23826 (2), boom, crowd, and bucket cylinder control valve sections

1шт.

23126

HYDRAULIC HOSE

SPRING - compression, plunger, D23826 (2), boom, crowd, and bucket cylinder control valve sections

1шт.

23146

WASHER

- fibre, relief valve shell, D23826 (2), boom, crowd, and bucket cylinder control valve sections

1шт.

R12505

SHELL - cartridge, releif valve, D23826 (2), boom, crowd, and bucket cylinder control sections

1шт.

R12506

SCREW - spring adjusting, relief valve, D23826 (2), boom, crowd, and bucket cylinder control sections

1шт.

R12507

LOCK NUT

- lock, spring adjusting screw, D23826 (2), boom, crowd, and bucket cylinder control valve sections

1шт.

R12508

PLUNGER - displacement, floating seat, D23826 (2), boom, crowd, and bucket cylinder control valve sections

1шт.

R12509

RING

- backup, displacement plunger, D23826 (2), boom, crowd, and bucket cylinder control valve sections

1шт.

R12510

SEAT

- floating valve, D23826 (2), boom, crowd, and bucket cylinder control sections

1шт.

R12511

POPPET

- relief valve, D23826 (2), boom, crowd, and bucket cylinder control sections

1шт.

R12512

OIL SEAL

RING - backup, poppet, D23826 (2), boom, crowd, and bucket cylinder control sections

1шт.

R14175

CARTRIDGE - relief valve, complete, D23826 (2), boom, crowd, and bucket cylinder control sections

1шт.

R15512

SNAP RING,#87, .929", Int, Spiral

- poppet retaining, D23829 (2), boom, crowd, and bucket cylinder control valve sections

1шт.

O8377AB

X

SEAL - "O" ring, relief valve cartridge, 23130 main cartridge, D23812 valve only (early production - see R14175)

1шт.

VT2983

X

SEAL - "O" ring, valve seat, 23130 main relief cartridge, D23812 only (early production - see R14175)

1шт.

23130

CARTRIDGE - relief valve, complete (Use R14175), 23130 main cartridge, D23812 only (early prodution - see R14175)

1шт.

23133

HYDRAULIC HOSE

SHELL - cartridge, relief valve, 23130 main, D23812 only ( early production - see R14175)

1шт.

23134

HYDRAULIC HOSE

POPPET - relief valve, 23130 main cartridge, D23812 only (early production - see R14175)

1шт.

23135

HYDRAULIC HOSE

SEAT - floating valve, 23130 main relief cartridge, D23812 only (early production - see R14175)

1шт.

23136

SPRING

- seat, 23130 main relief valve cartridge, D23812 valve only (early production - see R14175)

1шт.

23137

VALVE SPRING

SPRING - poppet, 23130 main relief valve cartridge, D23812 valve only (early production - see R14175)

1шт.

23138

O-RING

SNAP RING - poppet retaining, 23130 main relief valve cartridge, D23812 valve only (early production - see R14175)

1шт.

23139

GASKET

CAP - valve, 23130 main relief cartridge, D23812 only (early production - see R14175)

1шт.

23140

STUD

SCREW - spring adjusting, relief valve, 23130 main cartridge, D23812 only (early production - see R14175)

1шт.

3/8" - 24 NF jam nut (D25-156), 23130 main relief valve cartridge, D23812 valve only

1шт.

NLS

NO LONGER SERVICED

ACORN NUT - adjusting screw cap, 23130 main relief valve cartridge, D23812 valve only (early production - see R14175)

1шт.

23143

WASHER

- relief valve spring, 23130 main cartridge, D23812 only (early production - see R14175)

1шт.

23144

THREADED TIE-ROD

WASHER - poppet spring, 23130 main relief valve cartridge, D23812 only (early production - see R14175)

1шт.

23146

WASHER

- fibre, relief valve shell, 23130 main cartridge, D23812 only (early production - see R14175)

1шт.

23148

SEAL

WASHER - fibre, relief valve cap, 23130 main cartridge, D23812 only (early production - see 14175)

1шт.

23149

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1 1/2"

RING - backup, "O" ring, 23130 main relief valve cartridge, D23812 only (early production - see 14175)

1шт.

23150

WASHER

- adjusting screw nuts (Copper), 23130 main relief valve cartridge, D23812 only (early production - see R14175)

2шт.
