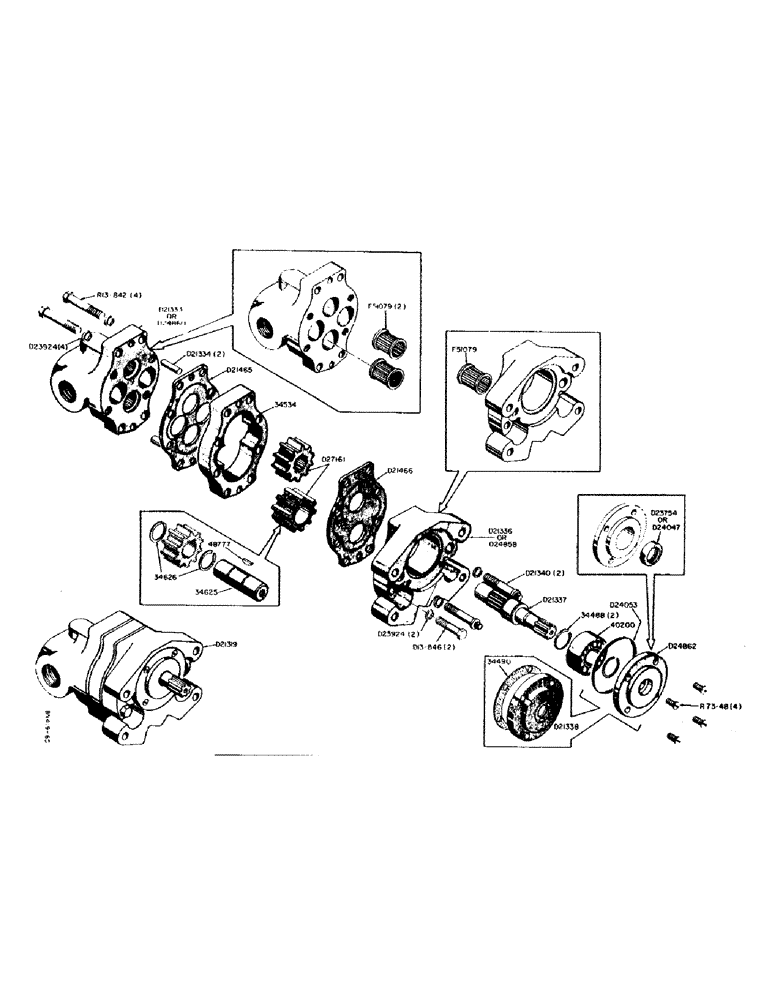

Запчасти Case 310 (32) - D21319 HYDRAULIC PUMP (19 G.P.M.)

F51079

NEEDLE BEARING

BEARING - needle (Torrington #JH-1616-OH)

3шт.

34488

RING, SNAP

SNAP RING - bearing retaining

2шт.

34490

SPRING

GASKET - pilot plate (Code D9 and earlier pumps only) See D24053

1шт.

34534

CAM

PLATE - gear

1шт.

34625

GUARD

SHAFT - idler gear

1шт.

34626

RING, SNAP

SNAP RING - idler gear

2шт.

40200

BEARING ASSY,1.1811" ID x 2.4409" OD x 0.9375"

- ball, drive shaft (N.D. #5206)

1шт.

48777

X

KEY - Woodruff, idler gear

1шт.

D21319

PUMP - hydraulic (Complete) Webster #2XESI-L

1шт.

D21333

COVER - pump (Includes 2-F51079 needle bearings) (Code D9 and earlier pumps only) See D24860

1шт.

1/2" - 13 x 2-5/8" NC hex. hd. cap screw (R13-842)

4шт.

D21334

PIN - dowel, pump cover and gear plate

2шт.

D21336

X

BODY - pump (Includes 1-F51079 needle bearing) (Code D9 and earlier pumps only) Use D24858, D24053, and D24862

1шт.

1/2" - 13 x 2-5/8" NC hex. hd. cap screw (D13-846)

2шт.

D21337

SHAFT - pump drive

1шт.

D21338

PLATE

- pilot (Includes 1-D4047 seal and 1-34490 gasket) (Code D9 and earlier pumps only) See D24862

1шт.

1/4" - 20 x 1/2" NC flat hd. machine screw (R73-48)

4шт.

D21340

X

SCREW - body (1/2" - 13 x 3" NC counterbone head)

2шт.

D21465

PLATE - wear, pump cover to gear plate

1шт.

D21466

PLATE - wear, pump body to gear plate

1шт.

D23754

X

SEAL - oil, drive shaft (Double lip) (Code D9 and earlier pumps only) Use D24047

1шт.

D23924

WASHER - lock

6шт.

D24047

SEAL

- oil, drive shaft (Double lip)

1шт.

D24053

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

SEAL - "O" ring, pilot plate to body (See 34490)

1шт.

D24858

BODY - pump (Includes 1-F51079 needle bearing) (Code E9 and later pumps only) See D21336

1шт.

D24860

COVER - pump (Includes 2-F51079 needle bearings) (Code E9 and later pumps only) See D21333

1шт.

D24862

PLATE

- pilot (Includes 1-D24047 seal) (Code E9 and later pumps only) See D21338

1шт.

1/4" - 20 x 1/2" NC flat hd. machine screw (R73-48)

4шт.

D27161

X

GEARS - set of, drive and driven

1шт.
