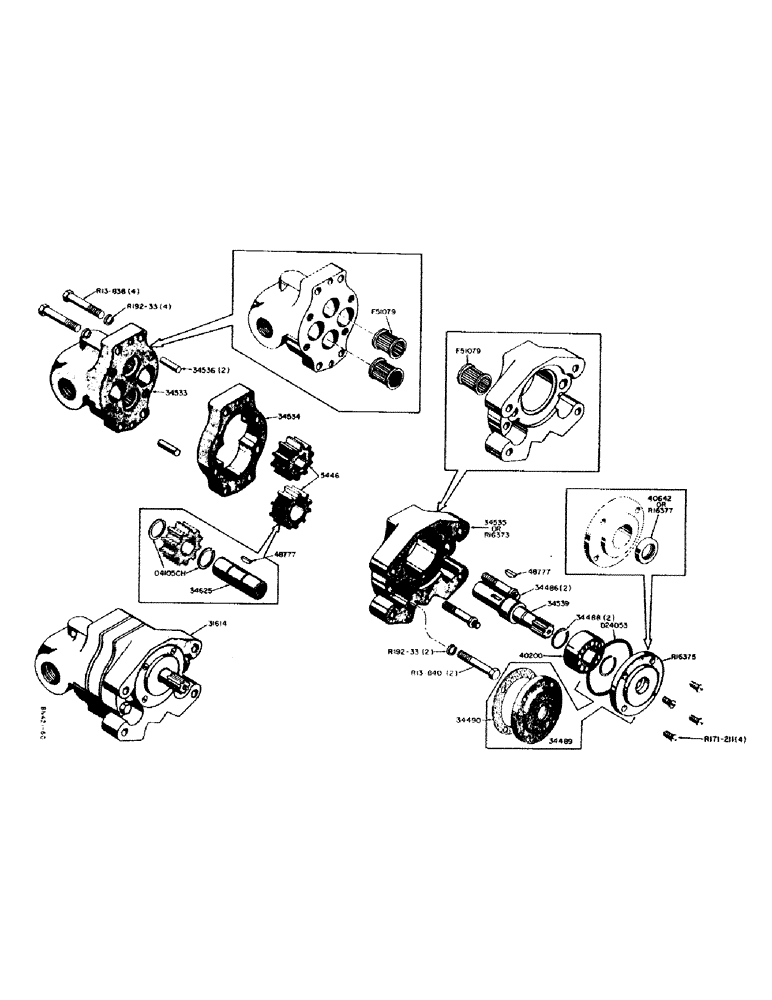

Запчасти Case 310 (30) - 31614 HYDRAULIC PUMP (19 G.P.M.)

F51079

NEEDLE BEARING

BEARING - needle (Torrington #JH-1616-OH)

3шт.

O4105CH

SNAP RING - driven gear

2шт.

5446

GEAR-SET

GEARS - set of, drive and driven

1шт.

31614

PUMP - hydraulic, complete (Webster 2 HES 1 L) (Service provided on component parts only - use D21319 or D26066)

1шт.

27857R1

SCREW,12 Pt Flg, 1/2" - 13 x 2 3/4"

- counterbone, special (1/2" - 13 x 2-3/4" NC)

2шт.

34488

RING, SNAP

SNAP RING - retaining, bearing

2шт.

34489

PLATE - pilot (Includes 1-34490 gasket and 1-4062 oil seal) (Code D9 and earlier pumps only) See R16375

1шт.

1/4" - 20 x 1-1/2" NC flat hd. machine screw (R171-211)

4шт.

34490

SPRING

GASKET - pilot plate (Code D9 and earlier pumps only) See D24053

1шт.

34533

COVER - front (Includes 2-F51079 needle bearings)

1шт.

1/2" - 13 x 2-3/8" NC hex. hd. cap screw (R13-838)

4шт.

1/2" lockwasher (R192-33)

4шт.

34534

CAM

PLATE - gear

1шт.

34535

X

BODY - pump (Includes 1-F51079 needle bearing) (Use R16373, R16375, and D24053) (Code D9 and earlier pumps only)

1шт.

34536

PIN - dowel, pump body

2шт.

NLS

NO LONGER SERVICED

SHAFT - pump drive

1шт.

34625

GUARD

SHAFT - driven gear

1шт.

40200

BEARING ASSY,1.1811" ID x 2.4409" OD x 0.9375"

- ball, drive shaft (N.D. #5206)

1шт.

40642

RICE TOOTH

- drive shaft (Code D9 and earlier pumps only) See R16377

1шт.

48777

X

KEY - Woodruff, drive and driven gears

2шт.

D24053

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

SEAL - "O" ring, pilot plate (Code E9 and later pumps) See 34490

1шт.

R16373

BODY - pump (Includes 1-F51079 needle bearing) (Code E9 and later pumps only)

1шт.

1/2" - 13 x 2-1/2" NC hex. hd. cap screw (R13-840)

2шт.

1/2" lockwasher (R192-33)

2шт.

R16375

PLATE - pilot (Includes 1-R16377 oil seal) (Code E9 and later pumps only) See 34489

1шт.

R16377

X

OIL SEAL - drive shaft (Code E9 and later pumps only) See 40642

1шт.
