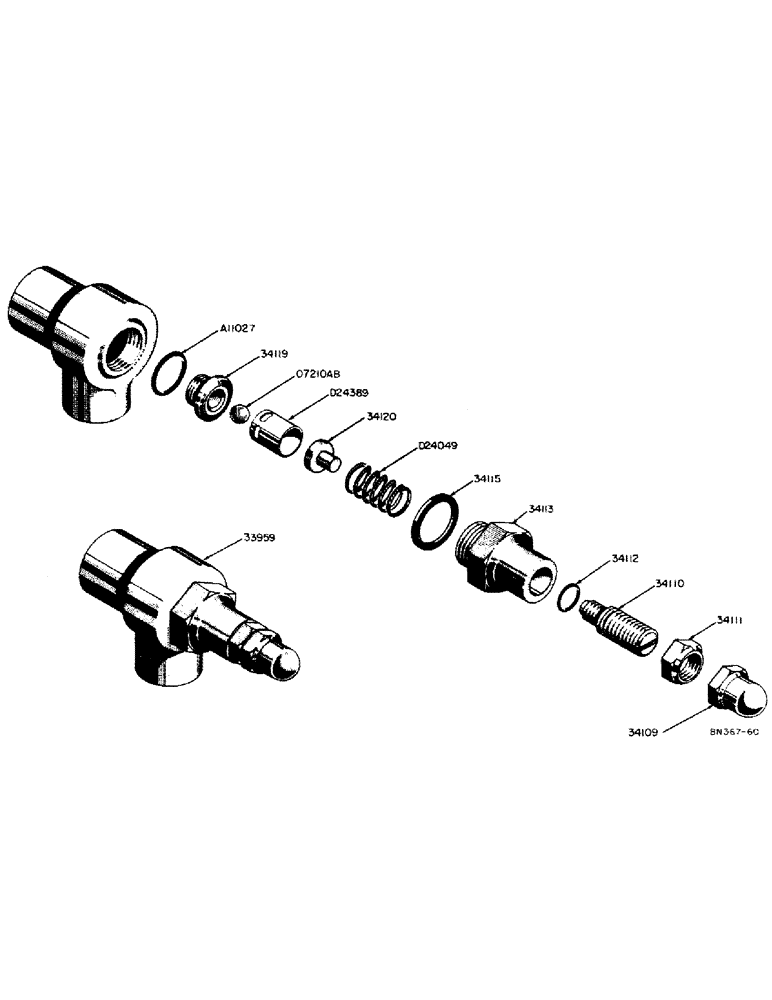

Запчасти Case 310 (28) - 33959 SPECIAL RELIEF VALVE

A11027

GASKET

SEAL - "O" ring, valve seat

1шт.

O7210AB

X

BALL - relief valve

1шт.

O8416AB

X

SEAL - "O" ring, valve seat (Use A11027)

1шт.

33959

PIPE FITTING

VALVE - relief, boom drop pressure (Complete) (Use D24452, see figure 29)

1шт.

34109

NUT - cap, hex.

1шт.

34110

ADJUSTMENT SCREW

- adjusting

1шт.

34111

X

NUT - hex. jam

1шт.

34112

CLIP

SEAL - "O" ring, adjusting screw

1шт.

34113

BODY

CAP - body

1шт.

34114

VALVE, PRESSURE RELI

SPRING - relief valve (Use D24049)

1шт.

34115

GASKET

- bocy cap

1шт.

34117

X

BALL - relief valve (Use O7210AB)

1шт.

34118

X

SEAL - "O" ring, valve seat (Use A11027)

1шт.

34119

SEAT, VALVE

SEAT - valve

1шт.

CAS34120

BUSHING

SPACER - spring

1шт.

D24049

VALVE SPRING

SPRING - relief valve

1шт.

D24389

COLLAR - seat jam (If used)

1шт.
