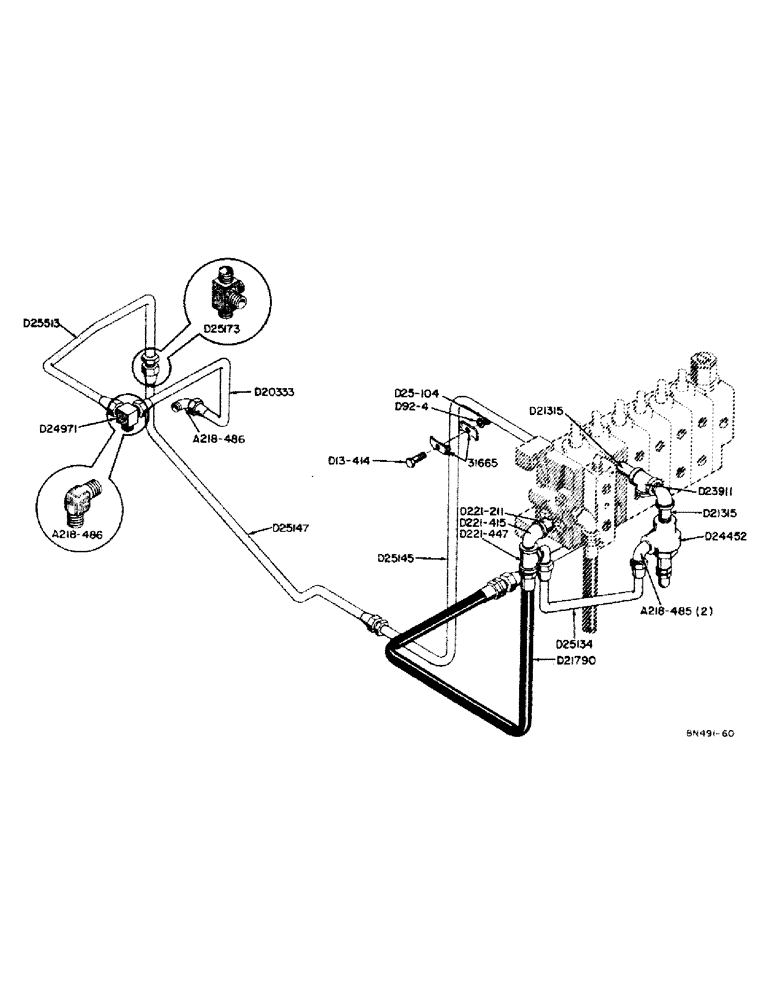

Запчасти Case 310 (26) - HIGH PRESSURE CARRY-OVER HYDRAULICS

31665

COLLAR CLAMP

CLAMP - D25145 tube

2шт.

1/4" - 20 x 7/8" NC hex. hd. cap screw (D13-414)

1шт.

1/4" lockwasher (D92-4)

1шт.

1/4" - 20 NC hex. nut (D25-104)

1шт.

D20333

TUBE - control valve outlet to reservoir (Dozer model only)

1шт.

D21315

NIPPLE - pipe, control valve to tee; also tee to relief valve (1/2" NPT x 3-1/2")

2шт.

D21790

HOSE

- high pressure carry-over, valve to tube (3/4" I.D. x 1-5/32" O.D. x 31" long)

1шт.

3/4" NPT x 1/2" NPT pipe tee (D221-447)

1шт.

3/4" NPT street elbow, 90 degrees (D221-415)

1шт.

3/4" NPT x 1-1/8" pipe nipple (D221-211)

1шт.

D23911

FITTING

TEE - boom down pressure line (1/2" NPT)

1шт.

D24452

VALVE

- relief, boom down pressure (See figure 29 for breakdown)

1шт.

D24971

TEE - lateral, top of filter (Dozer model only)

1шт.

D25134

TUBE - relief valve to high pressure carry-over line

1шт.

5/8" JIC x 1/2" NPT elbow (A218-485)

2шт.

D25145

TUBE - high pressure carry-over, rear section

1шт.

D25147

TUBE - high pressure carry-over, center section

1шт.

D25173

TEE - side outlet (Loader model only)

1шт.

D25513

TUBE - high pressure carry-over, front section (Dozer model only)

1шт.

A218-486

ELBOW - 90 degrees male (3/4" NPT x 3/4" JIC)

2шт.
