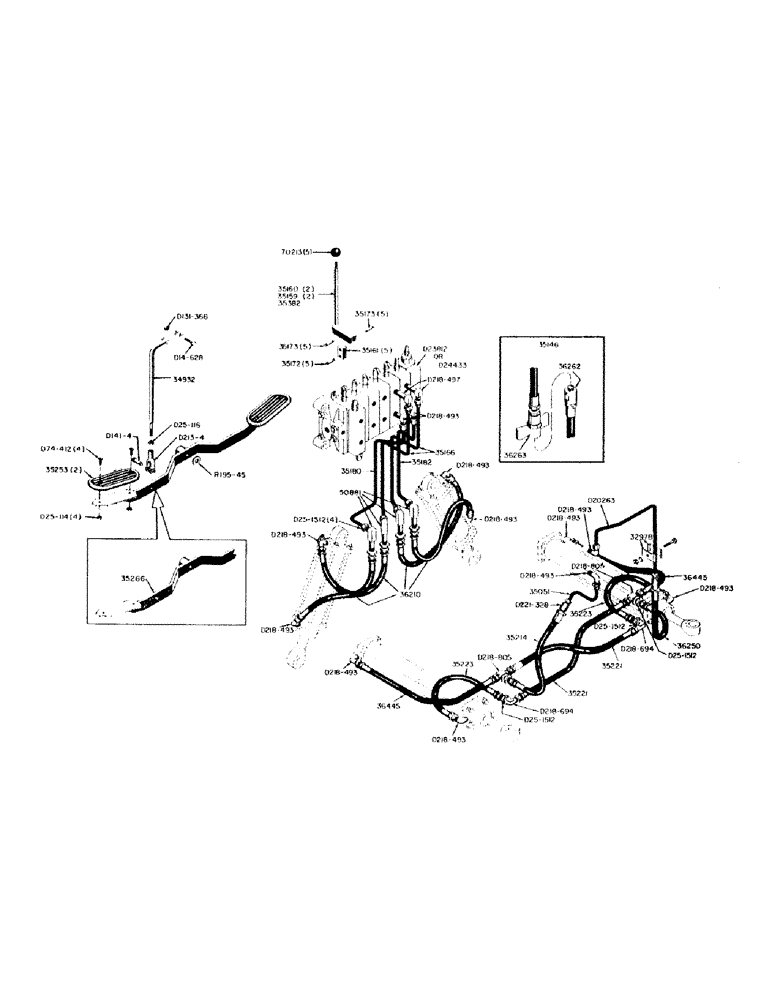

Запчасти Case 310 (16) - SWING CYLINDER AND STABILIZER CYLINDER HYDRAULICS

34932

ROD - control, swing cylinders

1шт.

3/8" - 24 NF hex. nut (D25-116)

1шт.

3/8" - 24 x 1-3/4" NF hex. hd. cap screw (D14-628)

1шт.

3/8" - 24 NF hex. lock nut (D131-366)

1шт.

35159

LEVER - valve, dipper arm and bucket control (9-3/4" long)

2шт.

35160

WASHER

LEVER - valve, stabilizer control (8-1/2" long)

2шт.

35161

LINK - valve lever

5шт.

35172

PIN - valve to lever link

5шт.

3/32" x 5/8" cotter pin (D132-25)

10шт.

35173

PIN

- valve, Serial Range: lever-link

10шт.

3/32" x 5/8" cotter pin (D132-25)

20шт.

35253

NUT

PEDAL - rubber, swing control bar

2шт.

1/4" - 28 x 3/4" NF hex. hd. cap screw (D74-412)

4шт.

1/4" - 28 NF hex. nut (D25-114)

4шт.

35266

BAR - control, swing cylinders

1шт.

1/2" SAE wrought washer (R195-45)

1шт.

3/16" x 1-1/4" cotter pin (D132-93)

1шт.

3/8" - 24 NF rod yoke, swing cylinders control (D213-4)

1шт.

3/8" x 1-7/32" pin, D213-4 yoke (D141-4)

1шт.

3/32" x 3/4" cotter pin (D132-26)

1шт.

35382

LEVER - valve, boom control (11-1/4" long)

1шт.

70213

KNOB

- control lever

5шт.

D23812

VALVE

- hydraulic control, backhoe (Used on models not equipped with high pressure carry-over tube) See D24433 (See figure 36 for breakdown)

1шт.

D24433

VALVE

- hydraulic control, backhoe (Used on models equipped with high pressure carry-over tube) See D23812 (See figure 36 for breakdown)

1шт.

32978

PLATE ASSY.

CLAMP - D20263 tube, swing cylinder hydraulics

2шт.

5/16" - 24 x 1-1/2" NF hex. hd. cap screw (D14-254), swing cylinder hydraulics

1шт.

5/16" lockwasher (D92-5), swing cylinder hydraulics

1шт.

5/16" - 24 NF hex. nut (D25-115), swing cylinder hydraulics

1шт.

35051

SPRING CUP

TUBE - control valve lower port, swing cylinder hydraulics

1шт.

1/2" JIC x 1/2" NPT 90 degrees male elbow (D218-493), swing cylinder hydraulics

1шт.

3/8" NPT pipe coupling (D221-328), swing cylinder hydraulics

1-2шт.

35146

DISCONNECT - quick (Includes 1-36262 male half and 1-36263 female half), swing cylinder hydraulics

2шт.

35214

BELT, TRANSMISSION

HOSE - control valve to bulkhead tee (L.H.); also R.H. if quick disconnects are used (1/2" I.D. x 7/8" O.D. x 18" long) See 36250, swing cylinder hydraulics

1-2шт.

1/2" JIC bulkhead tee (D218-805), swing cylinder hydraulics

1-2шт.

3/4" - 16 NF hex. jam nut (D25-1512), swing cylinder hydraulics

2шт.

35221

SPINDLE

HOSE - bulkhead fitting to bulkhead tee (1/2" I.D. x 7/8" O.D. x 26" long), swing cylinder hydraulics

2шт.

1/2" JIC bulkhead fitting, 90 degrees (D218-694), swing cylinder hydraulics

2шт.

3/4" - 16 NF hex. jam nut (D25-1512), swing cylinder hydraulics

2шт.

35223

PLATE

HOSE - to rear port swing cylinder (1/2" I.D. x 7/8" O.D. x 16-1/2" long), hydraulics

2шт.

1/2" JIC x 1/2" NPT 90 degrees male elbow (D218-493), swing cylinder hydraulics

2шт.

36250

SPRING

HOSE - control valve to bulkhead tee (R.H.) (Not used with quick disconnects) See 35214 (1/2" I.D. x 7/8" O.D. x 21" long), swing cylinder hydraulics

1шт.

1/2" JIC bulkhead tee (D218-805), swing cylinder hydraulics

1шт.

3/4" - 16 NF hex. jam nut (D25-1512), swing cylinder hydraulics

1шт.

36262

DISCONNECT - quick, male half (See 35146 and 36263), swing cylinder hydraulics

2шт.

36263

DISCONNECT - quick, female half (See 35146 and 36262), swing cylinder hydraulics

2шт.

36445

HOSE - bulkhead tee to front port swing cylinder (1/2" I.D. x 7/8" O.D. x 27" long), hydraulics

2шт.

1/2" JIC x 1/2" NPT 90 degrees male elbow (D218-493), swing cylinder hydraulics

2шт.

D20263

TUBE - control valve upper port, swing cylinder hydraulics

1шт.

1/2" JIC x 1/2" NPT 90 degrees male elbow (D218-493), swing cylinder hydraulics

1шт.

35166

KEY

TUBE - control valve to stabilizer cylinder top port, hydraulics

2шт.

1/2" JIC x 1/2" NPT 90 degrees male extra long (D218-497), stabilizer cylinder hydraulics

2шт.

NLS

NO LONGER SERVICED

TUBE - lower valve port to lower stabilizer port (L.H.), cylinder hydraulics

1шт.

1/2" JIC x 1/2" NPT 90 degrees male elbow (D218-493), stabilizer cylinder hydraulics

1шт.

35182

TUBE - lower valve port to lower stabilizer port (R.H.), cylinder hydraulics

1шт.

1/2" JIC x 1/2" NPT 90 degrees male elbow (D218-493), stabilizer cylinder hydraulics

1шт.

36210

HOSE

- to stabilizer cylinder (1/2" I.D. x 7/8" O.D. x 21-1/2" long), hydraulics

4шт.

1/2" JIC x 1/2" NPT 90 degrees male elbow (D218-493), stabilizer cylinder hydraulics

4шт.

50881

ELBOW - bulkhead, special (90 degrees), stabilizer cylinder hydraulics

4шт.

3/4" - 16 NF hex. jam nut (D25-1512), stabilizer cylinder hydraulics

4шт.
