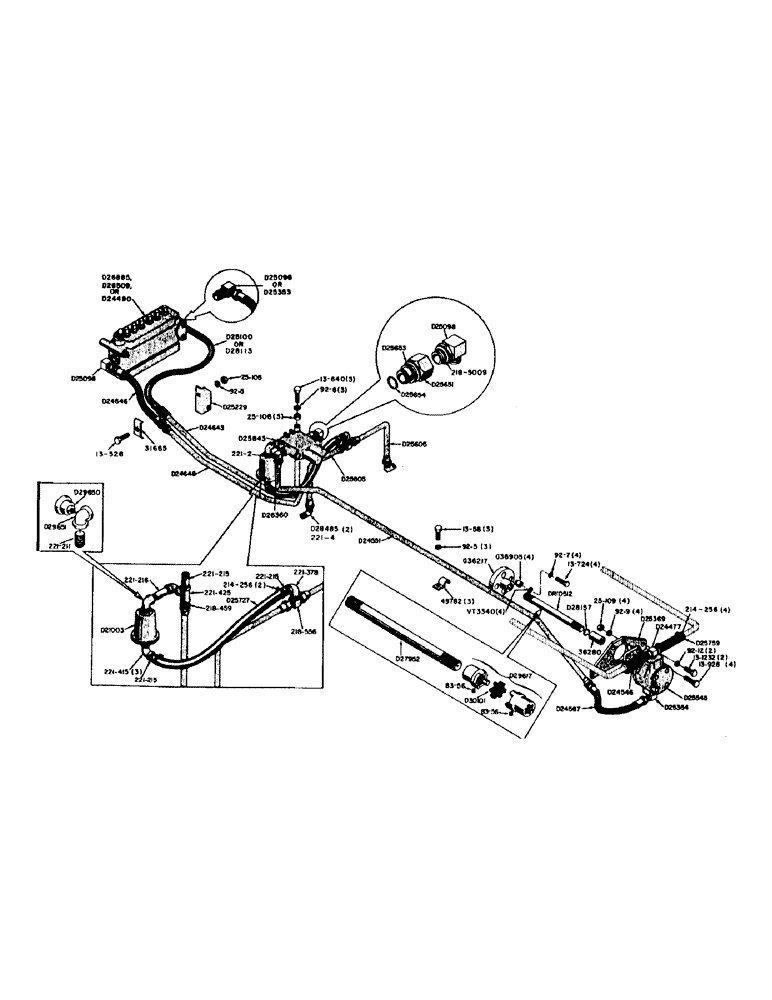

Запчасти Case 31 (030) - BASIC WHEEL BACKHOE HYD. & PUMP DRIVE, BEFORE BACKHOE SN. 4058655

G36217

HUB ASSY.

COUPLING - flexible, pump driveshaft to pulley (Includes 4-G36905 blocks)

1шт.

G36905

BLOCK

AND BUSHING - flexible coupling

4шт.

NSS

NOT SOLD SEPARAT

7/16" - 14 NC x 1-1/2" hex. head cap screw (13-724)

4шт.

NSS

NOT SOLD SEPARAT

7/16" lockwasher (92-7)

4шт.

VT3340

X

WASHER - coupling bolt (29/64" I.D. x 3/4" O.D.)

4шт.

31665

COLLAR CLAMP

CLAMP - plate

1шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC x 1-3/4" hex. head cap screw (13-528)

1шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher (92-5)

1шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC hex. nut (25-105)

1шт.

36280

COUPLING

- pump to driveshaft, snap ring type (For service 1-D29617 coupling and 1-D27952 shaft may be used) See D29617

1шт.

D21003

FILTER

- hydraulic oil (See Figure 111 for breakdown)

1шт.

NSS

NOT SOLD SEPARAT

3/4" NPT x 2" pipe nipple (221-215)

1шт.

NSS

NOT SOLD SEPARAT

3/4" NPT x 90 degrees street elbow (221-415)

2-3шт.

NSS

NOT SOLD SEPARAT

3/4" NPT x 2-1/2" pipe nipple (221-216)

1шт.

NSS

NOT SOLD SEPARAT

3/4" NPT x 1" JIC male adapater (218-459)

1шт.

NSS

NOT SOLD SEPARAT

3/4" NPT pipe tee (221-425)

1шт.

D24477

TEE - 1" JIC, adjustable (D25545 pump)

1шт.

NSS

NOT SOLD SEPARAT

"O" ring, seal D24477 tee (218-5010)

1шт.

D24490

VALVE - backhoe control (Use D26885 backhoe control valve and D26883 criss-cross relief valve) (See Figure 70 for breakdown)

1шт.

D24546

HOSE - suction (1" I.D. x 1-1/2" O.D. x 5-1/2" long)

1шт.

NSS

NOT SOLD SEPARAT

Adjustable hose clamp (214-256)

2шт.

D24551

TUBE - pressure, pump to loader control valve

1шт.

D24567

HOSE ASSY.

HOSE - pressure, pump to tube (3/4" I.D. x 1-5/32" O.D. x 14-1/2" long)

1шт.

D24643

TUBE - low pressure return, backhoe control valve

1шт.

D24646

HOSE ASSY.

HOSE - pressure (3/4" I.D. x 1-5/32" O.D. x 25" long)

1шт.

D24648

TUBE - high pressure to backhoe control valve

1шт.

D25098

ELBOW - 90 degrees adjustable (L.H. side loader valve, R.H. side backhoe valve, and L.H. side of backhoe valve if used) Two male threads (See D25353)

2-3шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25098 elbow (218-5009)

2-3шт.

D25100

HOSE - return (3/4" I.D. x 1-5/32" O.D. x 34" long) Female fitting at both ends of hose (Used in conjunction with D25098 elbow) See D28113

1шт.

D25229

BRACKET - tube mounting

1шт.

D25353

ELBOW - 90 degrees adjustable (L.H. side of backhoe valve) Used in conjunction with D28113 hose (See D25098)

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25353 elbow (218-5009)

1шт.

D25354

ELBOW

- 90 degrees adjustable, pump bottom

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25354 elbow (218-5008)

1шт.

D25369

BRACKET - D25545 pump mounting

1шт.

NSS

NOT SOLD SEPARAT

3/4" - 10 NC x 2" hex. head cap screw (13-1232)

2шт.

NSS

NOT SOLD SEPARAT

3/4" lockwasher (92-12)

2шт.

D25545

PUMP - hydraulic (19 G.P.M.) See Figure 086 for breakdown

1шт.

NSS

NOT SOLD SEPARAT

9/16" - 12 NC x 1-3/4" hex. head cap screw (13-928)

4шт.

NSS

NOT SOLD SEPARAT

9/16" lockwasher (92-9)

4шт.

NSS

NOT SOLD SEPARAT

9/16" - 12 NC hex. nut (25-109)

4шт.

D25605

TUBE

- low pressure, Serial Range: tee-reservoir

2шт.

D25651

SLEEVE

- valve, power beyond tape

1шт.

D25653

GASKET

- sleeve

1шт.

D25654

RING

- quad, sleeve

1шт.

D25727

LARGE HOSE

HOSE - filter to tee (1" I.D. x 1-1/2" O.D. x 21" long)

1шт.

NSS

NOT SOLD SEPARAT

3/4" NPT x 2" pipe nipple (221-215)

2шт.

NSS

NOT SOLD SEPARAT

3/4" NPT 90 degrees street elbow (221-378)

1шт.

NSS

NOT SOLD SEPARAT

3/4" NPT x 3/4" JIC tee (218-556)

1шт.

NSS

NOT SOLD SEPARAT

Adjustable hose clamp (214-256)

2шт.

D25759

HOSE

- suction (1" I.D. x 1-1/2" O.D. x 7-1/2" long)

1шт.

NSS

NOT SOLD SEPARAT

Adjustable hose clamp (214-256)

2шт.

D25843

VALVE - loader control (See model "31" loader parts catalog for breakdown)

1шт.

NSS

NOT SOLD SEPARAT

3/8" - 16 NC x 2-1/2" hex. head cap screw (13-640)

3шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher (92-6)

3шт.

NSS

NOT SOLD SEPARAT

3/8" - 16 NC hex. nut (25-106)

3шт.

D26360

TEE - service, loader control valve (When replacing tee without pipe plug, also order 1-221-2 plug)

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D26360 tee (218-5009)

1шт.

NSS

NOT SOLD SEPARAT

1/4" NPT square head pipe plug (221-2)

1шт.

D26509

VALVE - backhoe control (Use D26885 backhoe control valve and D26883 criss-cross relief) See Figure 70 for breakdown

1шт.

D26885

VALVE - backhoe control (See D24490 and D26509) See Figure 74 for breakdown

1шт.

D27952

SHAFT

- pump drive, used with D29617 coupling only (See DR10512)

1шт.

D28113

HOSE - return (3/4" I.D. x 1-1/4" O.D. x 34" long) Used in conjunction with D25353 elbow - See D25100

1шт.

D28157

SNAP RING,0.875", Int, #87

RING, Snap, , 36280 pump coupling 0.875", Int, #87

1шт.

D28485

ELBOW UNION

ELBOW - 90 degrees equalizer, Serial Range: tubes-reservoir

2шт.

NSS

NOT SOLD SEPARAT

1/2" NPT square head pipe plug (221-4)

2шт.

D29617

COUPLING

- pump to driveshaft, flexible type (Includes 2-NSS jaws, 1-D30101 wear plate, and 2-83-56 set screws) Used in with D27952 shaft only (See 36280)

1шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC x 3/8" set screw, D29617 coupling (83-56)

2шт.

D29650

ELECTRICAL GAUGE

GAUGE - hydraulic oil pressure (If used)

1шт.

D29651

ELBOW - special, filter gauge (3/4" NPT) If used

1шт.

NSS

NOT SOLD SEPARAT

3/4" NPT x 1-1/8" pipe nipple (221-211)

1шт.

D30101

PLATE ASSY.

PLATE - wear, D29617 coupling

1шт.

DR10512

X

SHAFT - pump drive, used with 36280 coupling only (For service 1-D27952 shaft and 1-D29617 coupling may be used) See D27952

1шт.
