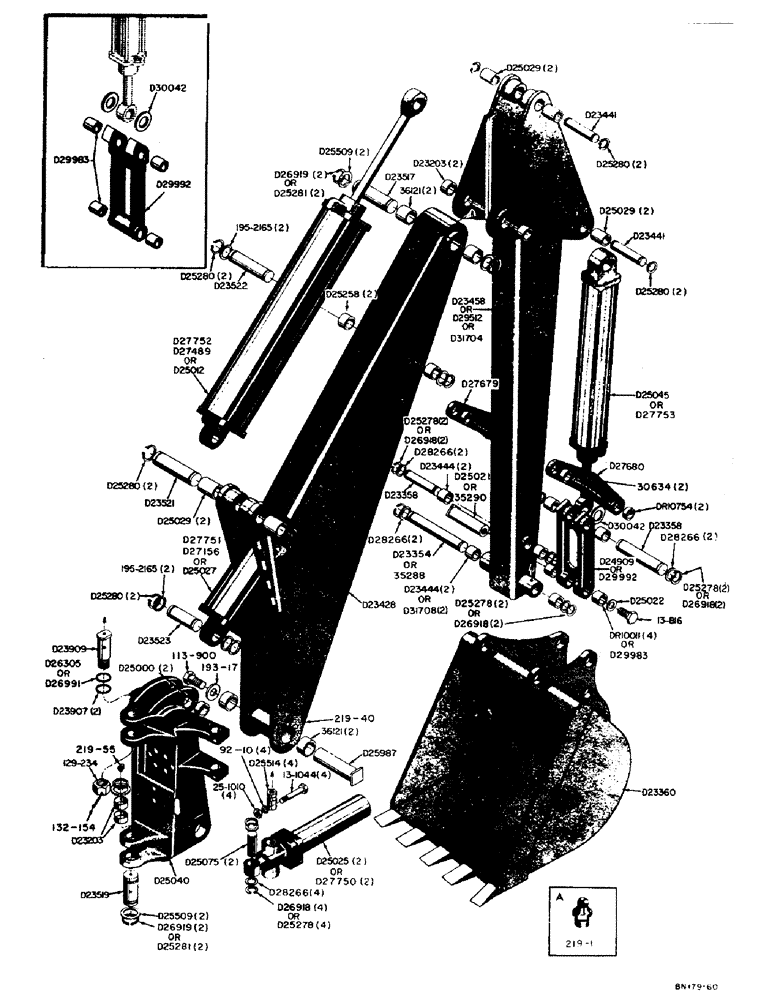

Запчасти Case 31 (022) - TOWER, BOOM, DIPPER ARM, AND BUCKETS, SWING TOWER

D23203

BUSHING

- lower tower swing

2шт.

D23519

AXLE PIN

PIN - pivot, lower tower swing

1шт.

NSS

NOT SOLD SEPARAT

1/8" NPT 90 degrees grease fitting (219-55)

1шт.

D23523

PIN

- pivot, boom, Serial Range: cylinder-tower

1шт.

NSS

NOT SOLD SEPARAT

1-13/32" I.D. x 2-3/4" O.D. x #10 gauge standard wrot washer (192-2165)

2шт.

D23907

SPACER

- bearing, upper swing (5/16" thick)

2шт.

D23909

BOLT - mounting, upper swing tower pivot to mounting frame

1шт.

NSS

NOT SOLD SEPARAT

1/8" NPT straight grease fitting (219-1)

1шт.

NSS

NOT SOLD SEPARAT

1-1/2" - 12 NF slotted hex. nut (129-234)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 2" cotter pin (132-154)

1шт.

D25000

BUSHING

- boom cylinder pivot

2шт.

D25025

CYLINDER - swing hydraulic (Early production - when stock is exhausted use D27750) See Figure 090 for breakdown

2шт.

D25040

TOWER - swing (Includes 2-D23203 and 2-D25000 bushings)

1шт.

D25075

PIN

- pivot, swing cylinder piston rod to mounting frame

2шт.

D25278

RING, SNAP

SNAP RING - D25075 pin (.062" thick) See D26918

4шт.

D25280

SNAP RING,#175, Ext

RING, Snap, , D23523 pin #175, Ext

2шт.

D25281

RING, SNAP

SNAP RING - D23519 pin (.078" thick) See D26919

2шт.

D25509

WASHER

- D23519 pin (2-1/64" I.D. x 3" O.D. x #12 gauge)

2шт.

D25514

PIN - pivot, swing, Serial Range: cylinder-tower

4шт.

NSS

NOT SOLD SEPARAT

1/8" NPT straight grease fitting (219-1)

4шт.

NSS

NOT SOLD SEPARAT

5/8" - 11 NC x 2-3/4" hex. head cap screw (13-1044)

4шт.

NSS

NOT SOLD SEPARAT

5/8" lockwasher (92-10)

4шт.

NSS

NOT SOLD SEPARAT

5/8" - 11 NC hex. nut (25-1010) If used

4шт.

D25987

X

PIN - pivot, Serial Range: boom-tower

1шт.

NSS

NOT SOLD SEPARAT

1" - 8 NC x 2" hex. head cap screw (13-1632) Use 113-900

1шт.

NSS

NOT SOLD SEPARAT

1" - 8 NC x 2" Nylock self-locking bolt (113-900)

1шт.

NSS

NOT SOLD SEPARAT

1" external tooth Shakeproof lockwasher, used with 13-1632 cap screw only (193-17)

1шт.

D25991

WASHER - D25987 pin (1-3/32" I.D. x 2-1/2" O.D. x 1/2" thick) (Not shown)

1шт.

D26305

SPACER

- bearing, upper (3/8" thick)

1шт.

D26918

SNAP RING,#125, Ext

RING, Snap, , D25075 pin (.093" thick) see D25278) #125, Ext

4шт.

D26919

SNAP RING,#200, Ext

RING, Snap, , D23519 (.125" thick) see D25281 #200, Ext

2шт.

D26991

BEARING

SPACER - bearing, upper (1/4" thick)

1шт.

D27750

CYLINDER ASSY.

CYLINDER - swing, hydraulic (Late production - see D25025) See Figure 92 for breakdown

2шт.

D28266

WASHER

- special (1-7/64" I.D. x 2-1/8" O.D. x #12 gauge)

4шт.

36121

BUSHING

- boom to tower and boom to dipper arm

4шт.

NSS

NOT SOLD SEPARAT

1/8" NPT straight grease fitting (219-1), boom

1шт.

NSS

NOT SOLD SEPARAT

1/8" NPT 67-1/2 degrees grease fitting (219-40), boom

1шт.

D23428

BOOM - backhoe (Includes 4-36121 bushings, 1-straight grease fitting 219-1, 2-D25258 bushings, 1-67-1/2 degrees grease fitting 219-40, and 2-D25029 bushings)

1шт.

D23517

PIN

- pivot, dipper, Serial Range: arm-boom

1шт.

D23521

AXLE PIN

PIN - pivot, crowd, Serial Range: cylinder-boom

1шт.

D23522

AXLE PIN

PIN - pivot, boom, Serial Range: cylinder-boom

1шт.

NSS

NOT SOLD SEPARAT

1-13/32" I.D. x 2-3/4" O.D. x #10 gauge standard wrot washer (195-2165), boom

2шт.

D25012

CYLINDER - crowd, hydraulic (Early production - with tie rods) When stock is exhausted, order 1-D27752 cylinder, 1-D29026 tube, and 1-218-5065 connector (See Figure 100 for breakdown), boom

1шт.

D25027

CYLINDER - boom, hydraulic (1-3/4" piston rod - with tie rods) When stock is exhausted order 1-D27751 cylinder, 1-D29020 tube, and 1-218-5065 connector (See Figure 096 for breakdown)

1шт.

D25029

BUSHING

- crowd cylinder pivot, boom

2шт.

D25258

BUSHING

- boom cylinder pivot

2шт.

D25280

SNAP RING,#175, Ext

RING, Snap, , D23521 and D23522 pins, boom #175, Ext

4шт.

D25281

RING, SNAP

SNAP RING - D23517 pin (.078" thick) See D26919, boom

2шт.

D25509

WASHER

- D23517 pin (2-1/64" I.D. x 3" O.D. x #12 gauge), boom

2шт.

D26919

SNAP RING,#200, Ext

RING, Snap, , D23517 pin (.125" thick) see D25281, boom #200, Ext

2шт.

D27156

CYLINDER ASSY.

CYLINDER - boom, hydraulic (2" piston rod - with tie rods) When stock is exhuasted order 1-D27751 cylinder, 1-D29020 tube, and 1-218-5065 connector (See Figure 098 for breakdown)

1шт.

D27489

CYLINDER - crowd, hydraulic (Late production - with tie rods) When stock is exhausted order 1-D27752 cylinder, 1-D29026 tube, and 1-218-5065 connector (See Figure 102 for breakdown), boom

1шт.

D27751

CYLINDER ASSY.

CYLINDER - boom, hydraulic (Late production - without tie rods) See D25027 and D27156 (See Figure 099 for breakdown) When replacing a cylinder with tie rods also order 1-218-5065 connector and 1-D29020 tube

1шт.

NSS

NOT SOLD SEPARAT

3/4" JIC x 5/8" JIC straight connector (218-5065) Not shown, boom

1шт.

D27752

CYLINDER ASSY.

CYLINDER - crowd hydraulic (Late production - without tie rods) See D25052 and D27489 (See Figure 103 for breakdown) When replacing a cylinder with tie rods also order 1-218-5065 connector and 1-D29026 tube, boom

1шт.

NSS

NOT SOLD SEPARAT

3/4" JIC x 5/8" JIC straight connector (218-5065) Not shown, boom

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- link pivot at cipper arm, dipper

2шт.

35288

PIN - pivot, bucket to dipper arm (Used on backhoe serial no. 4043057 and after) See D23354

1шт.

NSS

NOT SOLD SEPARAT

1/2" - 13 NC x 1" hex. head cap screw (13-816) Not shown, dipper arm

1шт.

NSS

NOT SOLD SEPARAT

1/2" internal tooth Shakeproof lockwasher (192-32) Not shown, dipper arm

1шт.

35290

PIN

- pivot, dump link to bucket (Used on backhoe serial no. 4043057 and after) See D25021, dipper arm

1шт.

NSS

NOT SOLD SEPARAT

1/2" - 13 NC x 1" hex. head cap screw (13-816), dipper arm

1шт.

NSS

NOT SOLD SEPARAT

1/2" internal tooth Shakeproof lockwasher (193-32) Not shown, dipper arm

1шт.

D23203

BUSHING

- dipper, Serial Range: arm-boom

2шт.

D23354

PIN - pivot, bucket to dipper arm (Used before backhoe serial no. 4043057) Use 35288

1шт.

D23358

PIN - pivot, dipper arm to bucket linkage and bucket cylinder to bucket linkage

2шт.

D23360

BUCKET - backhoe trenching (24") See Figure 28 for breakdown and other optional buckets (Machinery item), dipper arm

1шт.

D23441

AXLE PIN

PIN - pivot, crowd and bucket cylinder to dipper arm

2шт.

D23444

BUSHING

- D23458 and D29512 dipper arm at bucket pivot and bucket linkage (See D32708)

4шт.

D23458

ARM - dipper (Includes 2-D23203 bushings, 4-D25029 bushings, and 4-D23444 bushings) Use D29512, arm

1шт.

NSS

NOT SOLD SEPARAT

1/8" NPT straight grease fitting (219-1), dipper arm

2шт.

D23740

BUSHING

- 35288 and 35290 pins (Not shown), dipper arm

2шт.

D24909

LINK - dump, bucket (Includes 4-DR10011 or D28021 bushings) When stock is exhausted use 1-D29992 link and 2-D30042 spacer washers, dipper arm

1шт.

D25021

X

PIN - pivot, dump link to bucket (Used before backhoe serial no. 4043057) Use 35290, dipper arm

1шт.

D25022

WASHER

- D25021 pin (17/32" I.D. x 1-3/4" O.D. x 3/16" thick), dipper arm

1шт.

D25029

BUSHING

- crowd and bucket cylinder to dipper arm

4шт.

D25045

CYLINDER - bucket, hydraulic (With tie rods) When stock is exhausted use 1-D27753 cylinder, 1-D29022 tube, and 1-218-5065 connector (See Figure 104 for breakdown), dipper arm

1шт.

D25278

RING, SNAP

SNAP RING - D23354 pin and D23358 pin (.062" thick) See D26918, dipper arm

6шт.

D25280

SNAP RING,#175, Ext

RING, Snap, , D23441 pin, dipper arm #175, Ext

4шт.

D26918

SNAP RING,#125, Ext

RING, Snap, , D23354 pin and D23358 pin (.093" thick) see D25278, dipper arm #125, Ext

6шт.

D27679

LINK - bucket, dipper arm to bucket cylinder (R.H.) Includes 1-30634 bushing and 1-DR10754 bushing

1шт.

D27680

LINK - bucket, dipper arm to bucket cylinder (L.H.) Includes 1-30634 bushing and 1-DR10754 bushing

1шт.

D27753

CYLINDER ASSY.

CYLINDER - bucket, hydraulic (Without tie rods) See D25045 (See Figure 106 for breakdwon) When replacing cylinder with tie rods also order 1-218-5065 connector and 1-D29022 tube, dipper arm

1шт.

NSS

NOT SOLD SEPARAT

3/4" JIC x 5/8" JIC straight connector (218-5065), dipper arm

1шт.

D28266

WASHER

- special (1-17/64" I.D. x 2-1/8" O.D. x 7/64" thick) D23354 and D23358 pins, dipper arm

6шт.

D29512

ARM - dipper (Includes 2-D23203 bushings, 4-D25029 bushings, and 4-D23203 bushings, 4-D25029 bushings, and 4-D23444 bushings) When stock is exhausted use D31704, arm

1шт.

NSS

NOT SOLD SEPARAT

1/8" NPT straight grease fitting (219-1), dipper arm

2шт.

D29983

BUSHING

- D29992 dump link (See DR10011), dipper arm

4шт.

D29992

LINK - bucket dump (See D24909), dipper arm

1шт.

D30042

WASHER

- special, D29992 link at bucket cylinder (1-9/16" I.D. x 3" O.D. x 3/16" thick), dipper arm

2шт.

D31704

ARM - dipper (Includes 2-D23203 bushings, 4-D25029 bushings, and 4-D31708 bushings) See D29512, ar

1шт.

NSS

NOT SOLD SEPARAT

1/8" NPT straight grease fitting (219-1), dipper arm

2шт.

D31708

BUSHING

- D31704 dipper arm at bucket pivot and bucket linkage (See D23444)

4шт.

DR10011

BUSHING

- D24909 dump link (See D29983), dipper arm

4шт.

DR10754

BUSHING

- D27679 and D27680 links at bucket cylinder pivot, dipper arm

2шт.
