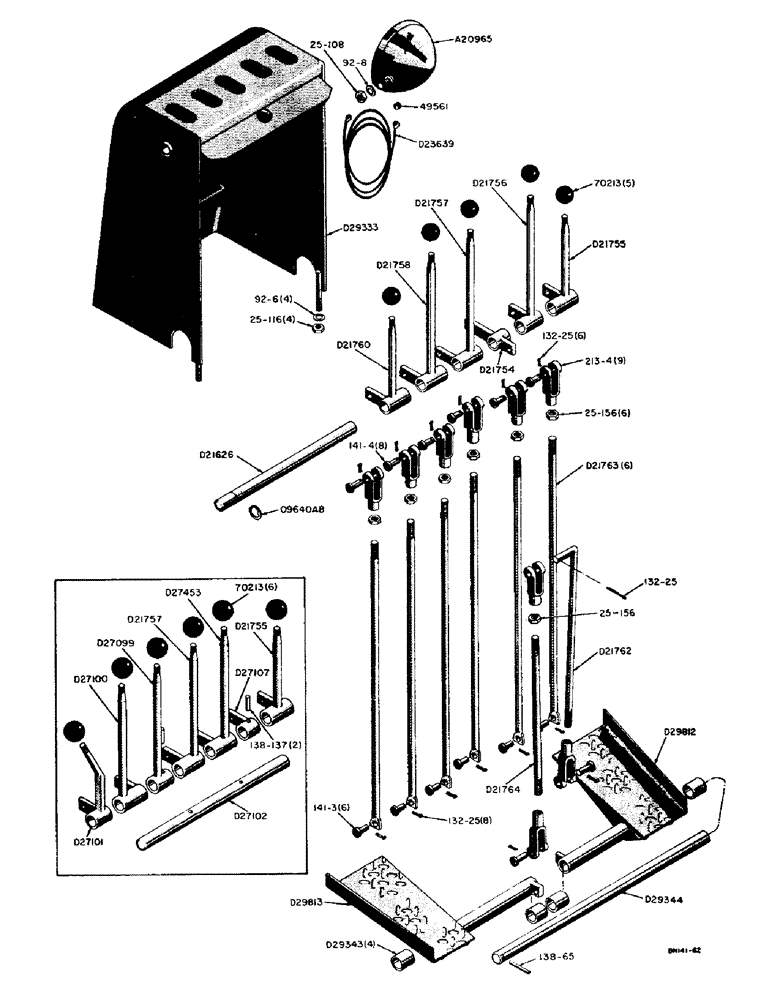

Запчасти Case 31 (020) - BACKHOE CONTROL LEVERS AND LINKAGE, BACKHOE S/N 4065701 AND AFTER
№
Артикул
Название
Примечание
Количество
A20965
LAMP BASE
LIGHT - tail (12 volt) Wheel tractors only
1шт.
NSS
NOT SOLD SEPARAT
1/2" lockwasher (92-8)
1шт.
NSS
NOT SOLD SEPARAT
1/2" - 13 NC hex. nut (25-108)
1шт.
O9640AB
X
RING - retaining (Type "E")
1шт.
49561
GROMMET,1/4" ID x 7/16" Groove Dia
- taillight wire
1шт.
70213
KNOB
- control lever
5шт.
D21626
SHAFT - control lever
1шт.
D21754
PIVOT - swing control
1шт.
D21755
LEVER - control, L.H. stabilizer
1шт.
D21756
LEVER - control, boom
1шт.
D21757
LEVER - control, dipper arm
1шт.
D21758
LEVER - control, bucket
1шт.
D21760
LEVER - control, R.H. stabilizer
1шт.
NSS
NOT SOLD SEPARAT
Control lever yoke (213-4)
9шт.
NSS
NOT SOLD SEPARAT
Yoke eye pin (141-4)
8шт.
NSS
NOT SOLD SEPARAT
3/32" dia. x 5/8" long cotter pin (132-25)
8шт.
D21762
ROD
- control, swoing (Front)
1шт.
NSS
NOT SOLD SEPARAT
3/32" dia. x 5/8" long cotter pin(132-25)
1шт.
D21763
ROD - control, Serial Range: levers-valve
6шт.
On machines with crossed control rods for bucket and dipper controls, replacement rods must be formed from straight rods in the field (See instruction sheet Burlington form 9-70231)
1шт.
NSS
NOT SOLD SEPARAT
3/8" - 24 NF hex. jam nut (25-156)
6шт.
NSS
NOT SOLD SEPARAT
Control rod to valve eye pin (141-3)
6шт.
NSS
NOT SOLD SEPARAT
3/32" dia. x 5/8" long cotter pin (132-25)
6шт.
D21764
ROD - control, swing (Rear)
1шт.
NSS
NOT SOLD SEPARAT
3/8" - 24 NF hex. jam nut (25-156)
2шт.
D23639
WIRE - extension, taillight (Wheel tractor only)
1шт.
D29333
SHIELD - control rods
1шт.
NSS
NOT SOLD SEPARAT
3/8" lockwasher (92-6)
4шт.
NSS
NOT SOLD SEPARAT
3/8" - 24 NF hex. nut (25-116)
4шт.
D29343
BUSHING - Oilite
4шт.
D29344
SHAFT
- swing pedals
1шт.
NSS
NOT SOLD SEPARAT
1/8" dia. x 1-1/2" long roll pin (138-65)
1шт.
D29812
PEDAL - swing control, L.H. (Includes 2-D29343 bushings)
1шт.
D29813
PEDAL - swing control, R.H. (includes 2-D29343 bushings)
1шт.
70213
KNOB
- control lever, hand swing parts
6шт.
D21755
LEVER - control, L.H. stabilizer, hand swing parts
1шт.
D21757
LEVER - control, bucket, hand swing parts
1шт.
D27099
LEVER - control, boom, hand swing parts
1шт.
D27100
LEVER - control, dipper, hand swing parts
1шт.
D27101
LEVER - control, R.H. stabilizer, hand swing parts
1шт.
D27102
SHAFT - control lever, hand swing parts
1шт.
D27107
ARM - lever, boom control, hand swing parts
1шт.
NSS
NOT SOLD SEPARAT
1/4" dia. x 1-3/8" long roll pin (138-137), hand swing control parts
2шт.
D27453
LEVER - control, swing, hand parts
1шт.
Выбрано товаров: 44
