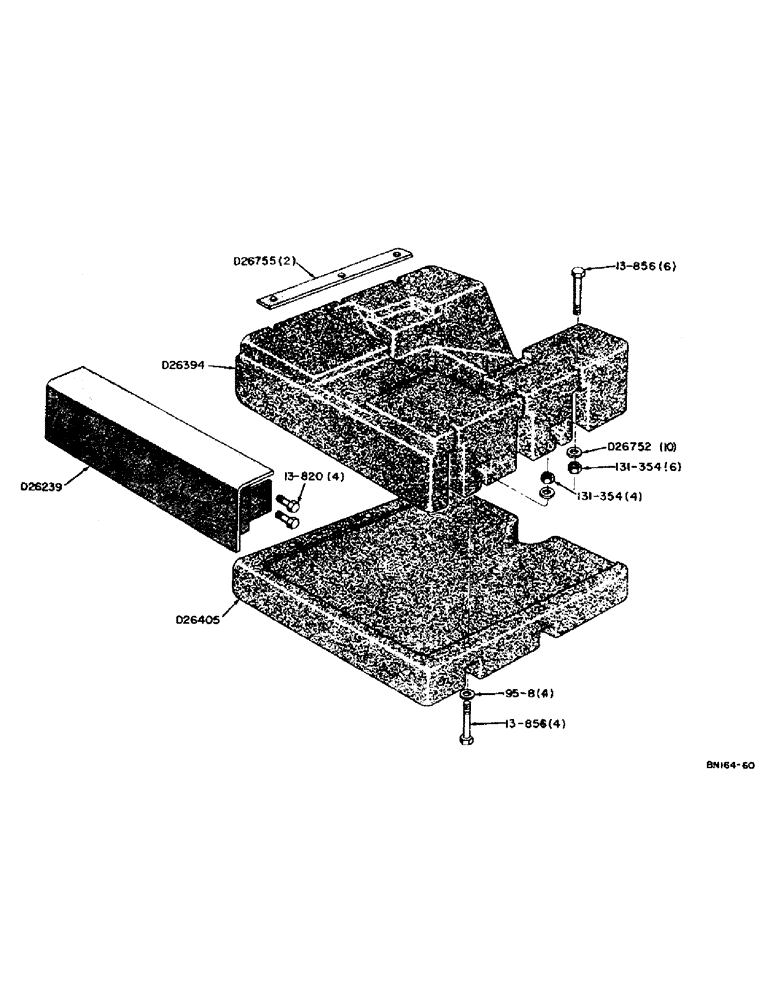

Запчасти Case 31 (118) - FRONT COUNTERWEIGHT (CRAWLER TRACTOR)

D26239

BUMPER - front

1шт.

NSS

NOT SOLD SEPARAT

1/2" - 13 NC x 1-1/4" hex. head cap screw (13-820)

4шт.

D26394

COUNTERWEIGHT - front, upper

1шт.

NSS

NOT SOLD SEPARAT

1/2" - 13 NC x 3-1/2" hex. head cap screw (13-856)

6шт.

NSS

NOT SOLD SEPARAT

1/2" - 13 NC hex. locknut (131-354)

6шт.

D26405

WEIGHT

COUNTERWEIGHT - front, lower

1шт.

NSS

NOT SOLD SEPARAT

1/2" - 13 NC x 3-1/2" hex. head cap screw (13-856)

4шт.

NSS

NOT SOLD SEPARAT

1/2" wrot washer (95-8)

4шт.

NSS

NOT SOLD SEPARAT

1/2" - 13 NC hex. locknut (131-354)

4шт.

D26752

WASHER

- counterweight mounting (17/32" I.D. x 1-3/8" O.D. x 1/4" thick)

10шт.

D26755

STRIP - reinforcing

2шт.
