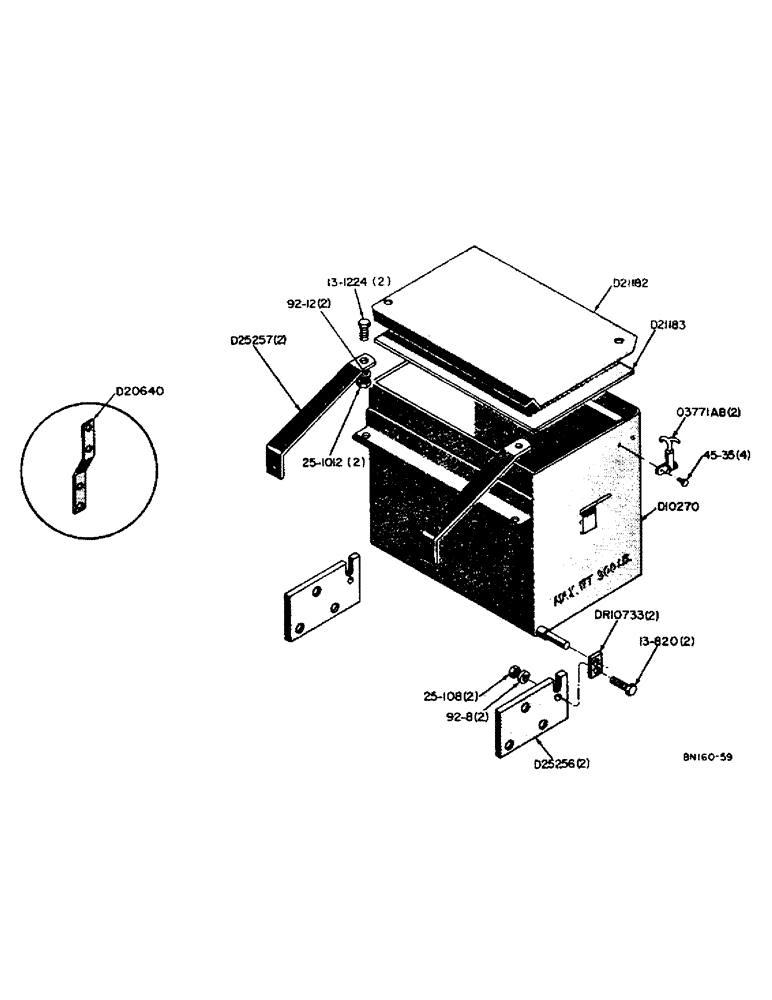

Запчасти Case 31 (114) - 900 LB. WEIGHT BOX (WHEEL TRACTOR WITH BACKHOE REMOVED)

O3771AB

X

LATCH - lid, weight box

2шт.

NSS

NOT SOLD SEPARAT

3/16" x 5/16" button head rivet (45-35)

4шт.

D10270

BOX - weight, 900 lb. (Includes latches, shelf, and lid)

1шт.

D20640

BRACKET - taillight (Early production only)

1шт.

D21182

LID - weight box

1шт.

D21183

SHELF - tool box

1шт.

D25256

BRACKET - adapter

2шт.

D25257

BRACE - weight box

2шт.

NSS

NOT SOLD SEPARAT

3/4" - 10 NC x 1-1/2" hex. head cap screw (13-1224)

2шт.

NSS

NOT SOLD SEPARAT

3/4" lockwasher (92-12)

2шт.

NSS

NOT SOLD SEPARAT

3/4" - 10 NC hex. nut (25-1012)

2шт.

DR10733

STRAP - weight box

2шт.

NSS

NOT SOLD SEPARAT

1/2" - 13 NC x 1-1/4" hex. head cap screw (13-820)

2шт.

NSS

NOT SOLD SEPARAT

1/2" lockwasher (92-8)

2шт.

NSS

NOT SOLD SEPARAT

1/2" - 13 NC hex. nut (25-108)

2шт.
