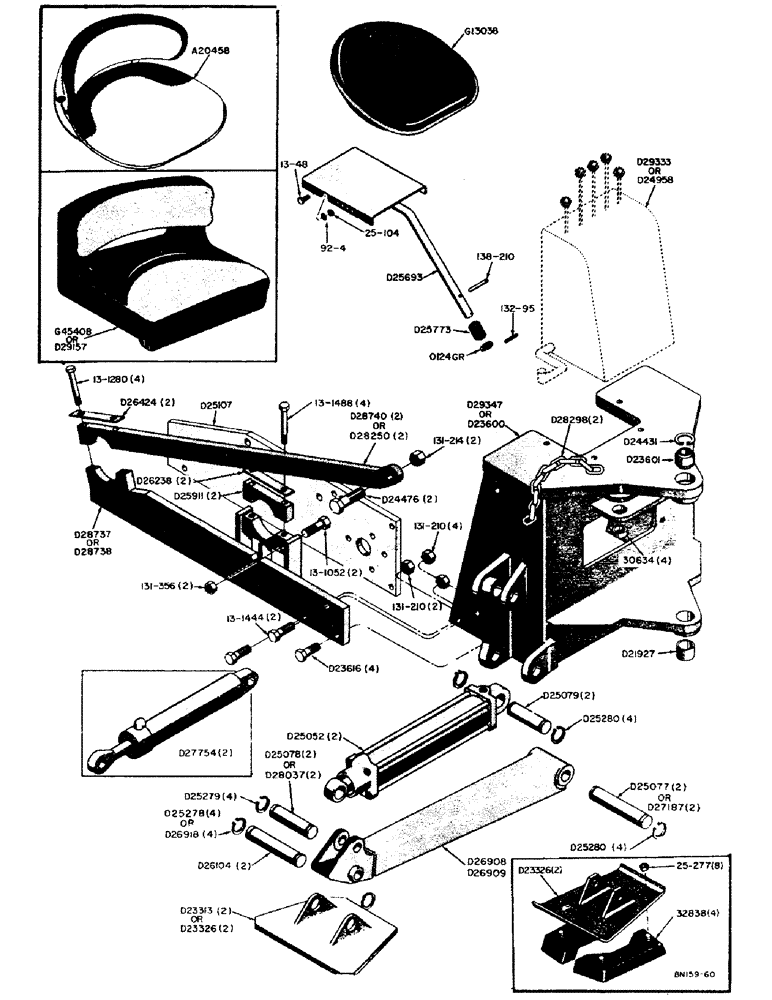

Запчасти Case 31 (014) - MOUNTING PARTS, SEAT, & STABILIZERS (CRAWLER TRAC.) MOUNTING PARTS

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- swing, Serial Range: cylinder-frame

4шт.

D21927

BUSHING,51.03mm ID x 63.45mm OD x 50.8mm L

- lower swing, Serial Range: tower-frame

1шт.

D23600

FRAME - mounting (Includes 1-D21927 bushing, 1-D24431 snap ring, 1-D23601 bushing, 4-30634 bushings, and 2-D28298 chains) Used before backhoe serial no. 4065701 (See D29347)

1шт.

D23601

HOUSING

BUSHING ASSEMBLY - upper swing, pivotal ball type

1шт.

D23616

BOLT (SPREADER)

BOLT - body fit (7/8" - 9 NC x 2-1/2")

4шт.

D24431

RING

- retaining, bushing

1шт.

D24476

X

BOLT - special (1-1/4" - 7 NC x 3-1/4")

2шт.

NSS

NOT SOLD SEPARAT

1-1/4" - 7 NC hex. lock nut (131-214)

2шт.

D24958

SHIELD - control rods (Used before backhoe serial no. 4065701 - see D29333) See Figure 018 for breakdown

1шт.

D25107

PLATE - side (Replaces original equipment side plates on standard tractor before serial no. 3018001 only)

2шт.

D25741

CHAIN - transport, lock (Use D28298)

2шт.

D25911

CLAMP - support arm to final drive spacer

2шт.

NSS

NOT SOLD SEPARAT

7/16" - 9 NC x 5-1/2" hex. head cap screw (13-1488)

4шт.

D26238

PLATE

- locking, D25911 clamp

2шт.

D26424

PLATE - bolt locking

2шт.

D27043

ARM - support, L.H. (Used before backhoe serial no. 4065701 see D28737)

1шт.

D27044

ARM - support, R.H. (Used before backhoe serial no. 4065701 see D28738)

1шт.

NSS

NOT SOLD SEPARAT

7/8" - 9 NC x 2-3/4" hex. head cap screw (13-1444)

2шт.

NSS

NOT SOLD SEPARAT

7/8" - 9 NC hex. lock nut (131-102)

2шт.

NSS

NOT SOLD SEPARAT

5/8" - 11 NC x 3-1/4" hex. head cap screw (13-1052)

2шт.

NSS

NOT SOLD SEPARAT

5/8" - 11 NC hex. lock nut (131-356)

2шт.

D28250

BRACE - mounting frame (Used before serial no. 4065701 - see D28740)

2шт.

NSS

NOT SOLD SEPARAT

3/4" - 10 NC x 5" hex. head capscrew (13-1280)

4шт.

D28298

CHAIN - transport, lock (Heavy duty)

2шт.

D28737

ARM - support, L.H. (Backhoe serial no. 4065701 and after - see D27043)

1шт.

D28738

ARM - support, R.H. (Backhoe serial no. 4065701 and after - see D27044)

1шт.

D28740

BRACE - mounting frame (Backhoe serial no. 4065701 and after - see D28250)

2шт.

D29333

SHIELD - control rods (Backhoe serial no. 4065701 and after - see D24958) See Figure 020 for breakdown, seat

1шт.

D29347

FRAME - mounting (Backhoe serial no. 4065701 and after - see D23600) Illustrated on Figure 010 (Includes 1-D21927 bushing, 1-D24431 snap ring, 1-D23601 bushing, 4-30634 bushings, and 2-D28298 chains), seat

1шт.

A20458

SEAT

- deluxe, optional (Includes guide and lock assembly) Use D29157 - see G45408 (See Figure 120 for breakdown)

1шт.

G13038

SEAT - standard (Used before backhoe serial no. 4065701 - see D29157) includes guide and lock assembly (See A20458 and G45408)

1шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 NC x 1/2" hex. head cap screw (13-48), seat

1шт.

NSS

NOT SOLD SEPARAT

1/4" lockwasher (92-4), seat

1шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 NC hex. nut (25-104), seat

1шт.

G45408

SEAT - deluxe, optional (Includes guide and lock assembly) Use D29157 - see A20458 (See Figure 119 for breakdown)

1шт.

O124GR

WASHER

- seat support rod (1-1/32" I.D. x 1-1/2" O.D. x 7/32" thick)

1шт.

D25693

ROD - seat support

1шт.

NSS

NOT SOLD SEPARAT

3/16" dia. x 1-1/2" long cotter pin (132-95), seat

1шт.

NSS

NOT SOLD SEPARAT

1/2" dia. x 3" long roll pin (138-210), seat

1шт.

D25773

SPRING

- seat support rod

1шт.

D29157

X

SEAT - deluxe, standard (Backhoe serial no. 4065701 and after) See G13038, G45408, and A20458 (See Figure 119 for breakdown)

1шт.

32838

SHOE (ASSY)

PAD - rubber, D23326 stabilizer foot (Optional)

4шт.

NSS

NOT SOLD SEPARAT

7/16" - 20 NF hex. nut (25-277), stabilizers

8шт.

D23313

FOOT

- stabilizer (Cleated bottom - standard) See D23326

2шт.

D23326

FOOT

- stabilizer (Flat bottom - optional)

2шт.

D25036

LEG - stabilizer, R.H. (Used before backhoe serial no. 4043744 - use D26909)

1шт.

D25037

LEG - stabilizer, L.H. (Used before backhoe serial no. 4043744 - use D26908)

1шт.

D25052

CYLINDER - hydraulic stabilizer, with tie rods (When stock is exhausted, order 1-D27754 cylinder, 1-D27859 tube, 1-D29311 hose, 1-D26361 elbow, and 1-D29145 elbow) See Figure 094 for breakdown

2шт.

D25077

PIN - pivot, stabilizer leg to frame (Used before backhoe serial no. 4042953 - use D27187)

2шт.

D25078

PIN

- pivot, stabilizer cylinder to leg (Used before backhoe serial no. 4043744 - use D28037)

2шт.

D25079

AXLE PIN,44.45mm OD x 157.2mm L

PIN - pivot, stabilizer, Serial Range: cylinder-frame

2шт.

D25278

RING, SNAP

SNAP RING - D25994 pin (.062" thick) See D26918, stabilizers

4шт.

D25279

SNAP RING,M35, Int

- D25078 and D28037 pins, stabilizers

4шт.

D25280

SNAP RING,#175, Ext

Ring, Snap, , D25079, D25077, and D27187 pins, stabilizers #175, Ext

8шт.

D25994

X

PIN - pivot, stabilizer leg to foot (Use D26104)

2шт.

D26104

PIN

- pivot, stabilizer leg to foot (Includes 2-D26918 snap rings)

2шт.

D26908

SUPPORT

LEG - stabilizer, L.H. (Backhoe serial no. 4043744 and after - see D25037)

1шт.

D26909

HOSE

LEG - stabilizer, R.H. (Backhoe serial no. 4043744 and after - see D25036)

1шт.

D26918

SNAP RING,#125, Ext

Ring, Snap, , D26104 pin (.093" thick), stabilizers #125, Ext

4шт.

D27187

AXLE PIN

PIN - pivot, stabilizer leg to frame (Backhoe serial no. 4043744 aned after - see D25077)

2шт.

D27754

CYLINDER

- hydraulic stabilizer, without tie rods (See D25052) See Figure 095 for breakdown

2шт.

D27859

TUBE

- to lower port of D27754 stabilizer cylinder (Order when replacing D25052 cylinder with D27754 cylinder) Not shown

2шт.

D28037

AXLE PIN

PIN - pivot, stabilizer cylinder to leg (Backhoe serial no. 4043744 and after - see D25078)

2шт.
