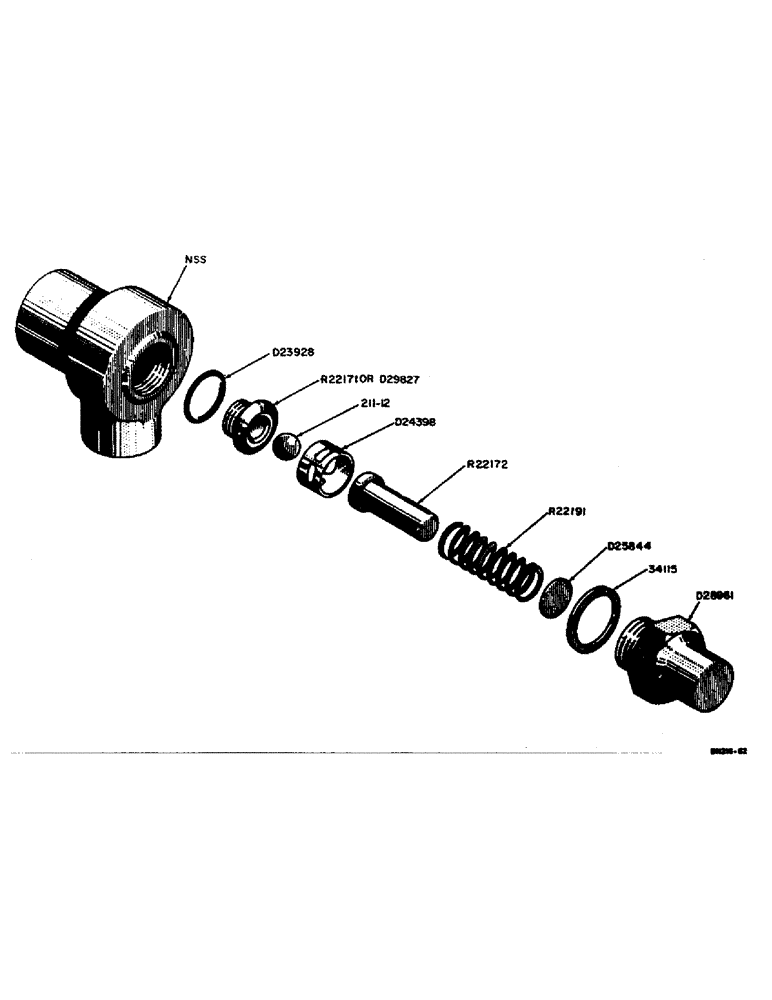

Запчасти Case 31 (108) - R17530 AND D29826 RELIEF VALVES

A7450

X

BALL - relief (Use 211-12)

1шт.

NSS

NOT SOLD SEPARAT

Relief ball (211-12)

1шт.

34115

GASKET

- body

1шт.

D23928

O-RING

SEAL - "O" ring, relief valve seat

1шт.

D24398

COLLAR - jam (If used)

1шт.

D25844

SHIM,.0097" Thk

Pressure adjusting .0097" Thk

1шт.

D28961

BODY - relief valve

1шт.

D29826

VALVE - secondary relief, complete

1шт.

The only difference between R17530 and D29826 relief valves is the seat. D29826 relief valve may be identified by "XXX" stamped on top of the body.

1шт.

D29827

SEAT - relief valve

1шт.

R17530

VALVE - secondary relief, complete (Use D29826)

1шт.

The only difference between R17530 and D29826 relief valves is the seat. D29826 relief valve may be identified by "XXX" stamped on top of the body.

1шт.

R22171

SEAT/SLOT

SEAT - relief valve (Use D29827)

1шт.

R22172

GUIDE - relief valve spring

1шт.

R21191

SPRING - relief valve

1шт.

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.
