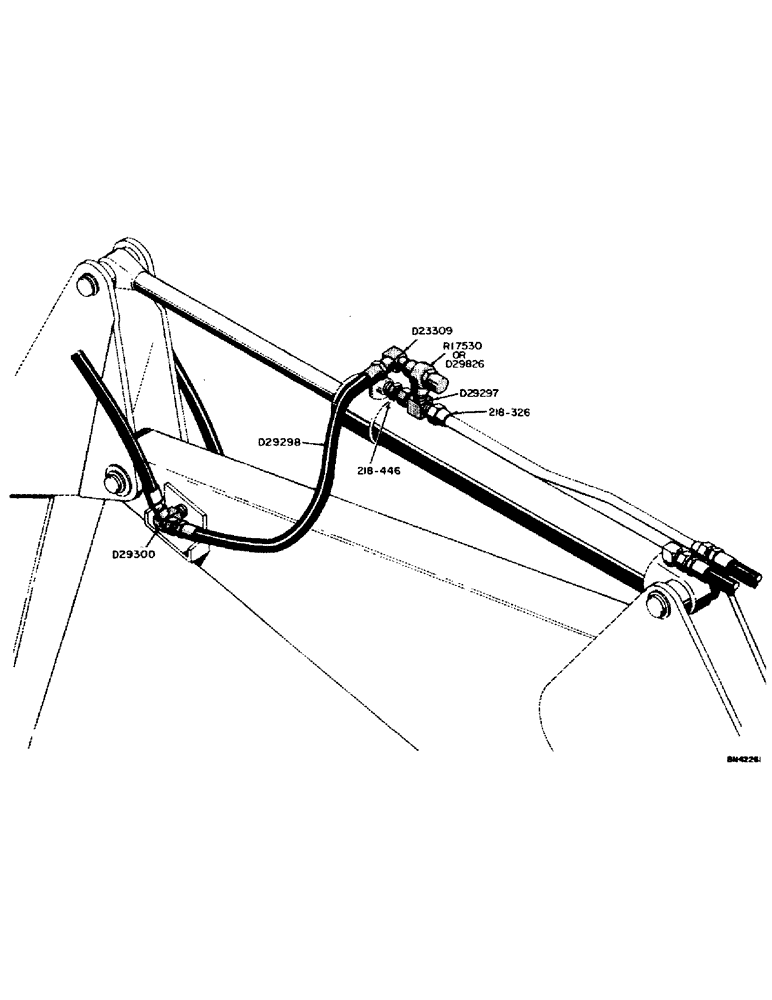

Запчасти Case 31 (107) - D11590 BUCKET CYLINDER RELIEF VALVE KIT

D11590

KIT - secondary relief valve (Machinery item) Includes the following items

1шт.

D23309

ELBOW - street, relief valve

1шт.

D29297

TEE - crowd cylinder tube

1шт.

D29298

HOSE - relief valve to elbow on side of boom (3/8" I.D. x 3/4" O.D. x 31" long)

1шт.

D29300

ELBOW - bucket cylinder circuit

1шт.

D29826

VALVE - secondary relief (See Figure 108 for breakdown)

1шт.

R17530

VALVE - secondary relief (Use D29826) See Figure 108 for breakdown

1шт.

NSS

NOT SOLD SEPARAT

3/4" JIC x 3/4" NPT adapter (218-446)

1шт.

NSS

NOT SOLD SEPARAT

3/4" JIC tube nut (Used with D24660 tube) (218-236)

1шт.
