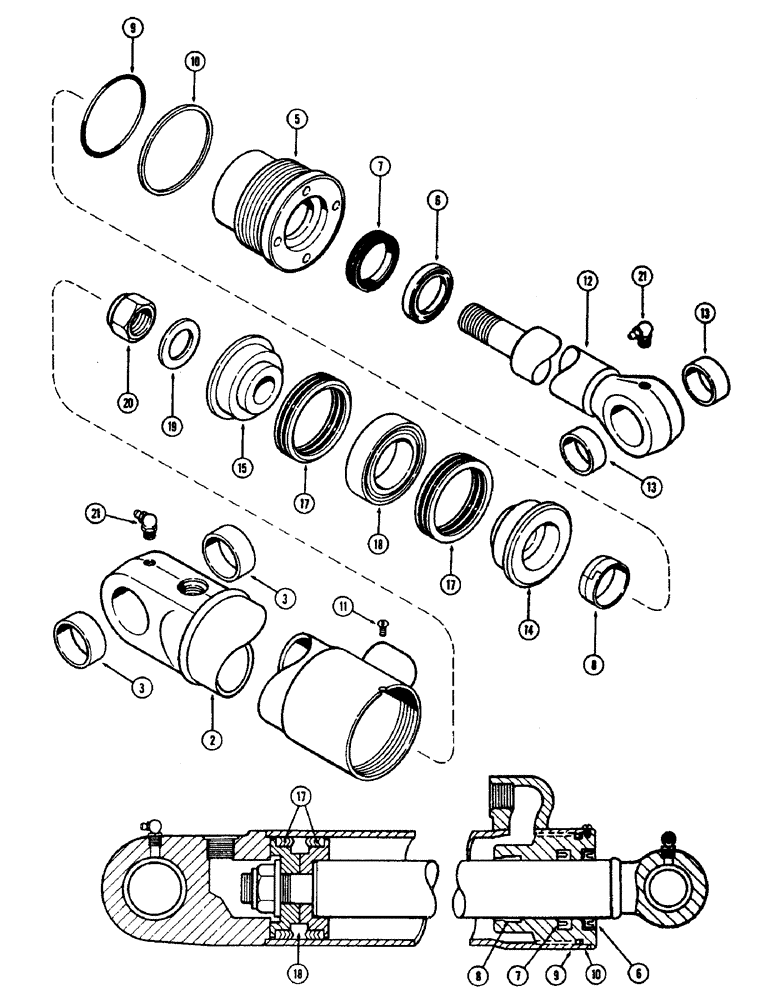

Запчасти Case 31 (106B) - G32786 BUCKET CYLINDER, 3-1/2" DIA. CYLINDER WITH 27-1/4"

G32786

CYLINDER

ASSY. - backhoe

1шт.

2

D27766

CYLINDER BLOCK

TUBE ASSY. - cylinder body

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G32743

GLAND

ASSY.

1шт.

5

NSS

NOT SOLD SEPARAT

GLAND

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer (1-3/4 x 2-1/4 x 5/16")

1шт.

Part of Seal Kit P/N G32291

1шт.

7

D36970

CUP

SEAL - piston rod (1-3/4 x 2-1/4 x 7/16")

1шт.

Part of Seal Kit P/N G32291

1шт.

8

D27432

SHIM

- piston rod, inner

1шт.

Part of Seal Kit P/N G32291

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland (3-1/2 x 3-3/4 x 1/8")

1шт.

Part of Seal Kit P/N G32291

1шт.

10

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "O" ring back-up

1шт.

Part of Seal Kit P/N G32291

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self tapping)

1шт.

12

D27759

ROD ASSY. - piston (1-3/4" dia.)

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

14

D28369

PISTON

- split (Rod end)

1шт.

15

D28367

PISTON

- split (Bolt end)

1шт.

G33237

PACKING

ASSY. - piston

1шт.

Part of Seal Kit P/N G32291

1шт.

17

NSS

NOT SOLD SEPARAT

PACKING ASSY. - "V" type

2шт.

18

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- piston (1-7/64 x 1-7/8 x 9/64")

1шт.

20

131-19

LOCK NUT,1"-14, GB

NUT - piston (1" N.F. hex. w/nylon insert)

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

G32291

CYLINDER

SEAL KIT - cylinder repair, Includes PN. D95143, D36970, D27432, G15457, G32126 and G33237

1шт.
