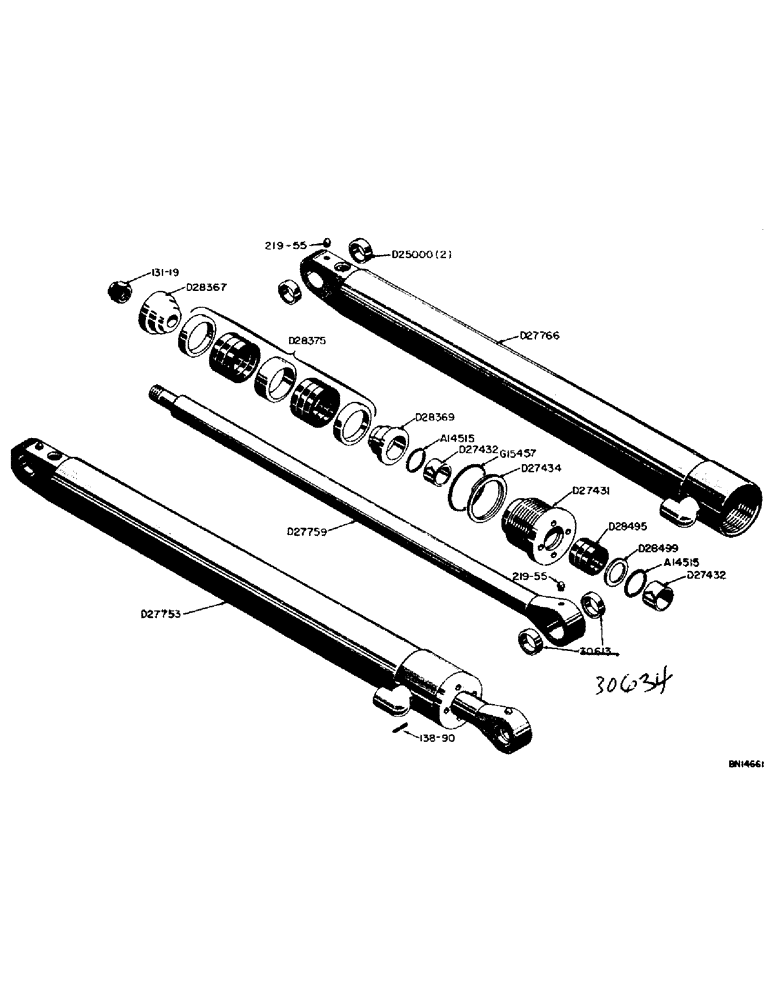

Запчасти Case 31 (106) - D27753 HYDRAULIC BUCKET CYLINDER

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O" ring, piston rod

2шт.

Part of Cylinder Packing Kit P/N D30132

1шт.

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O" ring, cylinder tube

1шт.

Part of Cylinder Packing Kit P/N D30132

1шт.

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- rod eye

2шт.

NSS

NOT SOLD SEPARAT

1" - 14 NF locknut (131-19)

1шт.

Part of Cylinder Packing Kit P/N D30132

1шт.

D25000

BUSHING

- cylinder tube end

2шт.

D27431

GLAND

- packing

1шт.

D27432

SHIM

SEAL - wiper, piston rod

2шт.

Part of Cylinder Packing Kit P/N D30132

1шт.

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, tube seal

1шт.

Part of Cylinder Packing Kit P/N D30132

1шт.

D27753

CYLINDER ASSY.

CYLINDER - hydraulic, bucket (Complete) 3-1/2" I.D. x 27-1/4" stroke

1шт.

D27759

ROD - piston (Includes 2-30613 bushings) 1-3/4" dia.

1шт.

NSS

NOT SOLD SEPARAT

1/8" NPT 90 degrees fitting (219-55)

1шт.

D27766

CYLINDER BLOCK

TUBE - cylinder (Includes 2-D25000 bushings)

1шт.

NSS

NOT SOLD SEPARAT

1/8" NPT 90 degrees grease fitting (219-55)

1шт.

D28367

PISTON

- half, rear

1шт.

D28369

PISTON

- half, front

1шт.

D28375

PACKING

- kit piston, (Includes chevrons and spacers)

1шт.

Part of Cylinder Packing Kit P/N D30132

1шт.

D28495

PACKING

SEAL - piston rod

1шт.

Part of Cylinder Packing Kit P/N D30132

1шт.

D28499

RING

- backup, rod seal

1-3шт.

Part of Cylinder Packing Kit P/N D30132

1шт.

NSS

NOT SOLD SEPARAT

3/16" x 5/8" roll pin (138-90) If used

1шт.

Part of Cylinder Packing Kit P/N D30132

1шт.

D30132

X

KIT - cylinder packing, Includes: P/N A14515, G15457, the locknut shown below P/N 30613, D27432, D27434, D28375, D28495, D28499 and the roll pin shown below P/N D28499

1шт.
