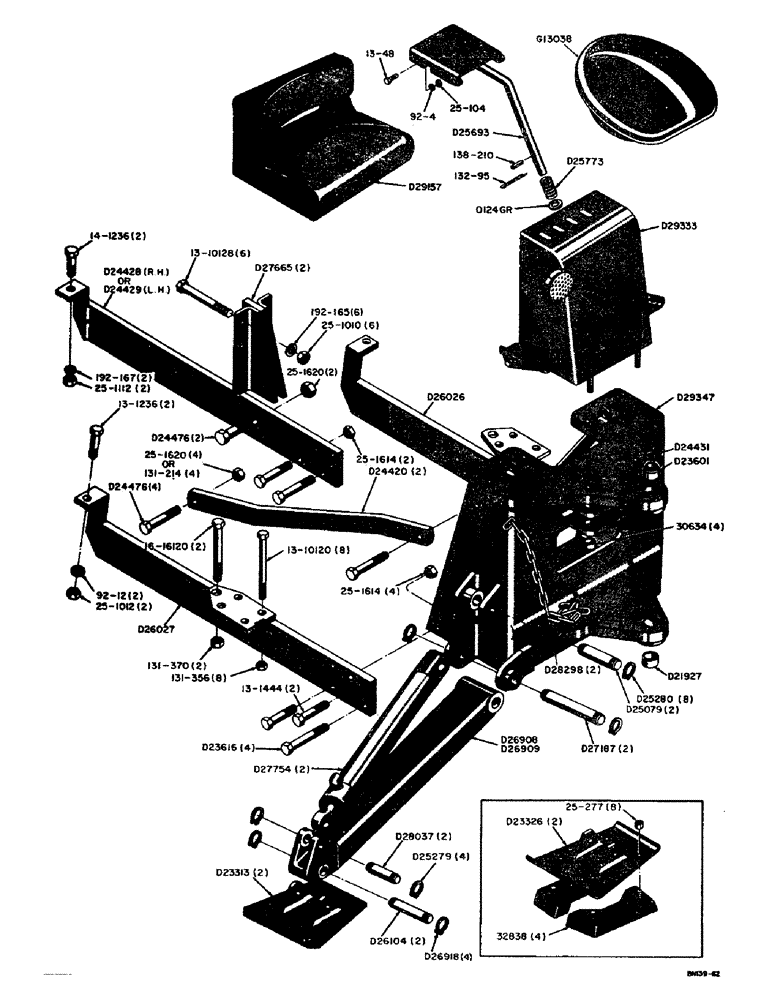

Запчасти Case 31 (010) - MOUNTING PARTS, SEAT, & STABILIZERS (WHEEL TRAC.) BACKHOE S/N 4065701 & AFT. SEAT & MOUNTING PARTS

G13038

SEAT - backhoe, standard on models with model "31" loader (Includes guide and lock assembly) See D29157

1шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 NC x 1/2" hex. head cap screw (13-48)

1шт.

NSS

NOT SOLD SEPARAT

1/4" lockwasher (92-4)

1шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 NC hex. nut (25-104)

1шт.

O124GR

WASHER

- seat support rod (1-1/32" I.D. x 1-1/2" O.D. x 7/32" thick)

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- swing, Serial Range: cylinder-frame

4шт.

D21927

BUSHING,51.03mm ID x 63.45mm OD x 50.8mm L

- lower swing, Serial Range: tower-frame

1шт.

D23601

HOUSING

BUSHING ASSEMBLY - upper swing, pivotal ball type

1шт.

D23616

BOLT (SPREADER)

BOLT - body fit (7/8" - 9 NC x 2-1/2")

4шт.

NSS

NOT SOLD SEPARAT

7/8" - 9 NC hex. nut (25-1614)

4шт.

D24420

BRACE - stabilizer

2шт.

D24428

ARM - support, R.H. (Used on units with model "31" loader only - see D26026)

1шт.

D24429

ARM - support, L.H. (Used on units with model "31" loader only - see D26027)

1шт.

NSS

NOT SOLD SEPARAT

7/8" - 9 NC x 2-3/4" hex. head cap screw (13-1444)

2шт.

NSS

NOT SOLD SEPARAT

7/8" - 9 NC x hex. nut (25-1614)

2шт.

NSS

NOT SOLD SEPARAT

3/4" - 16 NF x 2-1/4" hex. head cap screw (14-1236)

2шт.

NSS

NOT SOLD SEPARAT

3/4" lockwasher (192-167)

2шт.

NSS

NOT SOLD SEPARAT

3/4" - 16 NF hex. nut (25-1112)

2шт.

D24431

RING

- retaining, bushing

1шт.

D24476

X

BOLT - special, 1-1/4" - 7 NC x 3-1/4" (4 used on units with model "42" loader - 6 used on units with model "31" loader)

4-6шт.

NSS

NOT SOLD SEPARAT

1-1/4" - 7 NC hex. nut (25-1620)

6шт.

NSS

NOT SOLD SEPARAT

1-1/4" - 7 NC hex. lock nut (131-214)

4шт.

D25693

ROD - seat support (Includes mounting channel)

1шт.

NSS

NOT SOLD SEPARAT

3/16" dia. x 1-1/2" long cotter pin (132-95)

1шт.

NSS

NOT SOLD SEPARAT

1/2" dia. x 3" long roll pin (138-210)

1шт.

D25773

SPRING

- seat support rod

1шт.

D26026

ARM - support, R.H. (Used on units with model "42" loader only - see D24428)

1шт.

D26027

ARM - support, L.H. (Used on units with model "42" loader only - see D24429)

1шт.

NSS

NOT SOLD SEPARAT

3/4" - 10 NC x 2-1/4" hex. head cap screw (13-1236)

2шт.

NSS

NOT SOLD SEPARAT

3/4" lockwasher (92-12)

2шт.

NSS

NOT SOLD SEPARAT

3/4" - 10 NC hex. nut (25-1012)

2шт.

NSS

NOT SOLD SEPARAT

1" - 14 NF x 1-1/2" hex. head cap screw (16-16120)

2шт.

NSS

NOT SOLD SEPARAT

1" - 14 NF hex. lock nut (131-370)

2шт.

NSS

NOT SOLD SEPARAT

1-1/16" I.D. x 2" O.D. plain washer (Not shown) (195-53)

2шт.

NSS

NOT SOLD SEPARAT

5/8" - 11 NC x 7-1/2" hex. head cap screw (13-10120)

8шт.

NSS

NOT SOLD SEPARAT

5/8" - 11 NC hex. lock nut (131-356)

8шт.

D27665

BRACKET - support arm (Used on units with model "31" loader only)

2шт.

NSS

NOT SOLD SEPARAT

5/8" - 11 NC x 8" hex. head cap screw (13-10128)

8шт.

NSS

NOT SOLD SEPARAT

5/8" lockwasher (192-165)

8шт.

NSS

NOT SOLD SEPARAT

5/8" hex. nut (25-1010)

8шт.

D28298

CHAIN - transport, lock

2шт.

D29333

SHIELD - control rods (See Figure 20 for breakdown)

1шт.

D29347

FRAME - mounting (Includes 1-D21927 bushing, 1-D24431 snap ring, 1-D23601 bushing, 4-30634 bushings, and 2-D28298 chains)

1шт.

32838

SHOE (ASSY)

PAD - rubber, D23326 stabilizer foot (Optional)

4шт.

NSS

NOT SOLD SEPARAT

7/16" - 20 NF hex. nut (25-277), stabilizers

8шт.

D23313

FOOT

- stabilizer (Cleated bottom - standard) See D23326

2шт.

D23326

FOOT

- stabilizer (Flat bottom - optional) See D23313

2шт.

D25079

AXLE PIN,44.45mm OD x 157.2mm L

PIN - pivot, stabilizer, Serial Range: cylinder-frame

2шт.

D25279

SNAP RING,M35, Int

- D28037 pin, stabilizers

4шт.

D25280

SNAP RING,#175, Ext

RING, Snap, , D25079 and D27187 pins, stabilizers #175, Ext

8шт.

D26104

PIN

- pivot, stabilizer leg to foot (Includes 2-D26918 snap rings)

2шт.

D26908

SUPPORT

LEG - stabilizer, L.H.

1шт.

D26909

HOSE

LEG - stabilizer, R.H.

1шт.

D26918

SNAP RING,#125, Ext

RING, Snap, , D26104 pin, stabilizers #125, Ext

4шт.

D27187

AXLE PIN

PIN - pivot, stabilizer, Serial Range: leg-frame

2шт.

D27754

CYLINDER

- hydraulic stabilizer (See Figure 95 for breakdown)

2шт.

D28037

AXLE PIN

PIN - pivot, stabilizer, Serial Range: cylinder-leg

2шт.
