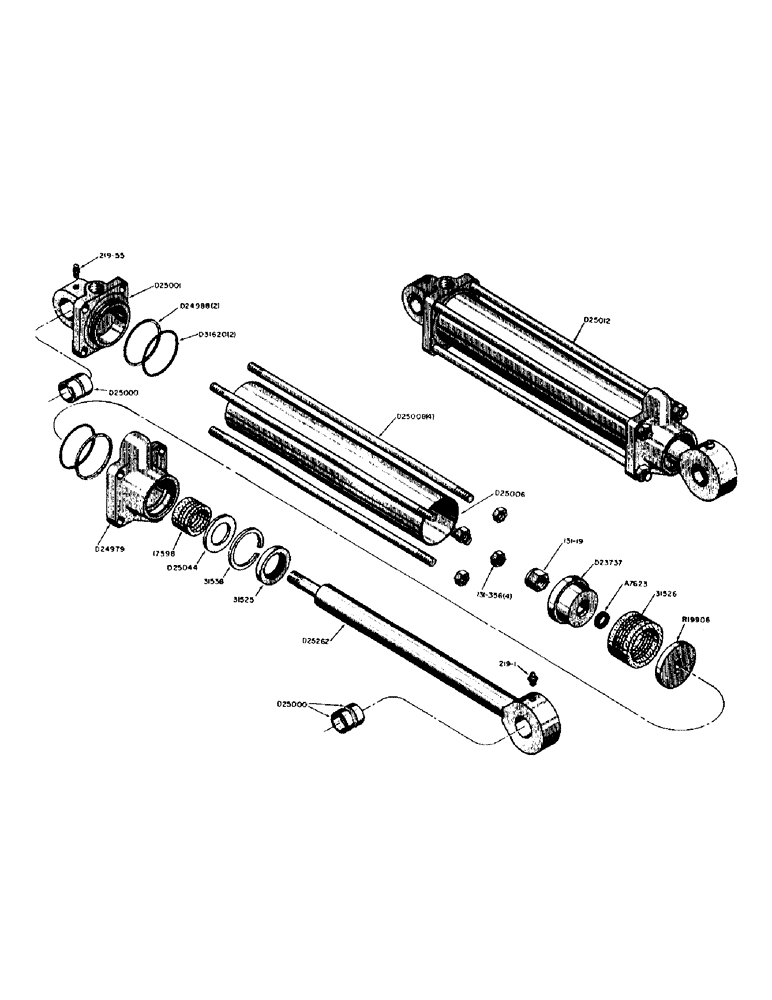

Запчасти Case 31 (100) - D25012 HYDRAULIC CROWD CYLINDER

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring, piston (See D11188)

1шт.

Part of Cylinder Packing Kit P/N D30145

1шт.

17598

PACKING

- piston rod

1шт.

Part of Cylinder Packing Kit P/N D30145

1шт.

31525

WIPER SEAL

- wiper, piston rod

1шт.

Part of Cylinder Packing Kit P/N D30145

1шт.

31526

PACKING

- piston

1шт.

Part of Cylinder Packing Kit P/N D30145

1шт.

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, , piston rod packing washer 2.75", Int, #275

1шт.

Part of Cylinder Packing Kit P/N D30145

1шт.

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL - "O" ring, end and cap

2шт.

Part of Cylinder Packing Kit P/N D30145

1шт.

D11188

KIT

- conversion (D25012, 1" - 14 NF locknut on piston rod) to (D27489, 1-1/4" - 12 NF locknut on piston rod) Includes 1-D27488 piston rod, 1-131-22 locknut, 1-D27199 retaining washer, 1-O9018AB "O" ring, 1-D27198 piston, and 1-31526 piston packing

1шт.

NSS

NOT SOLD SEPARAT

1" - 14 NF locknut (131-19)

1шт.

D23737

PISTON - cylinder (See D11188)

1шт.

D24979

CAP - cylinder end

1шт.

D24988

RING

- leather backup, cap and end

2шт.

Part of Cylinder Packing Kit P/N D30145

1шт.

D25000

BUSHING

- cylinder end and piston rod

4шт.

D25001

END - cylinder (Includes 2-D25000 bushings)

1шт.

NSS

NOT SOLD SEPARAT

1/8" NPT 90 degrees grease fitting (219-55)

1шт.

D25006

TUBE - cylinder

1шт.

D25008

ROD - tie

4шт.

NSS

NOT SOLD SEPARAT

5/8" - 11 NC locknut (131-356)

4шт.

D25012

CYLINDER - crowd, hydraulic (Use D27489) 4" I.D. x 32" stroke

1шт.

D25044

WASHER

- piston rod packing (See D11188)

1шт.

D25262

ROD - piston (Includes 2-D25000 bushings) Use D11188 (2" dia.)

1шт.

NSS

NOT SOLD SEPARAT

1/8" NPT straight grease fitting (219-1)

1шт.

D30145

PACKAGE, REPAIR

KIT - cylinder packing, Includes: P/N A7623, 17598, 31525, 31526, 31538, 31620 and D24988

1шт.

R19906

WASHER - piston packing

1шт.
