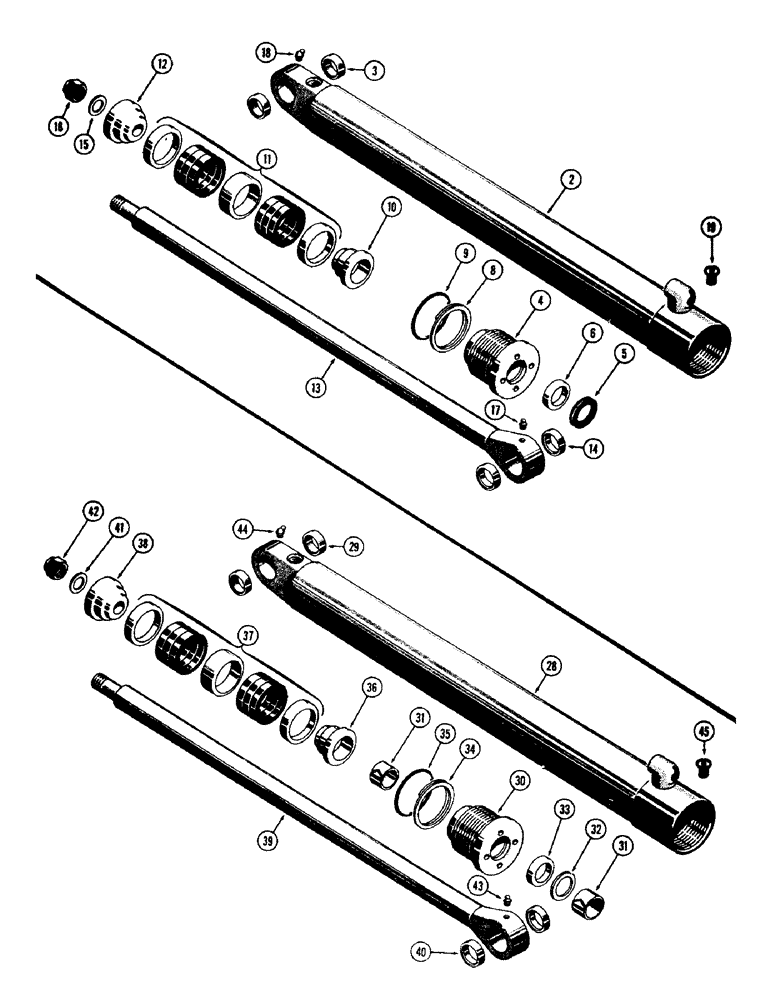

Запчасти Case 31 (099) - G32607 BOOM CYLINDERS, 4" I.D. X 39-3/16" STROKE
№
Артикул
Название
Примечание
Количество
G32607
CYLINDER
- boom (Replaces D27751), Inlucdes: Ref. 2 - 19
1шт.
2
D27768
TUBE - cylinder (G32607 cylinder), Inlcudes: Ref. 3
1шт.
3
D33047
BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L
- tube
2шт.
4
G32800
GLAND
- packing, Includes: Ref. 5 - 9
1шт.
5
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
Wiper - rod, outer
1шт.
Part of Cylinder Packing Kit P/N G32616
1шт.
6
D36971
RING
SEAL - rod
1шт.
Part of Cylinder Packing Kit P/N G32616
1шт.
8
G32176
BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk
"O"
1шт.
Part of Cylinder Packing Kit P/N G32616
1шт.
9
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
"O" RING - gland seal
1шт.
Part of Cylinder Packing Kit P/N G32616
1шт.
10
D28371
PISTON
- rod end half
1шт.
11
D36964
PACKING
- piston
1шт.
Part of Cylinder Packing Kit P/N G32616
1шт.
12
D28370
PISTON
- nut end half
1шт.
13
D27762
YOKE
ROD - piston, 2" dia., Inlucdes: Ref. 14
1шт.
14
D33047
BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L
- rod
2шт.
15
G32351
WASHER
- rod nut
1шт.
17
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, 1/8" P.T., str.
1шт.
18
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
1шт.
19
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - #8-32 x 1/4" sltd., self-tapping
1шт.
G32616
CYLINDER
KIT - cylinder packing, Includes: Ref. 5, 6, 8, 9 and 11
1шт.
D27751
CYLINDER ASSY.
CYLINDER - boom (Order G32607), D27751 boom 4" i.d. x 39-3/16" stroke, Inlcludes: Ref. 28 - 45
1шт.
28
D35434
TUBE
- cylinder (D35435 cylinder), D27751 boom 4" i.d. x 39-3/16" stroke
1шт.
28
D27768
TUBE - cylinder (D27751 cylinder), D27751 boom 4" i.d. x 39-3/16" stroke, Inlucdes: Ref. 29
1шт.
29
D33047
BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L
- tube, D27751 boom cylinders 4" i.d. x 39-3/16" stroke
2шт.
30
D45071
GLAND
- packing, D27751 boom cylinders 4" i.d. x 39-3/16" stroke
1шт.
31
D27380
SCRAPER RING
WIPER - rod, inner & outer, D27751 boom cylinders 4" i.d. x 39-3/16" stroke
2шт.
Part of Cylinder Packing Kit P/N D37358
1шт.
32
D28500
RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk
- back-up, D27751 boom cylinders 4" i.d. x 39-3/16" stroke
1шт.
Part of Cylinder Packing Kit P/N D37358
1шт.
33
D36971
RING
SEAL - rod, D27751 boom cylinders 4" i.d. x 39-3/16" stroke
1шт.
Part of Cylinder Packing Kit P/N D37358
1шт.
34
D36095
BACK-UP RING
- "O" ring back-up, D27751 boom cylinders 4" i.d. x 39-3/16" stroke
1шт.
Part of Cylinder Packing Kit P/N D37358
1шт.
35
A27507
O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro
"O" RING - gland seal, D27751 boom cylinders 4" i.d. x 39-3/16" stroke
1шт.
Part of Cylinder Packing Kit P/N D37358
1шт.
36
D46424
PISTON
- rod end half, D27751 boom cylinders 4" i.d. x 39-3/16" stroke
1шт.
37
D36964
PACKING
- piston, D27751 boom cylinders 4" i.d. x 39-3/16" stroke
1шт.
Part of Cylinder Packing Kit P/N D37358
1шт.
38
D46930
PISTON
- nut end half, D27751 boom cylinders 4" i.d. x 39-3/16" stroke
1шт.
39
D27762
YOKE
ROD - piston, 2" dia., D27751 boom cylinders 4" i.d. x 39-3/16" stroke, Includes: Ref. 40
1шт.
40
D33047
BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L
- rod, D27751 boom cylinders 4" i.d. x 39-3/16" stroke
2шт.
41
D95033
WASHER
- rod nut, D27751 boom cylinders 4" i.d. x 39-3/16" stroke
1шт.
42
LOCK NUT,1 1/4"-12, GB
NUT, LOCK, , D27751 boom cylinders 4" ID x 39-3/16" stroke 1 1/4"-12, GB
1шт.
43
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, 1/8" P.T., str., D27751 boom cylinders 4" i.d. x 39-3/16" stroke
1шт.
44
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, , D27751 boom cylinders 4" ID x 39-3/16" stroke 90º, 1/8" NPT x .84" lg
1шт.
45
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
SCREW - #8-32 x 1/4" sltd., self-tapping, D27751 boom cylinders 4" i.d. x 39-3/16" stroke
1шт.
D37358
GLAND
KIT - cylinder packing, Includes: Ref. 31, 32, 33, 34, 35 and 37, D27751 boom cylinders 4" ID x 39-3/16" stroke
1шт.
Выбрано товаров: 51
