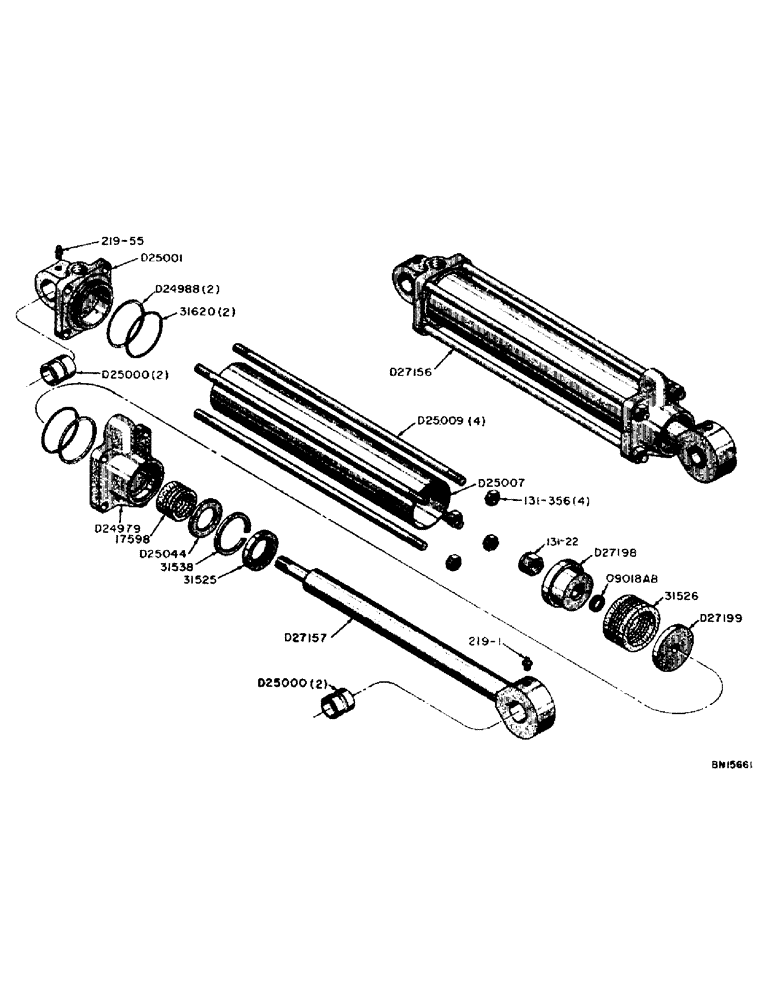

Запчасти Case 31 (098) - D27156 HYDRAULIC BOOM CYLINDER

O9018AB

X

SEAL - "O" ring, piston

1шт.

Part of Cylinder Packing Kit P/N D30145

1шт.

17598

PACKING

- piston rod

1шт.

Part of Cylinder Packing Kit P/N D30145

1шт.

31525

WIPER SEAL

- wiper, piston rod

1шт.

Part of Cylinder Packing Kit P/N D30145

1шт.

31526

PACKING

- piston

1шт.

Part of Cylinder Packing Kit P/N D30145

1шт.

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, , piston rod packing washer 2.75", Int, #275

1шт.

Part of Cylinder Packing Kit P/N D30145

1шт.

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL - "O" ring, cylinder end

2шт.

Part of Cylinder Packing Kit P/N D30145

1шт.

D24979

CAP - cylinder end

1шт.

D24988

RING

- leather backup, cylinder end

2шт.

Part of Cylinder Packing Kit P/N D30145

1шт.

D25000

BUSHING

- cylinder end and piston rod

4шт.

D25001

END - cylinder (Includes 2-D25000 bushings)

1шт.

NSS

NOT SOLD SEPARAT

1/8" NPT 90 degrees grease fitting (219-55)

1шт.

D25007

TUBE - cylinder

1шт.

D25009

ROD - tie

4шт.

NSS

NOT SOLD SEPARAT

5/8" - 11 NC locknut (131-356)

4шт.

D25044

WASHER

- piston rod packing

1шт.

D27156

CYLINDER ASSY.

CYLINDER - boom, hydraulic (2" dia. piston rod) 4" I.D. x 39-3/16" stroke

1шт.

D27157

ROD - piston (Includes 2-D25000 bushings) 2" dia.

1шт.

NSS

NOT SOLD SEPARAT

1/8" NPT straight grease fitting (219-1)

1шт.

D27198

PISTON - cylinder

1шт.

D27199

WASHER - piston packing

1шт.

NSS

NOT SOLD SEPARAT

1-1/4" - 12 NF locknut (131-22)

1шт.

D30145

PACKAGE, REPAIR

KIT - cylinder packing, Includes: P/N O9018AB, 17598, 31525, 31526, 31538, 31620 and D24988

1шт.
