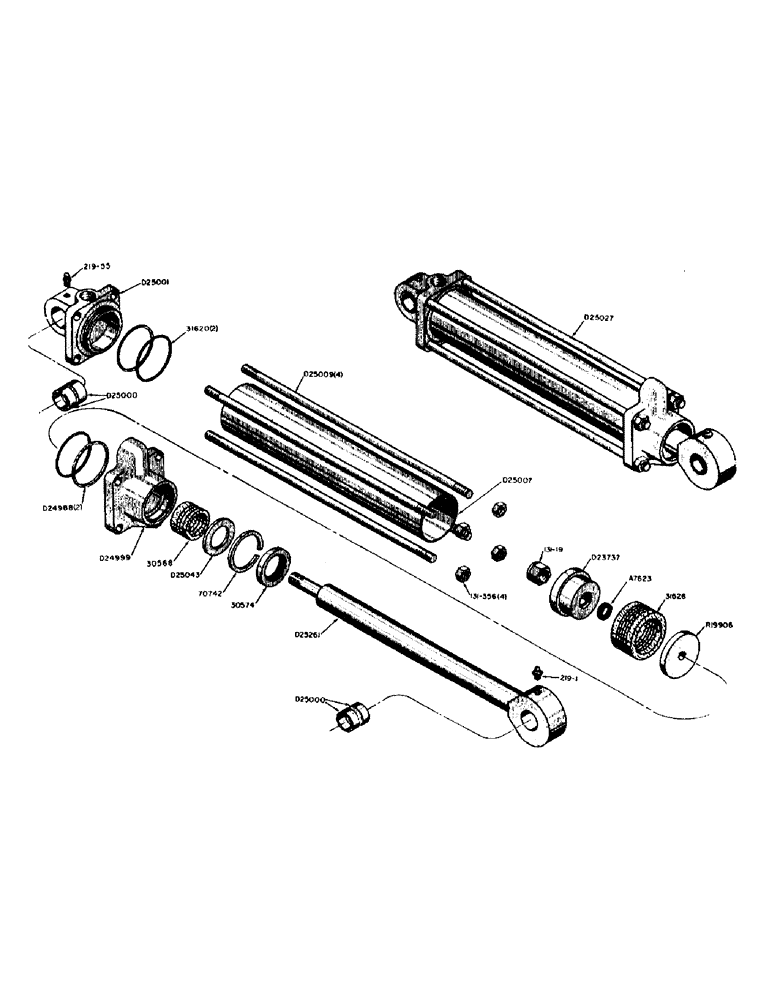

Запчасти Case 31 (096) - D25027 HYDRAULIC BOOM CYLINDER

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring, piston (See D11187)

1шт.

Part of Cylinder Packing Kit P/N D30144

1шт.

30568

PACKING

- piston rod (See D11187)

1шт.

Part of Cylinder Packing Kit P/N D30144

1шт.

30574

WIPER SEAL

SEAL - wiper, piston rod (See D11187)

1шт.

Part of Cylinder Packing Kit P/N D30144

1шт.

31526

PACKING

- piston

1шт.

Part of Cylinder Packing Kit P/N D30144

1шт.

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL - "O" ring, end and cap

2шт.

Part of Cylinder Packing Kit P/N D30144

1шт.

70742

WASHER

2.50", Int, #250, seal, piston rod, see D11187

1шт.

Part of Cylinder Packing Kit P/N D30144

1шт.

D11187

KIT

1шт.

KIT - conversion (Converts D25027 cylinder - 1-3/4" dia. piston rod, to D27156 cylinder - 2" dia. piston rod) (Includes 1-D27157 piston rod, 1-31525 wiper seal, 1-D25044 washer, 1-17598 rod packing, 1-D24979 end cap, 1-131-22 locknut, 1-D27199 retainer washer, 1-O9018AB "O" ring, 1-D27198 piston, 1-31538 snap ring, 1-31526 piston packing, 1-D24988 backup ring, 1-31620 "O" ring, and 1-D27562 plug

1шт.

NSS

NOT SOLD SEPARAT

1" - 14 NF locknut (131-19) See 11187

1шт.

D23737

PISTON - cylinder (See D11187)

1шт.

D24988

RING

- leather backup, end and cap

2шт.

Part of Cylinder Packing Kit P/N D30144

1шт.

D24999

CAP - end (See D11187)

1шт.

D25000

BUSHING

- cylinder end and piston rod

4шт.

D25001

END - cylinder (Includes 2-D25000 bushings)

1шт.

NSS

NOT SOLD SEPARAT

1/8" NPT 90 degrees grease fitting (219-55)

1шт.

D25007

TUBE - cylinder

1шт.

D25009

ROD - tie

4шт.

NSS

NOT SOLD SEPARAT

5/8" - 11 NC locknut (131-356)

4шт.

D25027

CYLINDER - hydraulic, boom (Use D27156) 4" I.D. x 39-3/16" stroke

1шт.

D25043

WASHER

- piston rod packing (See D11187)

1шт.

D25261

ROD - piston, 1-3/4" dia. (Includes 2-D25000 bushings) Use D11187

1шт.

NSS

NOT SOLD SEPARAT

1/8" NPT straight grease fitting (219-1)

1шт.

D30144

PACKAGE, REPAIR

KIT - cylinder packing, Includes: P/N A7623, 30568, 30574, 31526, 31620, 70742 and D24988

1шт.

R19906

WASHER - piston packing (See D11187)

1шт.
