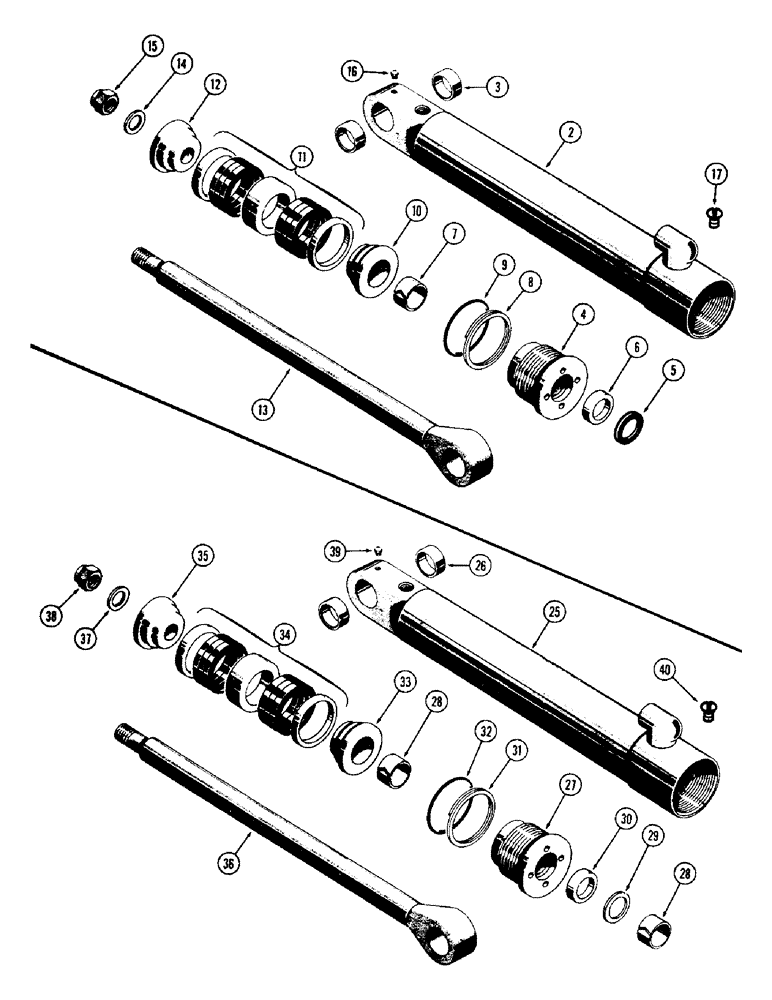

Запчасти Case 31 (095) - G32595 STABILIZER CYLINDER, 3-1/2" I.D. X 16-3/8" STROKE

G32595

CYLINDER

- stabilizer (Replaces D27754), Includes: Ref. 2 - 17

2шт.

2

D27765

TUBE

- cylinder, Inlucdes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

4

G32743

GLAND

- packing, Inlcudes: Ref. 5 - 9

1шт.

5

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer

1шт.

Part of Cylinder Packing Kit P/N G32291

1шт.

6

D36970

CUP

SEAL - rod

1шт.

Part of Cylinder Packing Kit P/N G32291

1шт.

7

D27432

SHIM

- rod, inner

1шт.

Part of Cylinder Packing Kit P/N G32291

1шт.

8

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- "O" ring back-up

1шт.

Part of Cylinder Packing Kit P/N G32291

1шт.

9

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland seal

1шт.

Part of Cylinder Packing Kit P/N G32291

1шт.

10

D28369

PISTON

- rod end half

1шт.

11

G33237

PACKING

- piston seal

1шт.

Part of Cylinder Packing Kit P/N G32291

1шт.

12

D28367

PISTON

- nut end half

1шт.

13

D27760

ROD

- piston, 1-3/4" dia.

1шт.

14

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- rod nut

1шт.

15

131-19

LOCK NUT,1"-14, GB

NUT - 1" N.F. hex., lock

1шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str.

1шт.

17

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8-32 x 1/4" sltd. self-tapping

1шт.

G32291

CYLINDER

KIT - cylinder packing, Includes: Ref. 5, 6, 7, 8, 9 and 11

1шт.

D27754

CYLINDER

- stabilizer (Order G32595), Includes: Ref. 25 - 40

1шт.

25

D27765

TUBE

- cylinder, D27754 stabilizer 3-1/2" i.d. x 16-3/8" stroke, Inlcudes: Ref. 26

1шт.

26

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube, D27754 stabilizer cylinder 3-1/2" i.d. x16-3/8" stroke

2шт.

26

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube, D27754 stabilizer cylinder 3-1/2" i.d. x 16-3/8" stroke

2шт.

27

D45069

GLAND

- packing, D27754 stabilizer cylinder 3-1/2" i.d. x 16-3/8" stroke

1шт.

28

D27432

SHIM

- rod, inner & outer, D27754 stabilizer cylinder 3-1/2" i.d. x 16-3/8" stroke

2шт.

Part of Cylinder Packing Kit P/N D37356

1шт.

29

D28499

RING

- back-up, D27754 stabilizer cylinder 3-1/2" i.d. x 16-3/8" stroke

1шт.

Part of Cylinder Packing Kit P/N D37356

1шт.

30

D36970

CUP

SEAL - rod, D27754 stabilizer cylinder 3-1/2" i.d. x 16-3/8" stroke

1шт.

Part of Cylinder Packing Kit P/N D37356

1шт.

31

D36094

WASHER

RING - "O" ring back-up, D27754 stabilizer cylinder 3-1/2" i.d. x16-3/8" stroke

1шт.

Part of Cylinder Packing Kit P/N D37356

1шт.

32

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

"O" RING - gland seal, D27754 stabilizer cylinder 3-1/2" i.d. x 16-3/8" stroke

1шт.

Part of Cylinder Packing Kit P/N D37356

1шт.

33

D28369

PISTON

- rod end, D27754 stabilizer cylinder 3-1/2" i.d. x 16-3/8" stroke

1шт.

34

G33237

PACKING

- piston seal, D27754 stabilizer cylinder 3-1/2" i.d. x 16-3/8" stroke

1шт.

Part of Cylinder Packing Kit P/N D37356

1шт.

35

D28367

PISTON

- bolt end, D27754 stabilizer cylinder 3-1/2" i.d. x 16-3/8" stroke

1шт.

36

D27760

ROD

- piston, 1-3/4" dia., D27754 stabilizer cylinder 3-1/2" i.d. x 16-3/8" stroke

1шт.

37

D95032

WASHER

- rod nut, D27754 stabilizer cylinder 3-1/2" i.d. x 16-3/8" stroke

1шт.

38

131-19

LOCK NUT,1"-14, GB

NUT - 1" N.F. hex., lock, D27754 stabilizer cylinder 3-1/2" i.d. x 16-3/8" stroke

1шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T. str., D27754 stabilizer cylinder 3-1/2" i.d. x 16-3/8" stroke

1шт.

40

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8-32 x 1/4" sltd. self-tapping, D27754 stabilizer cylinder 3-1/2" i.d. x 16-3/8" stroke

1шт.

D37356

GLAND

KIT - cylinder packing, Includes: Ref. 28, 29, 30, 31, 32 and 34, D27754 stabilizer 3-1/2" i.d. x 16-3/8" stroke

1шт.
