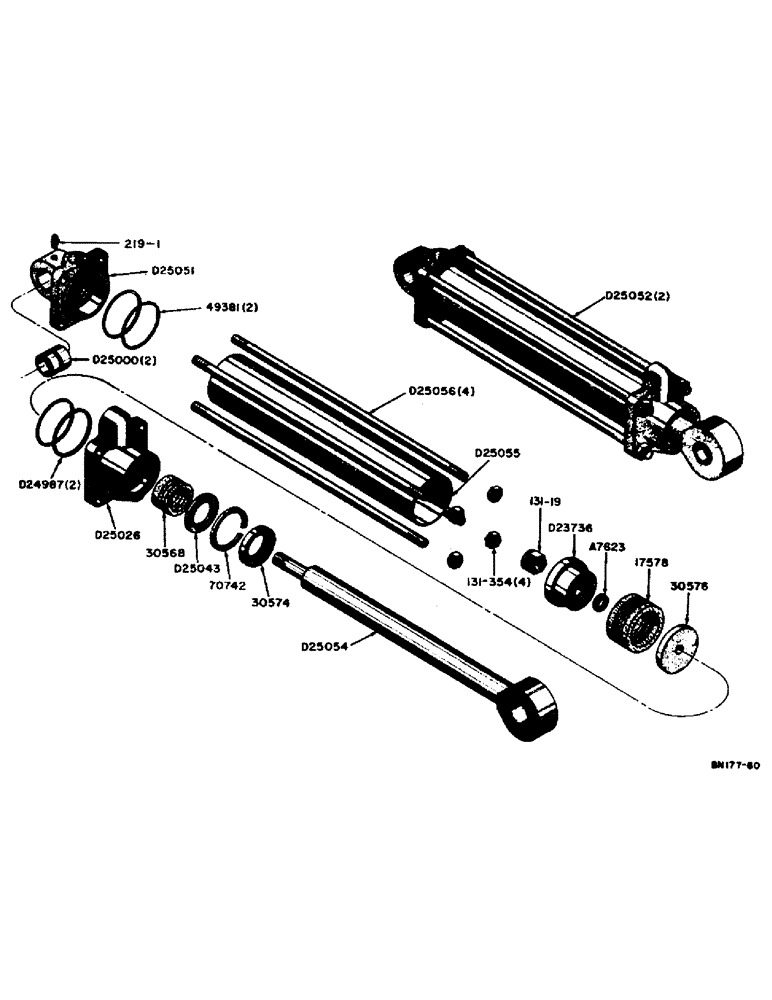

Запчасти Case 31 (094) - D25052 HYDRAULIC STABILIZER CYLINDERS

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O" ring, piston

1шт.

Part of Cylinder Packing Kit P/N D30142

1шт.

17578

PACKING

- piston

1шт.

Part of Cylinder Packing Kit P/N D30142

1шт.

30568

PACKING

- piston rod

1шт.

Part of Cylinder Packing Kit P/N D30142

1шт.

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

Part of Cylinder Packing Kit P/N D30142

1шт.

NLS

NO LONGER SERVICED

WASHER - packing, piston

1шт.

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "O" ring, cylinder ends to tube

2шт.

Part of Cylinder Packing Kit P/N D30142

1шт.

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

Part of Cylinder Packing Kit P/N D30142

1шт.

1" - 14 NF special locknut (131-19)

1шт.

D23736

PISTON - cylinder

1шт.

D24987

RING

- leather backup

2шт.

Part of Cylinder Packing Kit P/N D30142

1шт.

D25000

BUSHING

- cylinder end

2шт.

D25026

CAP - cylinder end

1шт.

D25043

WASHER

- piston rod packing

1шт.

D25051

END - cylinder (Includes 2-D25000 bushings)

1шт.

1/8" NPT straight grease fitting (219-1)

1шт.

D25052

CYLINDER - stabilizer (3-1/2" I.D. x 16-3/8" stroke)

2шт.

D25054

ROD - piston (1-3/4" dia.)

1шт.

D25055

TUBE - cylinder

1шт.

D25056

ROD - tie

4шт.

1/2" - 13 NC hex. locknut (131-354)

4шт.

D30142

KIT

- cylinder packing, Includes: P/N A7623, 17578, 30568, 30574, 49381, 70742 and D24987

1шт.
