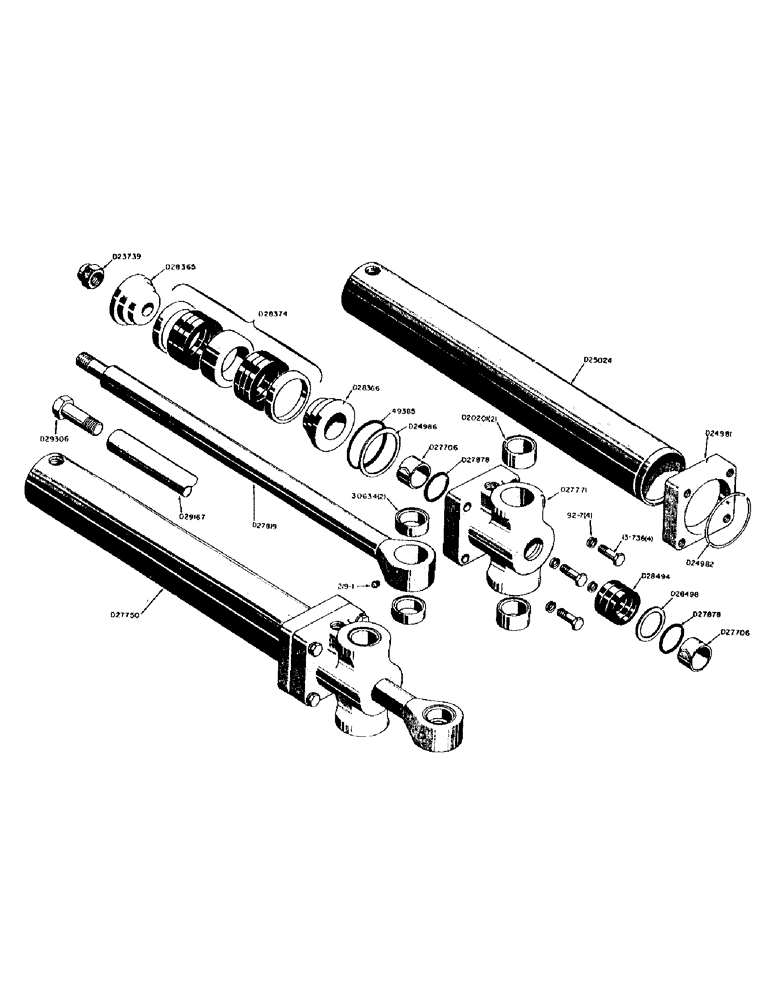

Запчасти Case 31 (092) - D27750 HYDRAULIC SWING CYLINDERS

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- rod eye

2шт.

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring, cylinder tube

1шт.

Part of Cylinder Packing Kit P/N D30130

1шт.

D20201

BUSHING

- end cap

2шт.

D23739

LOCK NUT

NUT - lock, 3/4" - 16 NF (Used with D27819 rod - see D29306)

1шт.

Part of Cylinder Packing Kit P/N D30130

1шт.

D24981

COLLAR - tube

1шт.

D24982

RING, SNAP

SNAP RING -, Serial Range: collar-tube

1шт.

D24986

RING

- backup, tube seal

1шт.

Part of Cylinder Packing Kit P/N D30130

1шт.

D25024

TUBE - cylinder (Includes end)

1шт.

D27706

WIPER SEAL

SEAL - wiper, piston rod (Use as required)

1-2шт.

Part of Cylinder Packing Kit P/N D30130

1шт.

D27750

CYLINDER ASSY.

CYLINDER - swing, hydraulic (3" I.D. x 15-11/16" stroke)

2шт.

D27771

CAP

- end, cylinder (Includes 2-D20201 bushings)

1шт.

7/16" - 14 NC x 2-1/4" hex. head cap screw (13-736)

4шт.

7/16" lockwasher (92-7)

4шт.

D27819

ROD - piston (Includes 2-30634 bushings) Use D29167 rod and D29306 cap screw (1-1/2" dia.)

1шт.

1/8" NPT straight grease fitting (219-1)

1шт.

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, piston rod (Use as required)

1-2шт.

Part of Cylinder Packing Kit P/N D30130

1шт.

D28365

PISTON

- half, rear

1шт.

D28366

PISTON

- half, front

1шт.

D28374

PACKAGE,SERVICE

PACKING - kit, piston (Includes chevrons and spacers)

1шт.

Part of Cylinder Packing Kit P/N D30130

1шт.

D28494

SEAL

- piston rod

1шт.

Part of Cylinder Packing Kit P/N D30130

1шт.

D28498

RING

- backup, rod seal

1шт.

Part of Cylinder Packing Kit P/N D30130

1шт.

D29167

ROD - piston (Includes 2-30634 bushings) When replacing D27819 rod also order 1-D29306 cap screw

1шт.

D29306

BOLT

SCREW - cap, special (3/4" - 16 NF x 2-1/2")

1шт.

Part of Cylinder Packing Kit P/N D30130

1шт.

D30130

X

KIT - cylinder packing, Includes: P/N 49385, D23739, D24986, D27706, D27878, D28374, D28494, D28498 and D29306

1шт.
