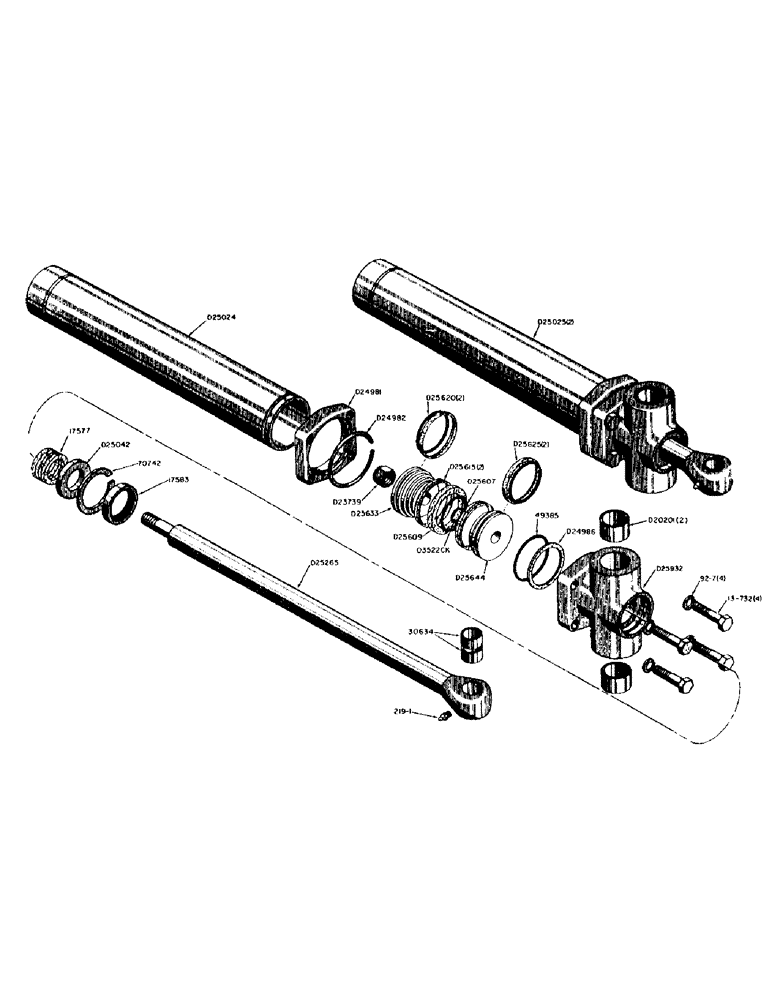

Запчасти Case 31 (090) - D25025 HYDRAULIC SWING CYLINDERS

O3522CK

X

SEAL - "O" ring, piston rod (Not required) See service bulletin 47-60

1шт.

17577

PACKING

- piston rod

1шт.

Part of Cylinder Packing Kit P/N D30139

1шт.

17583

WIPER SEAL

- wiper, piston rod

1шт.

Part of Cylinder Packing Kit P/N D30139

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring, cylinder tube

1шт.

Part of Cylinder Packing Kit P/N D30139

1шт.

70742

WASHER

2.50", Int, #250, seal, piston rod

1шт.

Part of Cylinder Packing Kit P/N D30139

1шт.

D20201

BUSHING

- cylinder end cap

2шт.

D23739

LOCK NUT

NUT - lock (3/4" - 16 NF)

1шт.

Part of Cylinder Packing Kit P/N D30139

1шт.

D24981

COLLAR - tube

1шт.

D24982

RING, SNAP

SNAP RING -, Serial Range: collar-tube

1шт.

D24986

RING

- backup, leather

1шт.

Part of Cylinder Packing Kit P/N D30139

1шт.

D25024

TUBE - cylinder (Includes cylinder end)

1шт.

D25025

CYLINDER - swing, hydraulic (Complete) 3" I.D. x 15-11/16" stroke

2шт.

D25042

WASHER

- packing, piston rod

1шт.

D25265

YOKE

ROD - piston, 1-1/2" dia. (Includes 2-30634 bushings)

1шт.

1/8" NPT straight grease fitting (219-1)

1шт.

D25607

SEAL - "O" ring, piston (Not required) See service bulletin 47-60

1шт.

D25609

SEAL ASSY.

SEAL - bearing, piston

1шт.

Part of Cylinder Packing Kit P/N D30139

1шт.

D25615

SEALING RING

RING - seal, piston

2шт.

Part of Cylinder Packing Kit P/N D30139

1шт.

D25620

X

SEAL - "O" ring, piston wiper

2шт.

Part of Cylinder Packing Kit P/N D30139

1шт.

D25625

RING

- wiper, piston

2шт.

Part of Cylinder Packing Kit P/N D30139

1шт.

D25633

PISTON - half (Nut end)

1шт.

D25644

PISTON - half (Rod end)

1шт.

D25932

CAP - end, cylinder (Includes 2-D20201 bushings)

1шт.

7/16" - 13 NC x 2" hex. head cap screw (13-732)

4шт.

7/16" lockwasher (92-7)

4шт.

D30139

PACKAGE, REPAIR

KIT - cylinder packing, Includes: P/N 17577, 17583, 49385, 70742, D23739, D24986, D25609, D25615, D25620 and D25625

1шт.
