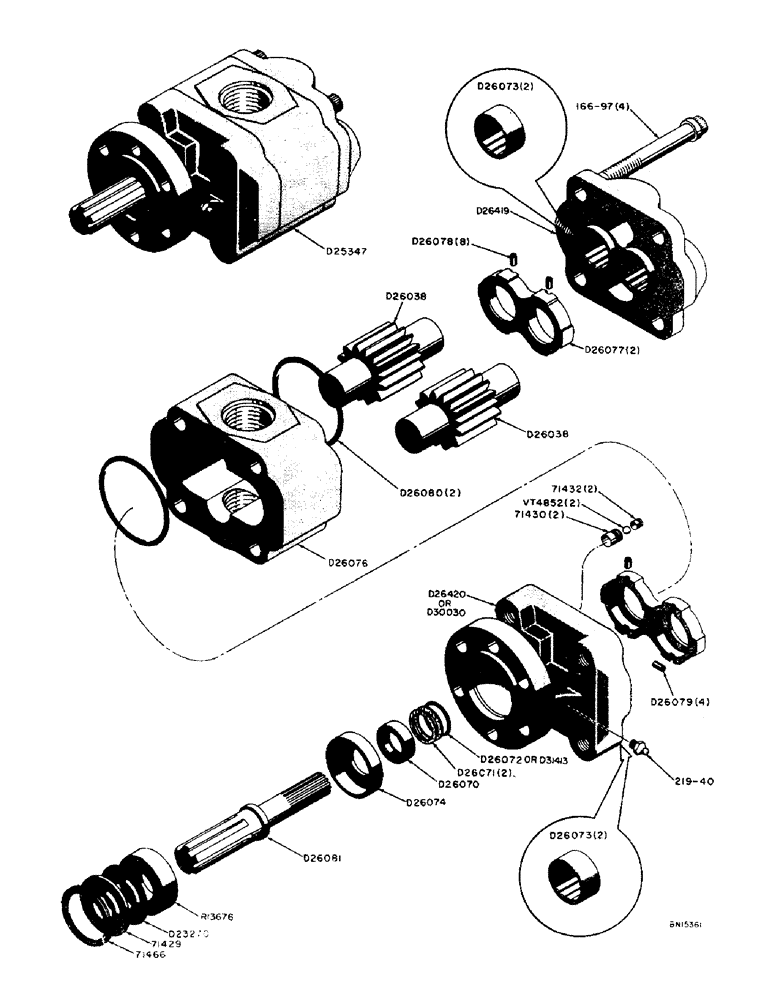

Запчасти Case 31 (088) - D25347 HYDRAULIC PUMP (21 G.P.M.) WHEEL TRACTOR

VT4852

X

BALL - check (D26420 cover only) 5/32" dia. (Use 211-4)

2шт.

NSS

NOT SOLD SEPARAT

BALL - check (D26420 cover only) 5/32" dia. (211-4)

2шт.

71429

BEARING COVER

SHIELD - bearing

1шт.

71430

TOOL

SEAT - check valve (D26420 cover only)

2шт.

71432

TOOL

RETAINER - check valve (D26420 cover only)

2шт.

71466

SNAP RING,#206, 2.190", Int, Spiral

- bearing shield

1шт.

18-970

BALL BEARING

BEARING - ball, driveshaft (Use R13676)

1шт.

D23270

X

SEAL - bearing

1шт.

D25347

PUMP, HYDRAULIC

PUMP - hydraulic, loader and backhoe (Commercial shering #P15H302BEVC17-9)

1шт.

D26038

KIT - gear, drive and driven

1шт.

D26069

COVER - shaft end (Use D26420)

1шт.

NSS

NOT SOLD SEPARAT

1/8" NPT, 67-1/2 degrees grease fitting (219-40)

1шт.

D26070

OIL RESERVOIR

SEAL - oil

1шт.

D26071

RING

- backup

2шт.

D26072

X

SEAL - "O" ring, driveshaft (When stock is exhausted use D31413)

1шт.

D26073

ROLLER BEARING,28.575 mm ID x 41.275 mm OD x 25.4 mm

BEARING - roller

4шт.

D26074

SPACER

- ball bearing

1шт.

D26075

COVER - port end (Use D26419)

1шт.

NSS

NOT SOLD SEPARAT

1/2" - 13 NC x 4-1/2" counterbore ferry cap screw (166-97)

4шт.

D26076

HOUSING - gear

1шт.

D26077

LARGE PLATE

PLATE - thrust

2шт.

D26078

X

SEAL - pocket, thrust plate (Short) Use D30031

8шт.

D26079

X

SEAL - pocket, thrust plate (Long) Use D30031

4шт.

D26080

O-RING

SEAL - "O" ring

2шт.

D26081

SHAFT - pump drive

1шт.

D26419

COVER - port end (Includes 2-D26073 bearings)

1шт.

D26420

COVER - shaft end (Includes 2-211-4 check balls, 2-71430 seats, 2-71432 retainers, and 2-D26073 bearings) When stock is exhausted use D30030

1шт.

D30030

COVER - shaft end (Includes 1-83-76 set screw)

1шт.

NSS

NOT SOLD SEPARAT

SCREW - set, socket head (High pressure side of D30030 cover) (83-76) Not shown

1шт.

D30031

SEAL

STRIP - pocket seal (5" long) Not shown

1шт.

D31413

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

SEAL - "O" ring, driveshaft

1шт.

R13676

BALL BEARING

BEARING - ball, driveshaft

1шт.
