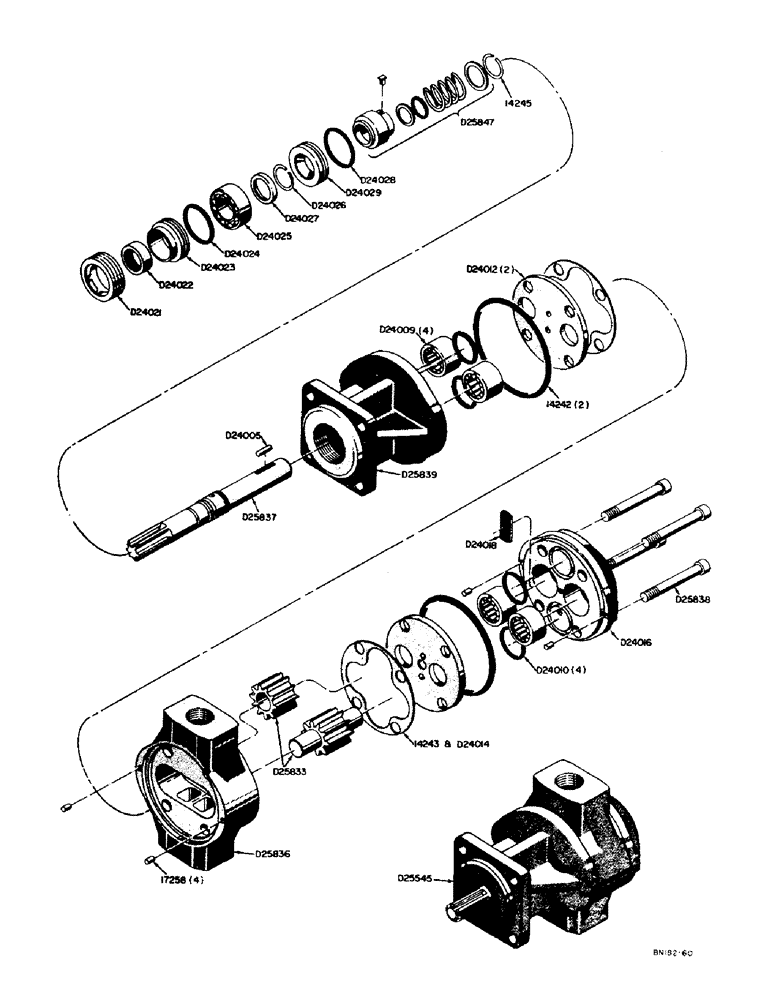

Запчасти Case 31 (086) - D25545 HYDRAULIC PUMP (19 G.P.M.) WHEEL TRACTOR

NLS

NO LONGER SERVICED

SEAL - "O" ring, covers and gear plate

2шт.

NLS

NO LONGER SERVICED

SHIM - gear and wear plates (.001") See D24014

1шт.

14245

RING, SNAP

SNAP RING - sleeve

1шт.

17258

AXLE PIN

PIN - dowel, covers to gear box plate

4шт.

D24005

PIN

KEY - drive gear (Dowel pin type)

1шт.

D24009

BEARING

- needle, front and rear covers

4шт.

D24010

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

SEAL - "O" ring, front and rear covers

4шт.

D24012

PLATE - wear

2шт.

D24014

SHIM,.002" Thk

Gear and wear plates, See 14243 .002" Thk

1шт.

D24016

COVER

- front (Includes 2-D24009 bearings and 1-D24018 washer)

1шт.

D24018

WASHER

- thrust

1шт.

D24021

RETAINER - wiper seal

1шт.

D24022

SEAL ASSY.

SEAL - wiper, oil

1шт.

D24023

SLEEVE CYLINDER

SLEEVE - wiper seal

1шт.

D24024

O-RING

SEAL - "O" ring, sleeve

1шт.

D24025

BEARING

- ball, thrust

1шт.

D24026

RING, SNAP

SNAP RING - bearing

1шт.

D24027

RETAINER

- snap ring

1шт.

D24028

O-RING

SEAL - "O" ring, seat

1шт.

D24029

SEAL

SEAT - "O" ring (Includes 1-D24028 "O" ring)

1шт.

D25545

PUMP - hydraulic, backhoe (Hydreco #2012A4A1AL)

1шт.

D25833

GEARS - kit of, drive and driven

1шт.

D25836

PLATE - gear

1шт.

D25837

SHAFT - pump drive

1шт.

D25838

SCREW - cap, special

4шт.

D25839

COVER - rear (Includes 2-D24009 bearings)

1шт.

D25847

SEAL ASSY.

SEAL ASSEMBLY - driveshaft

1шт.

D25848

SNAP RING - sleeve (Use 14245)

1шт.
