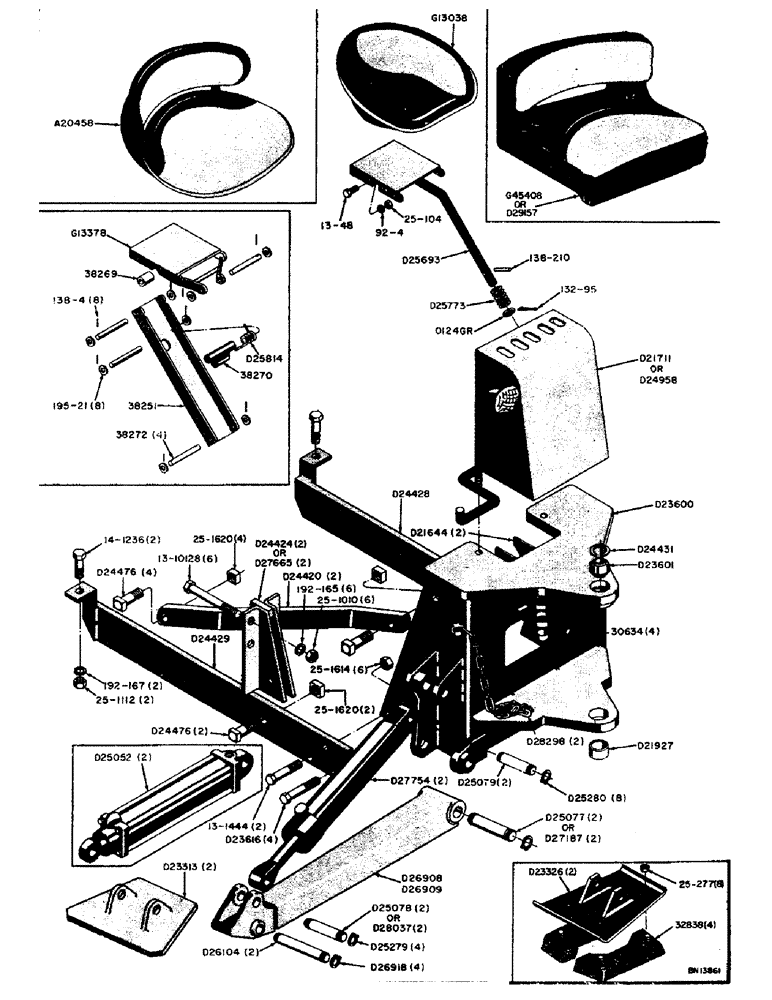

Запчасти Case 31 (004) - MOUNTING PARTS, SEAT, AND STABILIZERS (WHEEL TRACTOR) BEFORE BACKHOE S/N 4065701 MOUNTING PARTS

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- swing, Serial Range: cylinder-frame

4шт.

D21644

BRACKET - 38251 seat brace mounting, Serial Range: (Welded-frame)

2шт.

D21711

SHIELD - control rods (Before backhoe serial no. 4058655 - see see D24958) See Figure 018 for breakdown

1шт.

D21927

BUSHING,51.03mm ID x 63.45mm OD x 50.8mm L

- lower swing, Serial Range: tower-frame

1шт.

D23600

FRAME - mounting (Includes 1-D21927 bushing, 1-D24431 snap ring, 1-D23601 bushing, 4-30634 bushings, and 2-D28298 chains)

1шт.

When ordering D23600 mounting frame for a backhoe with 38251 seat brace, also order 2-D21644 brackets.

1шт.

D23601

HOUSING

BUSHING ASSEMBLY - upper swing, pivotal ball type

1шт.

D23616

BOLT (SPREADER)

BOLT - body fit (7/8" - 9 NC x 2-1/2")

4шт.

NSS

NOT SOLD SEPARAT

7/8" - 9 NC hex. nut (25-1614)

4шт.

D24420

BRACE - stabilizer

2шт.

D24424

BRACKET - support arm (Before backhoe serial no. 4058655 - see D27665)

2шт.

NSS

NOT SOLD SEPARAT

5/8" - 11 NC x 8" hex. head cap screw (13-10128)

6шт.

NSS

NOT SOLD SEPARAT

5/8" lockwasher (192-165)

6шт.

NSS

NOT SOLD SEPARAT

5/8" - 11 NC hex. nut (25-1010)

6шт.

D24428

ARM - support, R.H.

1шт.

D24429

ARM - support, L.H.

1шт.

NSS

NOT SOLD SEPARAT

7/8" - 9 NC x 2-3/4" hex. head cap screw (13-1444)

2шт.

NSS

NOT SOLD SEPARAT

7/8" - 9 NC hex. nut (25-1614)

2шт.

NSS

NOT SOLD SEPARAT

3/4" - 16 NF x 2-1/4" hex. head cap screw (14-1236)

2шт.

NSS

NOT SOLD SEPARAT

3/4" lockwasher (192-167)

2шт.

NSS

NOT SOLD SEPARAT

3/4" - 16 NF hex. nut (25-1112)

2шт.

D24431

RING

- retaining, bushing

1шт.

D24476

X

BOLT - special, 1-1/4" - 7 NC x 3-1/4"

6шт.

NSS

NOT SOLD SEPARAT

1-1/4" - 7 NC hex. nut (25-1620)

6шт.

D24958

SHIELD - control rods (Backhoe serial no. 4058655 and after) See Figure 018 for breakdown (See D21711)

1шт.

D25741

CHAIN - transport, lock (Use D28298)

2шт.

D27665

BRACKET - support arm (Backhoe serial no. 4058655 and after) See D24424

2шт.

NSS

NOT SOLD SEPARAT

5/8" - 11 NC x 8" hex. head cap screw (13-10128)

8шт.

NSS

NOT SOLD SEPARAT

5/8" lockwasher (192-165)

8шт.

NSS

NOT SOLD SEPARAT

5/8" - 11 NC hex. nut (25-1010)

8шт.

D28298

CHAIN - transport, lock (Heavy duty)

2шт.

A20458

SEAT

- deluxe, optional (Includes guide and lock assembly) Use D29157 - also see G45408 (See Figure 120 for breakdown)

1шт.

G13038

SEAT - standard (Includes guide and lock assembly) See A20458, G45408, and D29157, seat (before backhoe s/n 4058655)

1шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 NC x 1/2" hex. head cap screw (13-48), seat (before backhoe s/n 4058655)

1шт.

NSS

NOT SOLD SEPARAT

1/4" lockwasher (92-4), seat (before backhoe s/n 4058655)

1шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 NC hex. nut (25-104), seat (before backhoe s/n 4058655)

1шт.

G13378

CHANNEL - seat mounting, (before backhoe s/n 4058655)

1шт.

38251

BRACE - seat, (before backhoe s/n 4058655)

1шт.

38269

SPACER - seat, (before backhoe s/n 4058655)

1шт.

38270

KNIFE

LOCK - seat, (before backhoe s/n 4058655)

1шт.

38272

ROD - seat brace, (before backhoe s/n 4058655)

4шт.

NSS

NOT SOLD SEPARAT

3/32" dia. x 3/4" long roll pin (138-4), seat (before backhoe s/n 4058655)

8шт.

NSS

NOT SOLD SEPARAT

11/32" I.D. washer (195-21), seat (before backhoe s/n 4058655)

8шт.

D25814

SPRING - seat lock, (before backhoe s/n 4058655)

1шт.

G13038

SEAT - standard (Includes guide and lock assembly) See A20458, G45408 and D29157, (backhoe s/n 4058655 and after)

1шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 NC x 1/2" hex. head cap screw (13-48), seat (backhoe s/n 4058655 and after)

1шт.

NSS

NOT SOLD SEPARAT

1/4" lockwasher (92-4), seat (backhoe s/n 4058655 and after)

1шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 NC hex. nut (25-104), seat (backhoe s/n 4058655 and after)

1шт.

G45408

SEAT - deluxe, optional (Includes guide and lock assembly) Use D29157 - also see A20458 (See Figure 119 for breakdown), (backhoe s/n 4058655 and after)

1шт.

O124GR

WASHER

- seat support rod (1-1/32" I.D. x 1-1/2" O.D. x 7/32" thick), (backhoe s/n 4058655 and after)

1шт.

D25693

ROD - seat support (Includes mounting channel), (backhoe s/n 4058655 and after)

1шт.

NSS

NOT SOLD SEPARAT

3/16" dia. x 1-1/2" long cotter pin (132-95), seat (backhoe s/n 4058655 and after)

1шт.

NSS

NOT SOLD SEPARAT

1/2" dia. x 3" long roll pin (138-210), seat, (backhoe s/n 4058655 and after)

1шт.

D25773

SPRING

- seat support rod, (backhoe s/n 4058655 and after)

1шт.

D29157

X

SEAT - deluxe, optional (Includes guide and lock assembly) See A20458 and G45408 (See Figure 119 for breakdown), (backhoe s/n 4058655 and after)

1шт.

32838

SHOE (ASSY)

PAD - rubber, D23326 stabilizer foot (Optional)

4шт.

NSS

NOT SOLD SEPARAT

7/16" - 20 NF hex. nut 925-277), stabilizers

8шт.

D23313

FOOT

- stabilizer (Cleated bottom - standard) See D23326

2шт.

D23326

FOOT

- stabilizer (Flat bottom - optional) See D23313

2шт.

D25036

LEG - stabilizer, R.H. (Used before backhoe serial no. 4043744 - use D26909)

1шт.

D25037

LEG - stabilizer, L.H. (Used before backhoe serial no. 4043744 - use D26908)

1шт.

D25052

CYLINDER - hydraulic stabilizer, with tie rods (When stock is exhausted, order 1-D27754 cylinder, 1- D27859 tube, 1-D29311 hose, 1-D26361 elbow, and 1-D29145 elbow) See Figure 94 for breakdown

2шт.

D25077

PIN - pivot, stabilizer leg to frame (Used before backhoe serial no. 4042953 - use D27187)

2шт.

D25078

PIN

- pivot, stabilizer cylinder to leg (Used before backhoe serial no. 4043744 - use D28037)

2шт.

D25079

AXLE PIN,44.45mm OD x 157.2mm L

PIN - pivot, stabilizer, Serial Range: cylinder-frame

2шт.

D25278

RING, SNAP

SNAP RING - D25994 pin (.062" thick) See D26918, stabilizers

4шт.

D25279

SNAP RING,M35, Int

- D25078 and D28037 pins, stabilizers

4шт.

D25280

SNAP RING,#175, Ext

RING, Snap, , D25079, D25077, and D27187 pins, stabilizers #175, Ext

8шт.

D25994

X

PIN - pivot, stabilizer leg to foot (Use D26104)

2шт.

D26104

PIN

- pivot, stabilizer leg to foot (Includes 2-D26918 snap rings)

2шт.

D26908

SUPPORT

LEG - stabilizer, L.H. (Backhoe serial no. 4043744 and after - see D25037)

1шт.

D26909

HOSE

LEG - stabilizer, R.H. (Backhoe serial no. 4043744 and after - see D25036)

1шт.

D26918

SNAP RING,#125, Ext

RING, Snap, , D26104 pin (.093" thick), stabilizers #125, Ext

4шт.

D27187

AXLE PIN

PIN - pivot, stabilizer leg to frame (Backhoe serial no. 4043744 and after - see D25077)

2шт.

D27754

CYLINDER

- hydraulic stabilizer, without tie rods (See D25052) See Figure 95 for breakdown

2шт.

D27859

TUBE

- to lower port of D27754 stabilizer cylinder (Order when replacing D25052 cylinder with D27754 cylinder) Not shown

2шт.

D28037

AXLE PIN

PIN - pivot, stabilizer cylinder to leg (Backhoe serial no. 4042744 and after - see D25078)

2шт.
