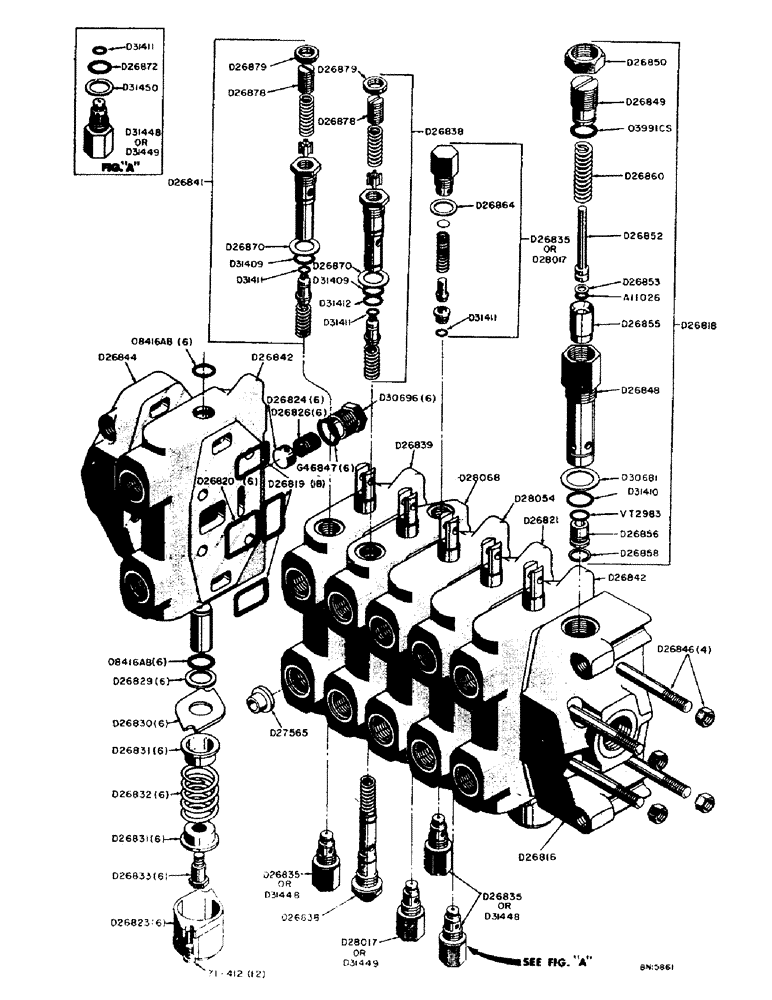

Запчасти Case 31 (078) - D27563 HYDRAULIC CONTROL VALVE

D26816

SECTION - inlet, valve (Includes 1-D26818 main relief valve, 3-D26819 "O" rings, and 1-D26820 "O" rings) See below for breakdown

1шт.

D26818

VALVE - main relief, inlet section (See below for breakdown)

1шт.

D26821

SECTION - bucket (Includes 1-D26835 or D31448 secondary relief valve, 3-D26819 "O" rings, and 1-D26820 "O" ring) See below for breakdown

1шт.

D26835

VALVE - secondary relief, bucket, boom, and swing sections (2-1/16" long) Preset at factory - 2750 P.S.I. (Color code - green) See below for breakdown (For service use D31449)

4шт.

D26838

FILTER

VALVE - cross-over relief, swing section (See below for breakdown)

2шт.

D26839

SECTION - boom (Includes 1-D26835 or D31448 and 1-D26841 secondary relief valves, 3-D26819 "O" rings, and 1-D26820 "O" ring) See below for breakdown

1шт.

D26841

CARTRIDGE

VALVE - secondary relief, boom section (See below for breakdown)

1шт.

D26842

ELEMENT

SECTION - stabilizer (Includes 3-D26819 "O" rings and 1-D26820 "O" ring) See below for breakdown

2шт.

D26844

HALF-COLLAR

SECTION - outlet

1шт.

D26846

STUD

ASSEMBLY - valve tie

4шт.

D27563

LOCK VALVE

VALVE - backhoe control (Complete)

1шт.

D27565

VALVE

CHECK - restrictor, lower port of boom section

1шт.

D28017

VALVE - secondary relief, dipper section (2-3/4" long) Preset at factory - 2750 P.S.I. (Color code - green) See below for breakdown (For service use D31449)

1шт.

D28054

SECTION - crowd (includes 1-D28017 or 1-D31448 secondary relief valve, 3-D26819 "O" rings, and 1-D26820 "O" ring) See below for breakdown

1шт.

D28068

X

SECTION - swing (Includes 2-D26835 or D31448 secondary relief valves, 3-D26819 "O" rings, and 1-D26820 "O" ring) See below for breakdown

1шт.

D31448

VALVE - secondary relief, 2-1/16" long (Preset at factory - 2750 P.S.I.) Color code - green (See below for breakdown) Use D31449

1шт.

D31449

VALVE - secondary relief, 2-3/4" long (Preset at factory - 2750 P.S.I.) Color code - green (See below for breakdown)

1шт.

D26818

VALVE - main relief, D26816 inlet section

1шт.

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "O" ring, inlet section, D26816 valve

3шт.

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, inlet section, D26816 valve

1шт.

A11026

GASKET

SEAL - "O" ring, plunger, D26816 main relief valve

1шт.

VT2983

X

SEAL - "O" ring, poppet, D26816 main relief valve

1шт.

D26848

SHELL - cartridge, D26816 main relief valve

1шт.

D26849

SCREW - spring adjusting, D26816 main relief valve

1шт.

D26850

NUT

- lock, adjusting screw, D26816 main relief valve

1шт.

D26852

PLUNGER - displacement, D26816 main relief valve

1шт.

D26853

BACK-UP RING

RING - backup, plunger seal, D26816 main relief valve

1шт.

D26855

SEAT

- floating, D26816 main relief valve

1шт.

D26856

POPPET - relief valve, D26816 main

1шт.

D26858

RING, SNAP

SNAP RING - poppet retaining, D26816 main relief valve

1шт.

D26860

VALVE SPRING

SPRING - compression, D26816 main relief valve

1шт.

D30681

GASKET

WASHER - gasket, D26816 main relief valve

1шт.

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL - "O" ring, shell and adjusting screw, D26816 main relief valve

2шт.

O8416AB

X

SEAL - "O" ring, spool, D26821 bucket cylinder section

2шт.

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, cap, D26821 bucket cylinder section

1шт.

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "O" ring, bucket cylinder section, D26821

3шт.

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, bucket cylinder section, D26821

1шт.

D26823

CAP

- valve, D26821 bucket cylinder section

1шт.

D26824

SPOOL

POPPET - check valve, D26821 bucket cylinder section

1шт.

D26826

COMPRESSION SPRING

SPRING - check valve, D26821 bucket cylinder section

1шт.

D26829

RING

- backup, spool seat, D26821 bucket cylinder section

1шт.

D26830

PLATE

- retaining, D26821 bucket cylinder section

1шт.

D26831

GUIDE

- spring, D26821 bucket cylinder section

2шт.

D26832

SPRING

- centering, D26821 bucket cylinder section

1шт.

D26833

BOLT

- hex. head stripper, D26821 bucket cylinder section

1шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 NC x 3/4" slotted fillister head machine screw (71-412), D26821 bucket cylinder section

2шт.

D26835

VALVE - secondary relief, 2-1/16" long (Preset at factory - 2750 P.S.I.) Color code - green (Use D31449), D26821 bucket cylinder section

1шт.

D30696

CYLINDER END CAP

CAP - check valve, D26821 bucket cylinder section

1шт.

D26864

X

WASHER - gasket - lead-copper (Use 1-D31450 washer and 1-D26872 "O" ring), D26835 secondary relief valve

1шт.

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner, D26835 secondary relief valve

1шт.

D26870

GASKET

- copper, D26838 cross-over relief valve

1шт.

D26878

X

SCREW - set, adjusting, D26838 cross-over relief valve

1шт.

D26879

LOCK NUT

NUT - lock, adjusting screw, D26838 cross-over relief valve

1шт.

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

SEAL - "O" ring, shell (Upper), D26838 cross-over relief valve

1шт.

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, poppet, D26838 cross-over relief valve

1шт.

D31412

O-RING

SEAL - "O" ring, shell (Lower), D26838 cross-over relief valve

1шт.

O8416AB

X

SEAL - "O" ring, spool, D26839 boom cylinder section

2шт.

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, cap, D26839 boom cylinder section

1шт.

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "O" ring, boom cylinder section, D26839

3шт.

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, boom cylinder section, D26839

1шт.

D26823

CAP

- valve, D26839 boom cylinder section

1шт.

D26824

SPOOL

POPPET - check valve, D26839 boom cylinder section

1шт.

D26826

COMPRESSION SPRING

SPRING - check valve, D26839 boom cylinder section

1шт.

D26829

RING

- backup, spool seal, D26839 boom cylinder section

1шт.

D26830

PLATE

- retaining, D26839 boom cylinder section

1шт.

D26831

GUIDE

- spring, D26839 boom cylinder section

2шт.

D26832

SPRING

- centering, D26839 boom cylinder section

1шт.

D26833

BOLT

- stripper, D26839 boom cylinder section

1шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 NC x 3/4" slotted fillister head machine screw (71-412), D26839 boom cylinder section

2шт.

D26835

VALVE - secondary relief, 2-1/16" long (Preset at factory - 2750 P.S.I.) Color code - green (Use D31449), D26839 boom cylinder section

1шт.

D26841

CARTRIDGE

VALVE - secondary relief, boom down pressure (Preset at factory - 1250 P.S.I.) Color code - black, D26839 cylinder section

1шт.

D30696

CYLINDER END CAP

CAP - check valve, D26839 boom cylinder section

1шт.

D26870

GASKET

- copper, D26841 secondary relief valve

1шт.

D26878

X

SCREW - set, adjusting, D26841 secondary relief valve

1шт.

D26879

LOCK NUT

NUT - lock adjusting screw, D26841 secondary relief valve

1шт.

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

SEAL - "O" ring, shell, D26841 secondary relief valve

1шт.

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, poppet, D26841 secondary relief valve

1шт.

O8416AB

X

SEAL - "O" ring, spool, D26842 stabilizer cylinder section

2шт.

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, cap, D26842 stabilizer cylinder section

1шт.

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "O" ring, stabilizer cylinder section, D26842

3шт.

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, stabilizer cylinder section, D26842

1шт.

D26823

CAP

- valve, D26842 stabilizer cylinder section

1шт.

D26824

SPOOL

POPPET - check valve, D26842 stabilizer cylinder section

1шт.

D26826

COMPRESSION SPRING

SPRING - check valve, D26842 stabilizer cylinder section

1шт.

D26829

RING

- backup, spool seal, D26842 stabilizer cylinder section

1шт.

D26830

PLATE

- retaining, D26842 stabilizer cylinder section

1шт.

D26831

GUIDE

- spring, D26842 stabilizer cylinder section

2шт.

D26832

SPRING

- centering, D26842 stabilizer cylinder section

1шт.

D26833

BOLT

- stripper, D26842 stabilizer cylinder section

1шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 NC x 3/4" slotted fillister head machine screw (71-412), D26842 stabilizer cylinder section

2шт.

D30696

CYLINDER END CAP

CAP - check valve, D26842 stailizer cylinder section

1шт.

D26864

X

WASHER - gasket, lead-copper (Use 1-D31450 washer and 1-D26872 "O" ring), D28017 secondary relief valve

1шт.

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner, D28017 secondary relief valve

1шт.

O8416AB

X

SEAL - "O" ring, spool seat, D28054 crowd cylinder section

2шт.

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, cap, D28054 crowd cylinder section

1шт.

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "O" ring, crowd cylinder section, D28054

3шт.

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, crowd cylinder section, D28054

1шт.

D26823

CAP

- valve, D28054 crowd cylinder section

1шт.

D26824

SPOOL

POPPET - check valve, D28054 crowd cylinder section

1шт.

D26826

COMPRESSION SPRING

SPRING - check valve, D28054 crowd cylinder section

1шт.

D26829

RING

- backup, spool seal, D28054 crowd cylinder section

1шт.

D26830

PLATE

- retaining, D28054 crowd cylinder section

1шт.

D26831

GUIDE

- spring, D28054 crowd cylinder section

2шт.

D26832

SPRING

- centering, D28054 crowd cylinder section

1шт.

D26833

BOLT

- stripper, D28054 crowd cylinder section

1шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 NC x 3/4" slotted fillister head machine screw (71-412), D28054 crowd cylinder section

2шт.

D28017

VALVE - secondary relief, 2-3/4" long (Preset at factory - 2750 P.S.I.) Color code - green (Use D31449), D28054 crowd cylinder section

1шт.

D30696

CYLINDER END CAP

CAP - check valve, D28054 crowd cylinder section

1шт.

O8416AB

X

SEAL - "O" ring, spool seat, D28068 swing cylinder section

2шт.

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, cap, D28068 swing cylinder section

1шт.

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "O" ring, swing cylinder section, D28068

3шт.

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring, swing cylinder section, D28068

1шт.

D26823

CAP

- valve, D28068 swing cylinder section

1шт.

D26824

SPOOL

POPPET - check valve, D28068 swing cylinder section

1шт.

D26826

COMPRESSION SPRING

SPRING - check valve, D28068 swing cylinder section

1шт.

D26829

RING

- backup, spool seal, D28068 swing cylinder section

1шт.

D26830

PLATE

- retaining, D28068 swing cylinder section

1шт.

D26831

GUIDE

- spring, D28068 swing cylinder section

2шт.

D26832

SPRING

- centering, D28068 swing cylinder section

1шт.

D26833

BOLT

- stripper, D28068 swing cylinder section

1шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 NC x 3/4" slotted fillister head machine screw (71-412), D28068 swing cylinder section

2шт.

D26835

VALVE - secondary relief, 2-1/16" long (Preset at factory - 2750 P.S.I.) Color code - green (Use D31449), D28068 swing cylinder section

2шт.

D26838

FILTER

VALVE - cross-over relief (Preset at factory - 1300 P.S.I.) Color code - brown, D28068 swing cylinder section

2шт.

D30696

CYLINDER END CAP

CAP - check valve, D28068 swing cylinder section

1шт.

D26872

O-RING

SEAL - "O" ring, outer, D31448 and D31449 secondary relief valves

1шт.

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, inner, D31448 and D31449 secondary relief valves

1шт.

D31450

WASHER

- gasket, D31448 and D31449 secondary relief valves

1шт.
