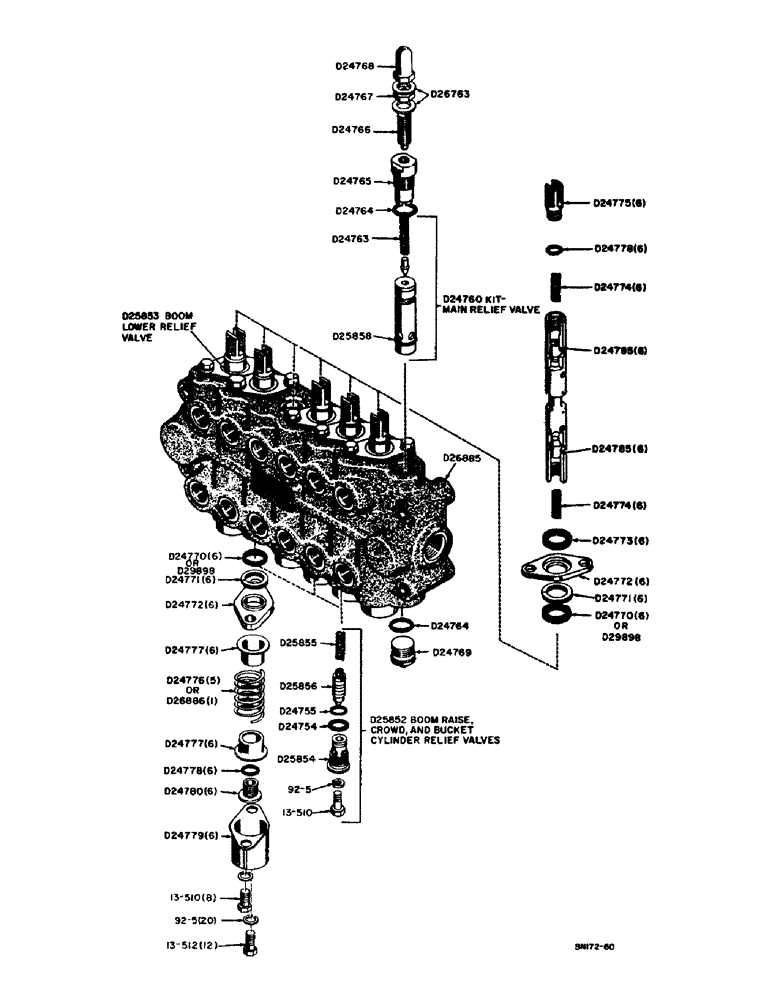

Запчасти Case 31 (074) - D26885 HYDRAULIC CONTROL VALVE

D26885

VALVE - control, hydraulic (Hydreco #V33DDDDDD-20)

1шт.

D24754

GASKET

SEAL - "O" ring, outer, D25852 secondary relief valve-boom raise, bucket, and crowd cylinders

1шт.

D24755

X

SEAL - "O" ring, inner, D25852 secondary relief valve-boom raise, bucket, and crowd cylinders

1шт.

D25852

VALVE - relief (Complete), D25852 secondary-boom raise, bucket, and crowd cylinders

3шт.

D25854

SEAT - relief valve, D25852 secondary-boom raise, bucket, and crowd cylinders

1шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC x 5/8" hex. head cap screw (13-510), D25852 secondary relief valve-boom raise, bucket, and crowd cylinders

1шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher (92-5), D25852 secondary relief valve-boom raise, bucket, and crowd cylinders

1шт.

D25855

SPRING - relief valve, D25852 secondary-boom raise, bucket, and crowd cylinders

1шт.

D25856

CARTRIDGE - relief valve (Preset at factory - 2500 P.S.I.) Color code - green, D25852 secondary relief valve-boom raise, bucket, and crowd cylinders

1шт.

D24754

GASKET

SEAL - "O" ring, outer, D25853 secondary relief valve-boom down pressure

1шт.

D24755

X

SEAL - "O" ring, inner, D25853 secondary relief valve-boom down pressure

1шт.

D25853

VALVE - relief (Complete), D25853 secondary-boom down pressure

1шт.

D25854

SEAT - relief valve, D25853 secondary-boom down pressure

1шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC x 5/8" hex. head cap screw (13-510), D25853 secondary relief valve-boom down pressure

1шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher (92-5), D25853 secondary relief valve-boom down pressure

1шт.

D25855

SPRING - relief valve, D25853 secondary-boom down pressure

1шт.

D25857

CARTRIDGE - relief valve (Preset at factory - 1250 P.S.I.) Color code - black, D25853 secondary relief valve-boom down pressure

1шт.

D24760

KIT - main relief valve, parts

1шт.

D24763

SPRING

- main relief valve, parts

1шт.

D24764

SNAP RING

SEAL - "O" ring, main relief valve and plug, parts

2шт.

D24765

CAP - main relief valve,parts

1шт.

D24766

SCREW - adjusting, main relief valve, parts

1шт.

D24767

X

NUT - jam, adjusting screw, parts for main relief valve

1шт.

D24768

CAP - dust, adjusting screw, parts for main relief valve

1шт.

D24769

PLUG - relief valve, bottom, part for main

1шт.

D25858

O-RING

SEAL - "O" ring, relief valve seat, parts for main

1шт.

D26763

WASHER

GASKET - jam nut, parts for main relief valve

2шт.

D24770

RING

- vee block, use D29898 quad ring, parts for spools

12шт.

D24771

RING

- backup (If required), parts for spools

12шт.

D24772

PLATE - retaining, upper and lower, parts for spools

12шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC x 5/8" hex. head cap screw (13-510), parts for spools

8шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC x 3/4" hex. head cap screw (13-512), parts for spools

12шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher (92-5), parts for spools

20шт.

D24773

SEAL

- wiper, parts for spools

6шт.

D24774

SPRING

- poppet, parts for spools

12шт.

D24775

EYE - spool, parts

6шт.

D24776

VALVE SPRING

SPRING - spool return (All spools except for swing cylinder) See D26886 parts

5шт.

D24777

COLLAR

RETAINER - spring, parts for spools

12шт.

D24778

X

SEAL - "O" ring, spool and cap, parts

12шт.

D24779

COVER

- spool spring, parts

6шт.

D24780

PLUG

CAP - spool, bottom, parts

6шт.

D24785

VALVE

POPPET - spool, parts

12шт.

D26886

SPRING - spool return, swing spool (See D24776), parts

1шт.

D29898

RING

- quad, parts for spools

12шт.
