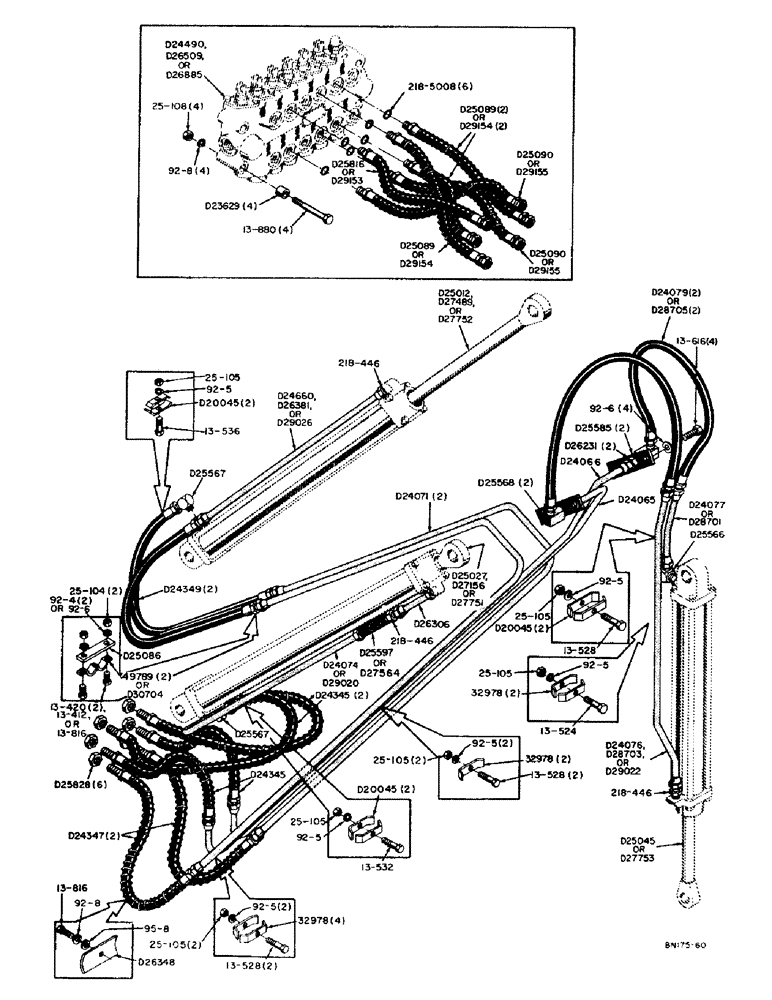

Запчасти Case 31 (056) - BOOM, CROWD, AND BUCKET CYLINDER HYDRAULICS, BEFORE BACKHOE S/N 4058655, VALVE

D23629

SPACER - valve mounting

4шт.

D24490

VALVE - hydraulic control (See Figure 070 for breakdown) Use D26885 valve and D26883 criss-cross relief

1шт.

D26509

VALVE - hydraulic control (See Figure 070 for breakdown) Use D26885 valve and D26883 criss-cross relief

1шт.

D26885

VALVE - hydraulic control (See Figure 074 for breakdown) See D24490 valve and D26509 valve

1шт.

NSS

NOT SOLD SEPARAT

1/2" - 13 NC x 5" hex. head cap screw (13-880)

4шт.

NSS

NOT SOLD SEPARAT

1/2" lockwasher (92-8)

4шт.

NSS

NOT SOLD SEPARAT

1/2" - 13 NC hex. nut (25-108)

4шт.

NSS

NOT SOLD SEPARAT

1/2" plain washer (Used with D26509 and D26885 valves) (95-8)

2шт.

50875

NUT

- hex. jam, special (Bulkhead tees and criss-cross relief valve) (7/8" - 14 NF), boom sylinder hydraulics

6шт.

D20045

PLATE ASSY.

CLAMP - hose, boom cylinder hydraulics

2шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC x 2" hex. head cap screw (13-532), boom cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher (92-5), boom cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC hex. nut (25-105), boom cylinder hydraulics

1шт.

D24074

TUBE - hose to flow control valve, boom cylinder hydraulics

1шт.

D24345

HOSE ASSY.

HOSE - bulkhead to boom cylinder (1/2" I.D. x 7/8" O.D. x 31" long), hydraulics

2шт.

D25027

CYLINDER - boom, hydraulic (With tie rods - 1-3/4" dia. piston rod) Use D27156 cylinder with tie rods and 2" dia. piston rod until stock is exhausted then use D27751 cylinder, D29020 tube, and 218-5065 connector (See Figure 096 for breakdown)

1шт.

D25090

X

HOSE - lower valve port to bulkhead (1/2" I.D. x 7/8" O.D. x 20-1/4" long) Use D29155, boom cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25090 hose (218-5008), boom cylinder hydraulics

1шт.

D25567

ELBOW

- lower port of boom cylinder, hydraulics

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25567 elbow (218-5007), boom cylinder hydraulics

1шт.

D25597

VALVE - flow control (Used with boom cylinders with 1-3/4" dia. piston rods) See Figure 109 for breakdown (See D27564), hydraulics

1шт.

NSS

NOT SOLD SEPARAT

3/4" NPT x 3/4" JIC connector (218-446), boom cylinder hydraulics

1шт.

D25816

X

HOSE - upper valve port to bulkhead (1/2" I.D. x 7/8" O.D. x 17-1/4" long) Use D29153, boom cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25816 hose (218-5008), boom cylinder hydraulics

1шт.

D25828

NUT - jam, hoses at bulkhead (7/8" - 14 NF) Use 50875, boom cylinder hydraulics

6шт.

D26306

TUBE - flow control valve to upper port of boom cylinder, hydraulics

1шт.

D27156

CYLINDER ASSY.

CYLINDER - boom, hydraulic (With tie rods - 2" dia. piston rod) When stock is exhausted use D27751 cylinder, D29020 tube, and 218-5065 connector (See Figure 098 for breakdown)

1шт.

D27564

VALVE - flow control (Used with boom cylinders with 2" dia. piston rods) See Figure 109 for breakdown (See D25597), hydraulics

1шт.

D27751

CYLINDER ASSY.

CYLINDER - boom, hydraulic (Without tie rods) When replacing D25027 or D27156 cylinders also order 1-218-5065 connector and 1-D29020 tube (See Figure 099 for breakdown)

1шт.

NSS

NOT SOLD SEPARAT

3/4" JIC x 5/8" JIC connector (218-5065), boom cylinder hydraulics

1шт.

D29153

HOSE ASSY.

HOSE - upper valve port to bulkhead (1/2" I.D. x 31/32" O.D. x 17-1/2" long), boom cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D29153 hose (218-5008), boom cylinder hydraulics

1шт.

D29155

HOSE ASSY.

HOSE - lower valve port to bulkhead (1/2" I.D. x 31/32" O.D. x 20-1/4" long), boom cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D29155 hose (218-5008), boom cylinder hydraulics

1шт.

D29020

TUBE

- to upper port of D27751 boom cylinder, hydraulics

1шт.

49789

CLAMP

- tube, used with 1/4" attaching bolt (See D30604), crowd cylinder hydraulics

2шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 NC x 1-1/4" hex. head cap screw (13-420) Used before backhoe serial no. 4043460, crowd cylinder hydraulics

2шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 NC x 3/4" hex. head cap screw (13-412) Used with 49789 clamp on backhoe serial no. 4043460 and after, crowd cylinder hydraulics

2шт.

NSS

NOT SOLD SEPARAT

1/4" lockwasher (92-4), crowd cylinder hydraulics

2шт.

NSS

NOT SOLD SEPARAT

1/4" - 20 NC hex. nut (25-104) Used before backhoe serial no. 4043460, crowd cylinder hydraulics

2шт.

D20045

PLATE ASSY.

CLAMP - hose, crowd cylinder hydraulics

2шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC x 2-1/4" hex. head cap screw (13-536), crowd cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher (92-5), crowd cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

5/16" hex. nut (25-105), crowd cylinder hydraulics

1шт.

D24071

TUBE - hose to crowd cylinder hydraulics

2шт.

D24347

HOSE ASSY.

HOSE - bulkhead to tube (1/2" I.D. x 7/8" O.D. x 33" long), crowd cylinder hydraulics

2шт.

D24349

HOSE ASSY.

HOSE - tube to cylinder (3/4" I.D. x 1-5/32" O.D. x 23" long), crowd, hydraulics

2шт.

D24660

TUBE - hose to upper port crowd cylinder, before backhoe serial no. 4041576 (Use D26381 tube and 218-446 connector), hydraulics

1шт.

D25012

CYLINDER - crowd, hydraulic (With tie rods - 1" - 14 NF nut on piston rod) Use D27489 cylinder until stock is exhausted then use D27752 cylinder, D29026 tube, and 218-5065 connector) (See Figure 100 for breakdown)

1шт.

D25086

SPACER - tube mounting (Used before backhoe serial no. 4043460), crowd cylinder hydraulics

1шт.

D25089

X

HOSE - upper valve port to bulkhead (1/2" I.D. x 7/8" O.D. x 18-3/4" long) Use D29154, crowd cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25089 hose (218-5008), crowd cylinder hydraulics

1шт.

D25090

X

HOSE - lower valve port to bulkhead (1/2" I.D. x 7/8" O.D. x 20-1/4" long) Use D29155, crowd cylinder hydraulics

1шт.

D25567

ELBOW

- 90 degrees adjustable, lower port crowd cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25567 elbow (218-5007), crowd cylinder hydraulics

1шт.

D26348

CLAMP - hose, crowd cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

1/2" - 13 NC x 1" hex. head cap screw (13-816), crowd cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

1/2" lockwasher (92-8), crowd cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

1/2" standard wrot washer (95-8), crowd cylinder hydraulics

1шт.

D26381

TUBE - hose to upper port of crowd cylinder (Backhoe serial no. 4041576 and after), hydraulics

1шт.

NSS

NOT SOLD SEPARAT

3/4" JIC x 3/4" NPT connector (218-446), crowd cylinder hydraulics

1шт.

D27489

CYLINDER - crowd, hydraulic (With tie rods, 1-1/4" - 12 NF nut on piston rod) When stock is exhausted use D27752 cylinder, D29026 tube, and 218-5065 connector (See Figure 102 for breakdown)

1шт.

D27752

CYLINDER ASSY.

CYLINDER - crowd, hydraulic (Without tie rods) When replacing D25012 or D27489 cylinder with tie rods also order 1-D29026 tube and 1-218-5065 connector (See Figure 103 for breakdown)

1шт.

D29026

TUBE

- to upper port of D27752 crowd cylinder hydraulics

1шт.

D29154

HOSE ASSY.

HOSE - upper valve port to bulkhead (1/2" I.D. x 31/32" O.D. x 18-3/4" long), crowd cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D29154 hose (218-5008), crowd cylinder hydraulics

1шт.

D29155

HOSE ASSY.

HOSE - lower valve port to bulkhead (1/2" I.D. x 31/32" O.D. x 20-1/4" long), crowd cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D29155 hose (218-5008), crowd cylinder hydraulics

1шт.

D30604

CLAMP

- tube, used with 3/8" attaching bolt (See 49789), crowd cylinder hydraulics

2шт.

NSS

NOT SOLD SEPARAT

3/8" - 16 NC x 1" hex. head cap screw (13-616), crowd cylinder hydraulics

2шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher (92-6), crowd cylinder hydraulics

2шт.

32978

PLATE ASSY.

CLAMP - tube, bucket cylinder hydraulics

8шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC x 1-1/2" hex. head cap screw (13-524), bucket cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC x 1-3/4" hex. head cap screw (13-528), bucket cylinder hydraulics

4шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher (92-5), bucket cylinder hydraulics

5шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC hex. nut (25-105), bucket cylinder hydraulics

5шт.

D20045

PLATE ASSY.

CLAMP - tube, bucket cylinder hydraulics

2шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC x 1-3/4" hex. head cap screw (13-528), bucket cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher (92-5), bucket cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

5/16" hex. nut (25-105), bucket cylinder hydraulics

1шт.

D24065

TUBE - bulkhead hose to L.H. boom elbow, bucket cylinder hydraulics

1шт.

D24066

TUBE - bulkhead hose to R.H. boom elbow, bucket cylinder hydraulics

1шт.

D24076

TUBE - hose to lower port of bucket cylinder (Use D28703 for cylinders with tie rods and D29022 for cylinders without tie rods), hydraulics

1шт.

NSS

NOT SOLD SEPARAT

3/4" NPT x 3/4" JIC connector (218-446), bucket cylinder hydraulics

1шт.

D24077

X

TUBE - hose to upper port of bucket cylinder (Use D28701), hydraulics

1шт.

D24079

X

HOSE - elbow to tube (3/4" I.D. x 1-5/32" O.D. x 37" long) Used with D24076 (40-3/16") and D24077 (10-1/4") tubes (See D28705), bucket cylinder hydraulics

2шт.

D24345

HOSE ASSY.

HOSE - bulkhead to tube (1/2" I.D. x 7/8" O.D. x 31" long), bucket cylinder hydraulics

2шт.

D25045

CYLINDER - bucket, hydraulic (With tie rods) When stock is exhausted use D27753 cylinder, D29022 tube, and 218-5065 connector (See Figure 104 for breakdwon)

1шт.

D25089

X

HOSE - control valve to bulkhead (1/2" I.D. x 7/8" O.D. x 18-3/4" long) Use D29154, bucket cylinder hydraulics

2шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25089 hose (218-5008), bucket cylinder hydraulics

1шт.

D25566

ELBOW

- 90 degrees adjustable, upper port of bucket cylinder hydraulics

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25566 elbow (218-5007), bucket cylinder hydraulics

1шт.

D25568

ELBOW UNION

ELBOW - 90 degrees special, bucket cylinder hydraulics

2шт.

D25585

PLATE - spacer, bucket cylinder hydraulics

2шт.

NSS

NOT SOLD SEPARAT

3/8" - 16 NC x 1" hex. head cap screw (13-616), bucket cylinder hydraulics

4шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher (92-6), bucket cylinder hydraulics

4шт.

D26231

NUT

- jam, D25585 elbow (1-1/16" - 12 NF), bucket cylinder hydraulics

2шт.

D27753

CYLINDER ASSY.

CYLINDER - bucket, hydraulic (Without tie rods) When replacing D25045 cylinder with tie rods also order 1-218-5065 connector and 1-D29026 tube (See page 106 for breakdown)

1шт.

D28701

TUBE

- hose to upper port of bucket cylinder hydraulics

1шт.

D28703

TUBE

- hose to lower port of bucket cylinder (Used with D25045 cylinder) See D29022, hydraulics

1шт.

D28705

HOSE

- elbow on boom to bucket cylinder tubes (3/4" I.D. x 1-5/32" O.D. x 40" long) Used with D28701 (11-1/4") and D28703 (43-9/16") tubes (See D24079), hydraulics

2шт.

D29022

TUBE

- hose to lower port of bucket cylinder (Used with D27753 bucket cylinder) See D28703, hydraulics

1шт.

D29154

HOSE ASSY.

HOSE - control valve to bulkhead (1/2" I.D. x 31/32" O.D. x 18-3/4" long), bucket cylinder hydraulics

2шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D29154 hose (218-5008), bucket cylinder hydraulics

1шт.
