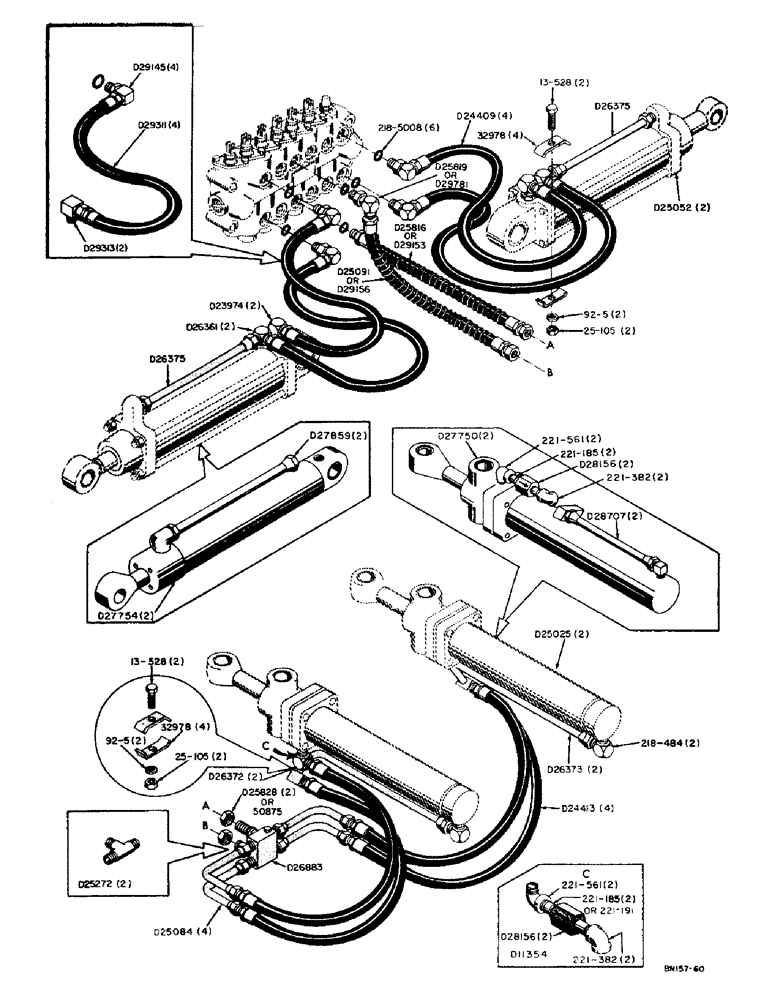

Запчасти Case 31 (052) - SWING AND STABILIZER CYLINDER HYDRAULICS (LATE PRODUCTION)

32978

PLATE ASSY.

CLAMP -, Serial Range: tube-hose

4шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC x 1-3/4" hex. head cap screw (13-528)

2шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher (92-5)

2шт.

NSS

NOT SOLD SEPARAT

5/16" hex. nut (25-105)

2шт.

D23974

ELBOW

- 90 degrees adjustable street, upper stabilizer port (Used with D24409 hose - see D29313)

2шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D23974 elbow (218-5007)

1шт.

D24409

HOSE - valve to upper and lower ports stabilizer cylinder (3/8" I.D. x 3/4" O.D. x 20" long) See D29311 hose, D29313 elbow, and D29145 elbow

4шт.

D29145, D29311, and D29313 should be used in place of D24409.

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D24409 hose (218-5008)

1шт.

D25052

CYLINDER - stabilizer, hydraulic (With tie rods) See Figure 094 for breakdown (When stock is exhausted use D27754 cylinder and D27859 tube)

2шт.

D26361

FITTING

ELBOW - 90 degrees, hose to tube on stabilizer cylinder

2шт.

D26375

TUBE - lower port D25052 stabilizer cylinder (See D27859)

2шт.

D27754

CYLINDER

- stabilizer, hydraulic (Without tie rods) See D25052 (When replacing D25052 cylinder also order 1-D27859 tube) See Figure 095 for breakdown

2шт.

D27859

TUBE

- lower port D27754 stabilizer cylinder (See D26375)

2шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D27859 tube (218-5007)

2шт.

D29145

ELBOW UNION

ELBOW - 90 degrees adjustable, upper and lower valve ports (Used with D29311 hose) Backhoe serial no. 4066819 and after)

4шт.

D29145, D29311, and D29313 should be used in place of D24409.

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D29145 elbow (218-5008)

1шт.

D29311

HOSE - upper and lower valve ports to stabilizer (3/8" I.D. x 3/4" O.D. x 20" long) When replacing D24409 hoses also order 1-D29145 elbow and 1-D29313 elbow) (Backhoe serial no. 4066819 and after)

4шт.

D29145, D29311, and D29313 should be used in place of D24409.

1шт.

D29313

ELBOW

- 90 degrees adjustable, upper port of stabilizer cylinder when D29311 hose is used (Backhoe serial no. 4066819 and after)

2шт.

D29145, D29311, and D29313 should be used in place of D24409.

1шт.

32978

PLATE ASSY.

CLAMP - tube to hose, swing cylinder hydraulics (before s/n 4042173 and after)

4шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC x 1-3/4" hex. head cap screw (13-528), swing cylinder hydraulics (before s/n 4042173 and after)

2шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher (92-5), swing cylinder hydraulics (before s/n 4042173 and after)

2шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC hex. nut (25-105), swing cylinder hydraulics (before s/n 4042173 and after)

2шт.

50875

NUT

- hex. jam, special (Bulkhead tees and criss-cross relief valve (7/8" - 14 NF), swing cylinder hydraulics (before s/n 4042173 and after)

2шт.

D24413

HOSE ASSY.

HOSE - bulkhead tube to swing cylinder ports (3/8" I.D. x 3/4" O.D. x 20-1/2" long), hydraulics (before s/n 4042173 and after)

4шт.

NSS

NOT SOLD SEPARAT

3/8" NPT 90 degrees street elbow (221-413) Use D26372, swing cylinder hydraulics (before s/n 4042173 and after)

2шт.

D25025

CYLINDER - swing, hydraulic (See Figure 090 for breakdown) Use D27750, (before s/n 4042173 and after)

2шт.

D25084

TUBE - bulkhead tee to hose, swing cylinder hydraulics (before s/n 4042173 and after)

4шт.

D25091

HOSE - elbow to lower port criss-cross relief valve (1/2" I.D. x 7/8" O.D. x 18-3/4" long) Use D29156, swing cylinder hydraulics (before s/n 4042173 and after)

1шт.

D25092

HOSE - lower control valve port to upper port criss-cross relief (1/2" I.D. x 7/8" O.D. x 17-1/4" long) Use D29153, swing cylinder hydraulics (before s/n 4042173 and after)

1шт.

D25272

TEE - bulkhead (Original equipment on backhoes before serial no. 4042180 and after serial no. 4058655) Includes 2-50875 nuts (See D26883), swing cylinder hydraulics (before s/n 4042173 and after)

2шт.

NSS

NOT SOLD SEPARAT

7/8" - 14 NF hex. jam nut, use 50875 (25-1514), swing cylinder hydraulics (before s/n 4042173 and after)

2шт.

D25816

X

HOSE - lower control valve port to upper port criss-cross relief (1/2" I.D. x 7/8" O.D. x 17-1/2" long) Use D29153, swing cylinder hydraulics (before s/n 4042173 and after)

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25816 hose (218-5008), swing cylinder hydraulics (before s/n 4042173 and after)

1шт.

D25819

ELBOW - 90 degrees adjustable street (Upper valve port) Use D29781, swing cylinder hydraulics (before s/n 4042173 and after)

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25819 elbow (218-5008), swing cylinder hydraulics (before s/n 4042173 and after)

1шт.

D25828

NUT - hex. jam, special (Bulkhead tees and criss-cross relief valve) 7/8" - 14 NF, swing cylinder hydraulics (before s/n 4042173 and after)

2шт.

D26372

ELBOW UNION

ELBOW - 90 degrees street 3/8" NPT (Hose to swing cylinders), hydraulics (before s/n 4042173 and after)

2шт.

D26373

TUBE - rear port swing cylinder to hose (See D28707), hydraulics (before s/n 4042173 and after)

2шт.

NSS

NOT SOLD SEPARAT

3/8" NPT x 1/2" JIC male elbow (218-484), swing cylinder hydraulics (before s/n 4042173 and after

2шт.

D26883

VALVE - criss-cross relief (Original equipment on backhoes serial number 4042180 to 4058655) See D25272 (See Figure 110for breakdown), swing cylinder hydraulics (before s/n 404217. and after)

1шт.

D27750

CYLINDER ASSY.

CYLINDER - swing, hydraulic (See Figure 092 for breakdown) See D25025, (before s/n 4042173 and after)

2шт.

D28156

VALVE - flow control, swing cylinder hydraulics (before s/n 4042173 and after)

2шт.

NSS

NOT SOLD SEPARAT

3/8" NPT to 1/2" NPT 90 degrees female reducing elbow (221-382), swing cylinder hydraulics (before s/n 4042173 and after)

2шт.

NSS

NOT SOLD SEPARAT

3/8" NPT to 1/2" NPT 90 degrees street reducing elbow (221-561), swing cylinder hydraulics (before s/n 4042173 and after)

2шт.

NSS

NOT SOLD SEPARAT

1/2" NPT x 1-1/8" long pipe nipple (221-185), swing cylinder hydraulics (before s/n 4042173 and after)

2шт.

NSS

NOT SOLD SEPARAT

1/2" NPT x 2-1/2" long pipe nipple (221-191) Used in place of D28156 flow control valve and 221-185 nipple on units with a regenerative circuit, swing cylinder hydraulics (before s/n 4042173 and after)

2шт.

D28707

TUBE - rear port of swing cylinder to hose (Used with D27750 cylinder) See D26373, hydraulics (before s/n 4042173 and after)

2шт.

D29153

HOSE ASSY.

HOSE - lower valve port to upper port criss-cross relief valve (1/2" I.D. x 31/32" O.D. x 17-1/2" long), swing cylinder hydraulics (before s/n 4042173 and after)

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D29153 hose (218-5008), swing cylinder hydraulics (before s/n 4042173 and after)

1шт.

D29156

HOSE - upper valve port to lower port criss-cross relief valve (1/2" I.D. x 31/32" O.D. x 18-3/4" long), swing cylinder hydraulics (before s/n 4042173 and after)

1шт.

D29781

ELBOW - 45 degrees adjustable (Upper valve port), swing cylinder hydraulics (before s/n 4042173 and after)

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D29781 elbow (218-5008), swing cylinder hydraulics (before s/n 4042173 and after)

1шт.

D11354

KIT - flow control for swing cylinder (Includes following items), valve ( for field installation)

1шт.

D28156

VALVE - flow control, valve kit, (for field installations)

2шт.

NSS

NOT SOLD SEPARAT

3/8" NPT to 1/2" NPT 90 degrees female reducing elbow (221-382), D11354 flow control valve kit (for field installation)

2шт.

NSS

NOT SOLD SEPARAT

3/8" NPT to 1/2" NPT 90 degrees street reducing elbow (221-561), D11354 flow control valve kit (for field installation)

2шт.

NSS

NOT SOLD SEPARAT

1/2" NPT x 1-1/8" pipe nipple (221-185), D11354 flow control valve kit (for field installation)

2шт.
