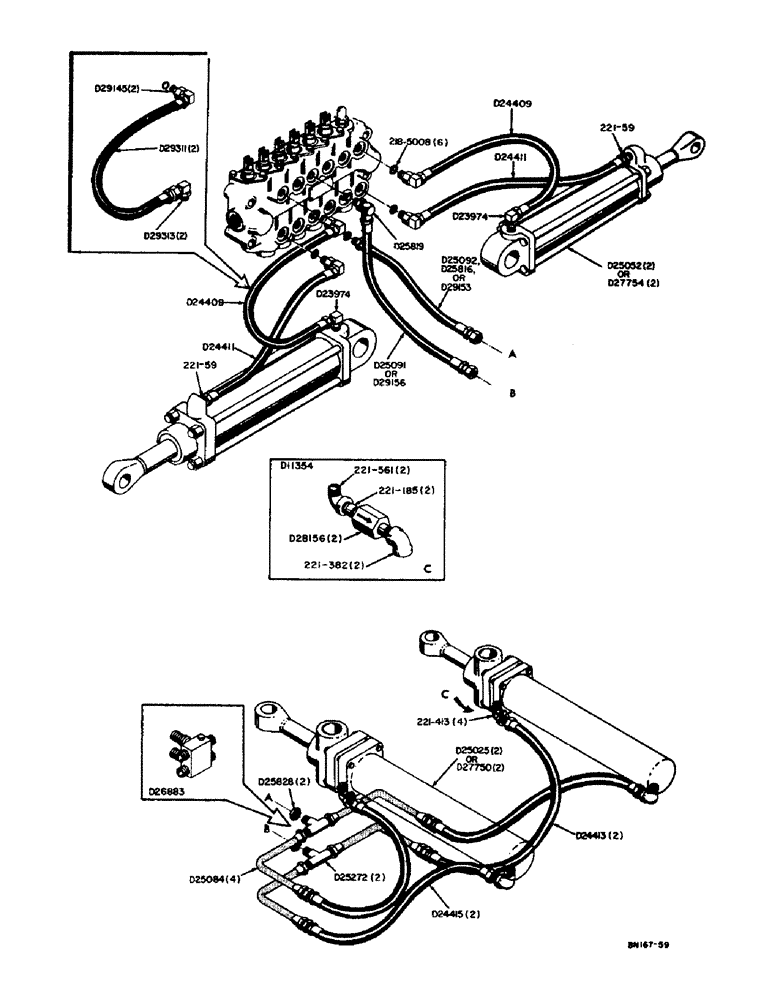

Запчасти Case 31 (048) - SWING AND STABILIZER CYLINDER HYDRAULICS (EARLY PRODUCTION),

D23974

ELBOW

- 90 degrees street, adjustable (Upper stabilizer port - used with D24409 hose)

2шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D23974 elbow (218-5007)

1шт.

D24409

HOSE - upper valve port to upper stabilizer port (3/8" I.D. x 3/4" O.D. x 20" long) See D29311 hose, D29313 elbow, and D29145 elbow

2шт.

D29145, D29311, and D29313 should be used in place of D24409.

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D24409 hose (218-5008)

1шт.

D24411

HOSE - lower valve port to lower stabilizer port (3/8" I.D. x 3/4" O.D. x 36-1/2" long)

2шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D24411 hose (218-5008)

1шт.

NSS

NOT SOLD SEPARAT

3/4" NPT to 3/8" NPT reducing bushing (221-59)

2шт.

D25052

CYLINDER - stabilizer, hydraulic (With tie rods) When stock is exhausted use 1-D27754 cylinder, 1- D26361 elbow, 1-D27859 tube, 1-D29311 hose, and 1-D29145 elbow (See Figure 094 for breakdown)

2шт.

D26361

FITTING

ELBOW - 90 degrees, hose to tube on stabilizer cylinder (Used when replacing D25052 cylinder with D27754 cylinder)

2шт.

D27754

CYLINDER

- stabilizer, hydraulic (Without tie rods) When replacing D25052 cylinder also order 1-D29311 hose, 1-D26361 elbow, 1-D29145 elbow, and 1-D27859 tube (See Figure 095 for breakdown)

2шт.

D27859

TUBE

- lower port of D27754 stabilizer cylinder (See D24411) Illustrated on Figure 052

2шт.

D29145

ELBOW UNION

ELBOW - 90 degrees adjustable, upper and lower valve ports to stabilizer cylinders (Used with D29311 hose)

4шт.

D29145, D29311, and D29313 should be used in place of D24409.

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D29145 elbow (218-5008)

1шт.

D29311

HOSE - upper valve port to upper stabilizer port (3/8" I.D. x 3/4" O.D. x 20" long)

2шт.

D29145, D29311, and D29313 should be used in place of D24409.

1шт.

D29313

ELBOW

- 90 degrees adjustable, upper port of stabilizer cylinder When D29311 hose is used

2шт.

D29145, D29311, and D29313 should be used in place of D24409.

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D29313 elbow (218-5007)

1шт.

50875

NUT

- hex. jam, special (Bulkhead tees and criss-cross relief valve) (7/8" - 14 NF0, swing cylinder hydraulics (before backhoe s/n 4042173)

2шт.

D24413

HOSE ASSY.

HOSE - bulkhead tube to cylinder front port (3/8" I.D. x 3/4" O.D. x 20-1/2" long), swing hydraulics (before backhoe s/n 4042173)

2шт.

NSS

NOT SOLD SEPARAT

3/8" NPT 90 degrees street elbow (221-413), swing cylinder hydraulics (before backhoe s/n 4042173)

2шт.

D24415

HOSE - bulkhead tube to cylinder rear port (3/8" I.D. x 3/4" O.D. x 26-1/2" long), swing hydraulics (before backhoe s/n 4042173)

2шт.

NSS

NOT SOLD SEPARAT

3/8" NPT 90 degrees street elbow (221-413), swing cylinder hydraulics (before backhoe 4042173)

2шт.

D25025

CYLINDER - swing, hydraulic (See Figure 090 for breakdown) When stock is exhausted use D27750, (before backhoe s/n 4042173)

2шт.

D25084

TUBE - bulkhead tee to hose, swing cylinder hydraulics (before backhoe s/n 4042173)

4шт.

D25091

HOSE - elbow to lower bulkhead tee (1/2" I.D. x 7/8" O.D. x 18-3/4" long) Use D29156, swing cylinder hydraulics (before backhoe s/n 4042173)

1шт.

D25092

HOSE - lower valve port to upper bulkhead tee (1/2" I.D. x 7/8" O.D. x 17-1/4" long) Use D29153, swing cylinder hydraulics (before backhoe s/n 4042173)

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D250923 hose (218-5008), swing cylinder hydraulics (before backhoe s/n 4042173)

1шт.

D25272

TEE - bulkhead (Includes 2-D25828 nuts) See D26883, swing cylinder hydraulics (before backhoe s/n 4042173)

2шт.

NSS

NOT SOLD SEPARAT

7/8" - 14 NF jam nut, use D25828 (25-1517), swing cylinder hydraulics (before backhoe s/n 4042173)

2шт.

D25819

ELBOW - adjustable street (Upper valve port) Use D29781, swing cylinder hydraulics (before backhoe s/n 4042173)

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25819 elbow (218-5008), swing cylinder hydraulics (before backhoe s/n 4042173)

1шт.

D25828

NUT - hex. jam, special (Bulkhead tees and criss-cross relief valve) 7/8" - 14 NF (Use 50875), swing cylinder hydraulics (before backhoe s/n 4042173)

2шт.

D26883

VALVE - criss-cross relief (If used) See D25272 (See Figure 110 for breakdown), swing cylinder hydraulics (befoer backhoe s/n 4042173)

1шт.

D27750

CYLINDER ASSY.

CYLINDER - swing, hydraulic (See Figure 092 for breakdown) See D25025, (before backhoe s/n 4042173)

2шт.

D29153

HOSE ASSY.

HOSE - lower valve port to lower port criss-cross relief valve (1/2" I.D. x 31/32" O.D. x 17-1/2" long), swing cylinder hydraulics (before backhoe s/n 4042173)

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D29153 hose (218-5008), swing cylinder hydraulics (before backhoe s/n 4042173)

1шт.

D29156

HOSE - upper valve port to upper port criss-cross relief valve (1/2" I.D. x 31/32" O.D. x 18-3/4" long), swing cylinder hydraulics (befoer backhoe s/n 4042173)

1шт.

D29781

ELBOW - 45 degrees adjustable (Upper valve port), swing cylinder hydraulics (before backhoe s/n 4042173)

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D29781 elbow (218-5008), swing cylinder hydraulics (before backhoe s/n 4042173)

1шт.

D11354

KIT - flow control for swwing cylinder (Includes following items), (for field installation)

1шт.

D28156

VALVE - flow control, D11354 kit (for field installation)

2шт.

NSS

NOT SOLD SEPARAT

3/8" NPT to 1/2" NPT 90 degrees female reducing elbow (221-382), D11354 flow control valve kit (for field installation)

2шт.

NSS

NOT SOLD SEPARAT

3/8" NPT to 1/2" NPT 90 degrees street reducing elbow (221-561), D11354 flow control valve kit (for field installation)

2шт.

NSS

NOT SOLD SEPARAT

1/2" NPT x 1-1/8" long pipe nipple (221-185), D11354 flow control valve kit (for field installation)

2шт.
