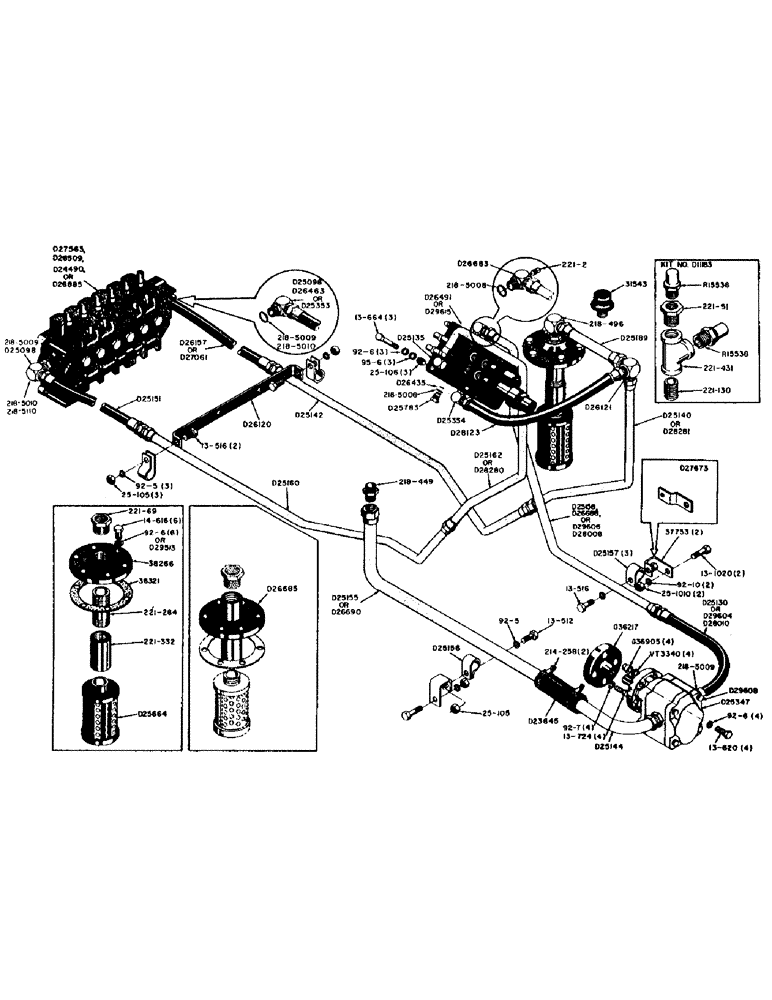

Запчасти Case 31 (042) - BASIC CRAWLER BACKHOE HYDRAULICS AND PUMP DRIVE

G36217

HUB ASSY.

COUPLING - flexible, pump drive to pulley (Includes 4-G36905 blocks)

1шт.

G36905

BLOCK

AND BUSHING - flexible coupling

4шт.

NSS

NOT SOLD SEPARAT

7/16" - 14 NC x 1-1/2" hex. head cap screw (13-724)

4шт.

NSS

NOT SOLD SEPARAT

7/16" lockwasher (92-7)

4шт.

VT3340

X

WASHER - coupling bolt (29/64" I.D. x 3/4" O.D.)

4шт.

31543

BREATHER

- reservoir (See D11183)

1шт.

36321

GASKET

- inlet cap

1шт.

37753

BUSHING

BRACKET - tube clamp mounting

1-2шт.

NSS

NOT SOLD SEPARAT

5/8" - 11 NC x 1-1/4" hex. head cap screw (13-1020)

2шт.

NSS

NOT SOLD SEPARAT

5/8" lockwasher (92-10)

2шт.

NSS

NOT SOLD SEPARAT

5/8" - 11 NC hex. nut (25-1010)

2шт.

38266

ARM

CAP - oil filter inlet (Up to serial no. 3016026) See D26685

1шт.

NSS

NOT SOLD SEPARAT

1-1/4" NPT x 3" long pipe nipple (Use D26685) (221-264)

1шт.

NSS

NOT SOLD SEPARAT

1-1/4" NPT pipe coupling (Use D26685) (221-332)

1шт.

D11183

KIT - pressure control (Includes 1-R15536 relief, 1-R15538 relief, 1-221-130 nipple, 1-221-431 tee, and 1-221-51 reducing bushing) See 31543

1шт.

D23645

HOSE

- suction line (1-1/4" I.D. x 2" O.D. x 5" long)

1шт.

NSS

NOT SOLD SEPARAT

Clamp for D23645 hose (214-258)

2шт.

D24490

VALVE - backhoe control (See Figure 070 for breakdown) Use D26885 backhoe control valve and D26883 criss-cross relief valve

1шт.

D25098

ELBOW - 90 degree adjustable, R.H. side of D24490, D26509, and D26885 valves all production - L.H. side of backhoe valve early production (See D25353, D26463, and below D27563)

1-2шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25098 elbow (218-5009)

1шт.

D25130

HOSE - pressure line, pump to loader valve inlet (Gas models only - see D28010 and D29604) 3/4" I.D. x 1-5/32" O.D. x 14" long

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25130 hose (218-5009)

1шт.

D25135

X

ELBOW - 90 degrees adjustable, loader valve to backhoe control valve line (3/4" JIC x 1" JIC)

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25135 elbow (218-5008)

1шт.

D25140

TUBE - return line, backhoe control valve to lateral tee (Up to serial no. 301437) See D28281

1шт.

D25142

TUBE - return line, backhoe control valve to lateral tee

1шт.

D25144

STEM - hose, pump inlet

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25144 stem (218-5010)

1шт.

D25151

HOSE - pressure, backhoe control valve (3/4" I.D. x 1-5/32" O.D. x 27-1/2" long)

1шт.

D25155

TUBE - suction line, rear section - early production (See D26690)

1шт.

D25156

CLAMP

- tube

1-2шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC x 3/4" hex. head cap screw (13-512)

1шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher (92-5)

1шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC hex. nut (25-105)

1шт.

D25157

CLAMP - tube

3шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC x 1" hex. head cap screw (13-516)

3шт.

NSS

NOT SOLD SEPARAT

5/16" lockwasher (92-5)

3шт.

NSS

NOT SOLD SEPARAT

5/16" - 18 NC hex. nut (25-105)

3шт.

D25158

TUBE - pressure line, pump to loader valve (Gas models) rear section (See D26688, D28008, and D29606)

1шт.

D25160

TUBE - pressure line, loader valve to backhoe control valve (Center section)

1шт.

D25162

TUBE - pressure line, loader valve to backhoe control valve (Front section) Early production (See D28280)

1шт.

D25189

TUBE - return line, lateral, Serial Range: tee-reservoir

1шт.

NSS

NOT SOLD SEPARAT

3/4" NPT x 1" JIC male elbow (218-496)

1шт.

D25347

PUMP, HYDRAULIC

PUMP - hydraulic (See model 310E crawler parts catalog for breakdown)

1шт.

NSS

NOT SOLD SEPARAT

3/8" - 16 NC x 1-1/4" hex. head cap screw (13-620)

4шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher (92-6)

4шт.

D25353

ELBOW - 90 degrees adjustable, L.H. side D24490, D26509, and D26885 backhoe control valves - see D25098

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25353 elbow (218-5009)

1шт.

D25354

ELBOW

- 90 degrees adjustable, front valve

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25354 elbow (218-5010)

1шт.

D25664

FILTER CARTRIDGE

FILTER - hydraulic oil

1шт.

D25783

PLUG - special power beyond type (Use with 1-D26435 "O" ring and 1-218-5008 "O" ring)

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D25783 plug (218-5008)

1шт.

D26120

BRACKET - D25157 clamp at rear

1шт.

D26121

TEE - lateral (1" JIC)

1шт.

D26157

HOSE - return line (Backhoe control valve to lateral tee - rear section) 3/4" I.D. x 1-1/32" O.D. x 27-1/2" long (Female fittings on both ends of hose - used in conjunction with D25098 fitting on L.H. side of backhoe valve) See D27061

1шт.

D26435

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

SEAL - "O" ring, D25783 plug

1шт.

D26463

FITTING

ELBOW - 90 degrees adjustable female (L.H. side D27563 backhoe control valve - see D25098)

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D26463 elbow (218-5010)

1шт.

D26491

VALVE - loader control (See model 310E parts catalog for breakdown) See D29615

1шт.

NSS

NOT SOLD SEPARAT

3/8" - 16 NC x 4" hex. head cap screw (13-664)

3шт.

NSS

NOT SOLD SEPARAT

3/8" standard wrot washer (95-6)

3шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher (92-6)

3шт.

NSS

NOT SOLD SEPARAT

3/8" - 16 NC hex. nut (25-106)

3шт.

D26509

VALVE - backhoe control (See Figure 070 for breakdown) Use D26885 bvackhoe control valve and D26883 criss-cross relief valve

1шт.

D26683

TEE - adjustable service (3/4" JIC x 1" JIC x 1/4" NPT)

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D26683 tee (218-5008)

1шт.

NSS

NOT SOLD SEPARAT

1/4" NPT square head pipe plug (221-2)

1шт.

D26685

CAP - oil filter inlet (Serial no. 3016026 and after) See 38266

1шт.

NSS

NOT SOLD SEPARAT

3/8" - 24 NF x 1" hex. head cap screw (14-616)

6шт.

NSS

NOT SOLD SEPARAT

3/8" lockwasher (92-6) Use D29513

6шт.

NSS

NOT SOLD SEPARAT

3/4" NPT x 1-1/4" NPT reducing bushing (221-69)

1шт.

D26688

TUBE - pressure, pump to loader control valve (Late production) Gas models (See D25158, D28008, and D29606)

1шт.

D26690

TUBE - suction, rear section (Late production) See D25155

1шт.

D26885

VALVE - backhoe control (See D24490 and D26509) See Figure 074 for breakdown

1шт.

D27061

HOSE - return line, backhoe control valve to lateral tee (Rear section) 3/4" I.D. x 1-1/32" O.D. x 27-1/2" long - male fitting one end, female fitting other end - used in conjunction with D25353 elbow on L.H. side of backhoe control valve (See D26157)

1шт.

D27563

LOCK VALVE

VALVE - backhoe control (Backhoe serial no. 4058655 and after) See Figure 078 for breakdown

1шт.

NSS

NOT SOLD SEPARAT

90 degrees adjustable elbow R.H. side D27563 backhoe control valve (See D25098) (218-5110)

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, 218-5110 elbow (218-5010)

1шт.

D27673

BRACKET - D25157 clamp (Gas models only)

1шт.

D28008

TUBE - pump to valve inlet (Diesel models only) See D25158, D26688, and D29606

1шт.

D28010

HOSE - pump to valve inlet (3/4" I.D. x 1-5/32" O.D. x 11-1/4" long) Diesel models only (See D25130 and D29604)

1шт.

NSS

NOT SOLD SEPARAT

"O" ring seal, D28010 hose (218-5009)

1шт.

D28087

TUBE - lubrication (Not shown)

1шт.

NSS

NOT SOLD SEPARAT

1/8" NPT 90 degrees street elbow (219-82)

1шт.

NSS

NOT SOLD SEPARAT

1/8" NPT straight female grease fitting (219-60)

1шт.

D28123

HOSE - lateral tee to control valve (3/4" I.D. x 1-1/4" O.D. x 18-1/4" long)

1шт.

D28280

TUBE

- pressure line, loader valve to backhoe control valve (Front section) Late production (See D25162)

1шт.

D28281

TUBE - return line, backhoe control valve to lateral tee (See D25140) Serial no. 3014317 and after (See D25140)

1шт.

D28844

CLAMP - tube (Diesel models only) See D25156

1шт.

D29513

WASHER - sealing, nylon

6шт.

D29604

HOSE - pump to loader control valve (3/4" I.D. x 1-5/32" O.D. x 18-1/2" long) Diesel models only (When replacing D28010 hose also order 1-D29606 tube, 1-D29608 elbow, and 1-D25156 clamp)

1шт.

D29606

TUBE - pump to valve inlet (When replacing D28008 tube also order 1-D29604 hose, 1-D29608 elbow, and 1-D25156 clamp)

1шт.

D29608

ELBOW - 45 degrees port of pump (Diesel models only)

1шт.

D29615

VALVE - loader control (See model 310E parts catalog for breakdown) When stock of D26491 is exhausted this valve should be used

1шт.

R15536

VALVE

RELIEF - pressure (10 to 20 P.S.I.)

1шт.

R15538

VALVE

RELIEF - vacuum (2 to 5 P.S.I.)

1шт.

NSS

NOT SOLD SEPARAT

1/4" NPT x 7/8" long pipe nipple (221-130)

1шт.

NSS

NOT SOLD SEPARAT

1/4" x 1/4" x 3/8" NPT pipe tee (221-431)

1шт.

NSS

NOT SOLD SEPARAT

1/4" to 1/8" reducing bushing (221-51)

1шт.
