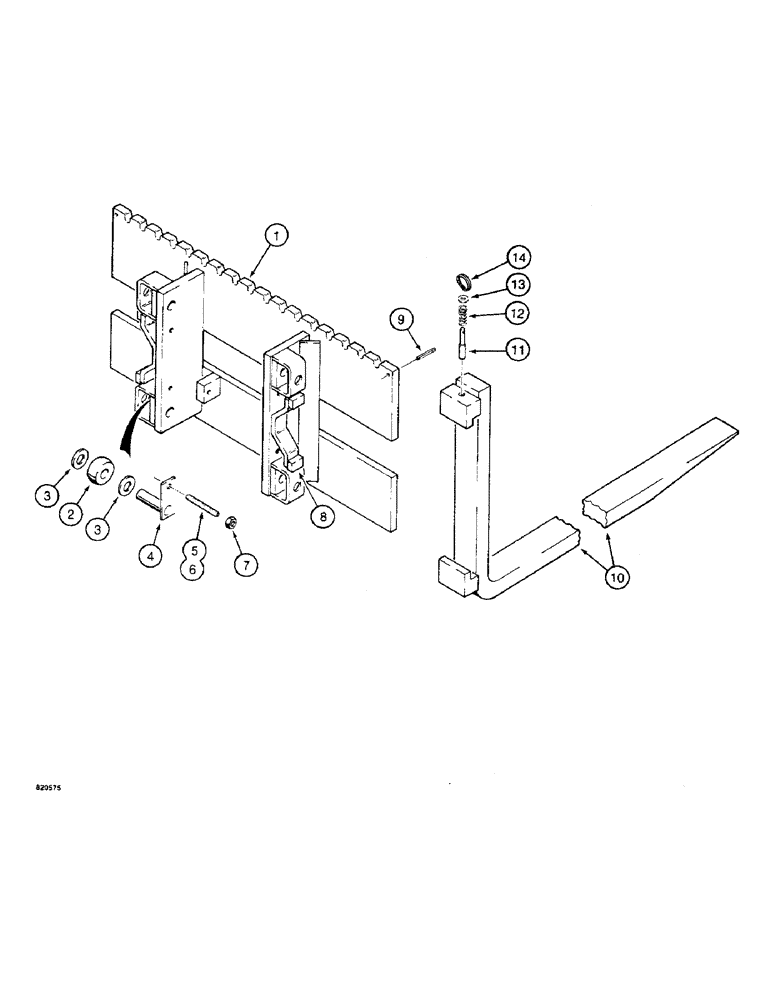

Запчасти Case W4 (182) - FORKLIFT CARRIAGE AND FORKS (09) - CHASSIS/ATTACHMENTS

H650879

CARRIAGE ASSEMBLY - fork, Includes: Ref. 1-8

1шт.

1

NSS

NOT SOLD SEPARAT

CARRIAGE - fork

1шт.

2

D47894

ROLLER BEARING,25.39mm ID x 63.5mm OD x 32.26mm W

ROLLER - load

4шт.

3

60917

THRUST WASHER

THRUST WASHER - roller

8шт.

4

D86604

AXLE

PIN - roller

4шт.

5

178-693

SET SCREW,Hex Soc, 1/2"-13 x 3"

- 1/2" - 13 NC x 3", lower or upper pin retainer

2-4шт.

6

178-692

SET SCREW,Hex Soc, 1/2"-13 x 2 3/4"

- 1/2" - 13 NC x 2.75", upper pin retainer, if used

2шт.

7

129-145

JAM NUT,Jam, 1/2"-13, G5

4шт.

8

N7958

PLATE

WEAR PLATE -, Serial Range: welds-carriage

4шт.

9

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

ROLL PIN - fork retaining, 7/16" x 1/2"

2шт.

10

H650895

FORK

- pallet, 42" (1067 MM) long, Includes: Ref. 11-14

2шт.

11

D41289

RING

- pin retaining

1шт.

12

D52904

VALVE SPRING

SPRING - tension, pin

1шт.

13

D38359

PIN,12.7mm OD x 95.25mm L

PIN - lock, fork

1шт.

14

195-525

WASHER,3/8", SAE

- flat, 3/8"

1шт.
