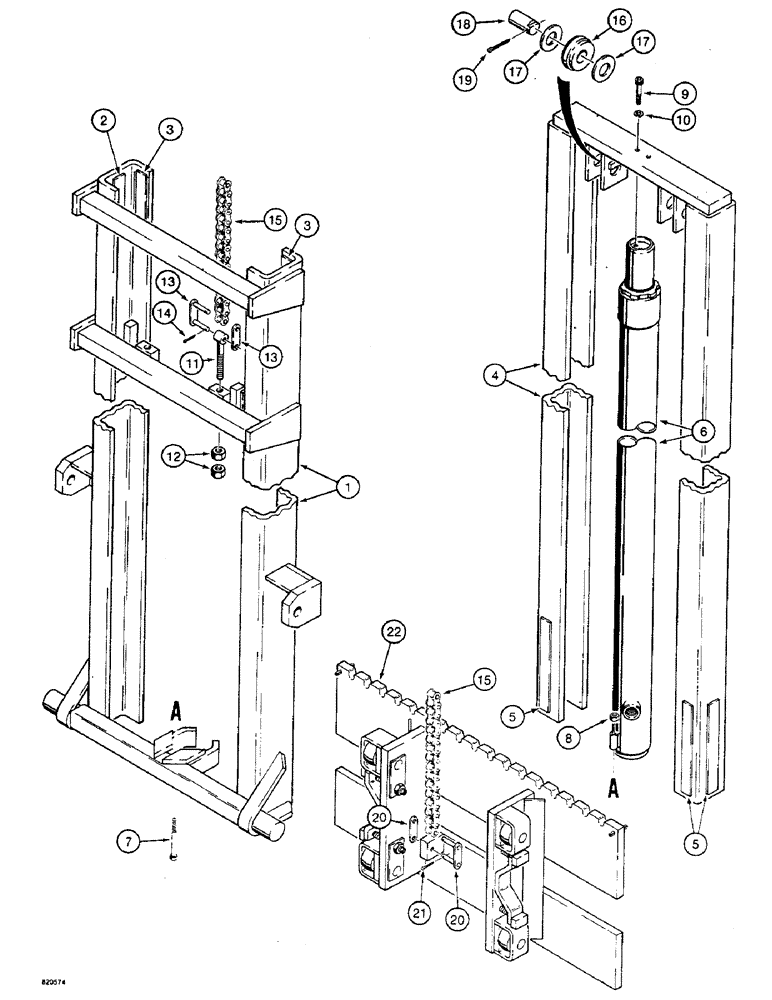

Запчасти Case W4 (180) - FORKLIFT MAST AND CARRIAGE (09) - CHASSIS/ATTACHMENTS

H650903

MAST - complete, machinery item - see Figure 002 for ordering, Includes: Ref. 1-22

1шт.

1

H650887

FRAME

- outer, Includes: Ref. 2 & 3

1шт.

2

D32555

PAD

WEAR PLATE - 1/8" (3 MM) thick x 5" (127 MM) long

2шт.

3

D27366

WEAR PAD

WEAR PLATE - 1/8" (3 MM) thick x 7" (178 MM) long

4шт.

4

H650994

FRAME

- inner, Includes: Ref. 5

1шт.

5

D27362

WEAR PAD

WEAR PLATE - 1/8" (3 MM) thick x 10" (254 MM) long

6шт.

6

H650846

CYLINDER - lift, parts list Figure 160

1шт.

7

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1шт.

8

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

9

61-632

HEX SOC SCREW,3/8"-16 x 2"

SCREW - hex socket head, 3/8" - l6 NC x 2-1/2"

2шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

11

N6012

BOLT

- chain support

2шт.

12

129-125

NUT,1/2"-20, G5

4шт.

13

N6010

LINK,50.749mm Pitch

- chain, chain to eyebolt, Includes: Ref. 14

2шт.

14

132-333

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

2шт.

15

D55398

CHAIN (CE)

CHAIN - rollerless, no. 85, shorten as needed

2шт.

16

D87069

SPROCKET ASSY.

ROLLER - chain

2шт.

17

60944

THRUST WASHER

THRUST WASHER - roller

4шт.

18

D87070

PIN

- roller

2шт.

19

132-361

COTTER PIN,3/16" x 2 1/2"

pin retaining 3/16" x 2 1/2"

2шт.

20

N6010

LINK,50.749mm Pitch

- chain to carriage, Includes: Ref. 21

2шт.

21

132-333

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

2шт.

22

H650879

CARRIAGE ASSEMBLY - parts list Figure 182

1шт.
