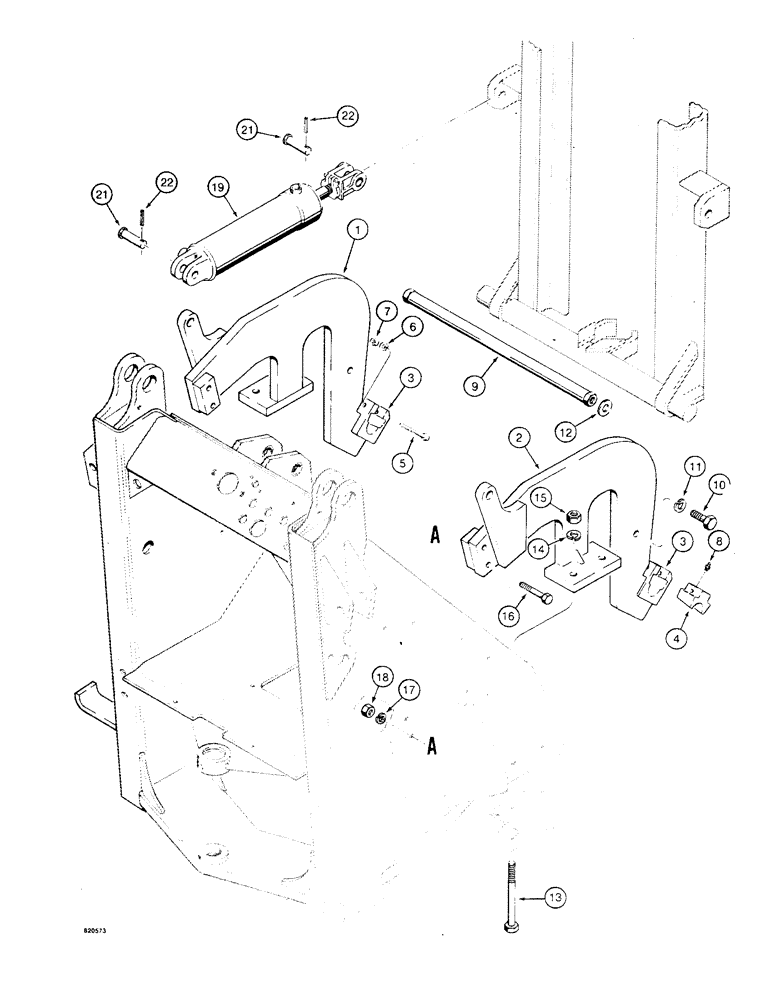

Запчасти Case W4 (178) - FORKLIFT MOUNTING FRAME (09) - CHASSIS/ATTACHMENTS

1

H650861

FRAME - mast support, left-hand, Includes: P/N's D66315 & D66316 and Ref. 2-8

1шт.

2

H650804

FRAME - mast support, right-hand, Includes: P/N's D66315 & D66316 and Ref. 3-8

1шт.

D66315

BLOCK

ASSEMBLY - mast trunnion mounting, right-hand, Includes: Ref. 3-7

1шт.

D66316

BLOCK

ASSEMBLY - mast trunnion mounting, left-hand, Includes: Ref. 3-7

1шт.

3

NSS

NOT SOLD SEPARAT

BLOCK - trunnion mounting, right-hand and left-hand

1шт.

4

NSS

NOT SOLD SEPARAT

WEDGE - trunnion mounting, right-hand and left-hand

1шт.

5

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex head, 3/8" - 16 NC x 4-1/4"

1шт.

6

92-6

LOCK WASHER,3/8"

1шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

8

219-13

LUBE NIPPLE,3/16" NPTF

GREASE FITTING - straight

1шт.

9

H650820

BAR - tie

1шт.

10

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

2шт.

11

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

12

195-2089

WASHER,25/32" x 1 1/2" x .083"

- flat, spacer, 3/4"

1шт.

13

113-759

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex head, 3/4" - 10 NC x 7-1/2"

4шт.

14

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

15

129-108

NUT,3/4"-10, G5

4шт.

16

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

4шт.

17

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

18

129-107

NUT,5/8"-11, G5

4шт.

19

G34196

CYLINDER

- tilt, left-hand, parts list Figure 162

1шт.

20

G34197

CYLINDER ASSY.

CYLINDER - tilt, right-hand, parts list Figure 162, not shown

1шт.

21

H67272

PIN,25.3mm OD x 84.93mm L

PIN - tilt cylinder mounting

4шт.

22

138-2039

PIN,1/4" x 2", Coiled

ROLL PIN, , pin retaining 1/4" x 2", Coiled

4шт.
