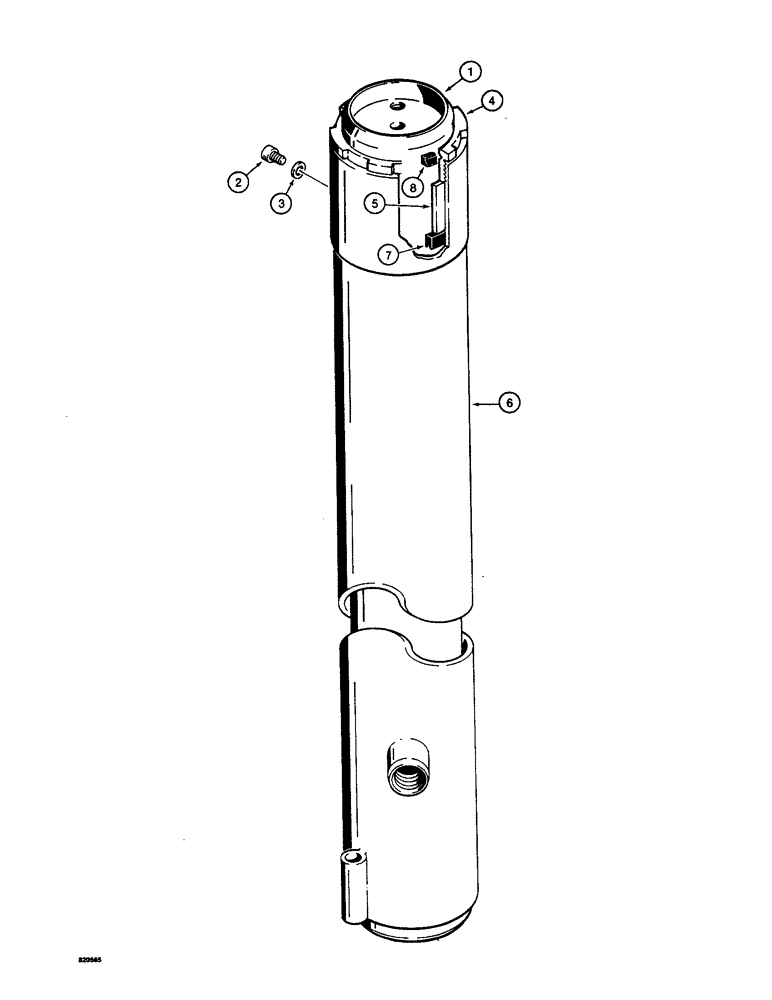

Запчасти Case W4 (160) - H650846 FORKLIFT LIFT CYLINDER (08) - HYDRAULICS

H650846

CYLINDER ASSEMBLY - lift, 2-5/8" (67 MM) ID x 71.25" (1810 MM) stroke, Includes: Ref. 1-8

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON - tube assembly

1шт.

2

61-46

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW - hex socket head, 1/4" - 20 NC x 3/8"

1шт.

3

D24252

WASHER

- special

1шт.

4

D87298

NUT

- cylinder packing

1шт.

5

D87299

PACKING RING

SLEEVE - packing

1шт.

6

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

D87288

SET OF PARTS

KIT - packing, Includes: Ref. 7 & 8

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston

1шт.

8

NSS

NOT SOLD SEPARAT

RING - packing

1шт.
