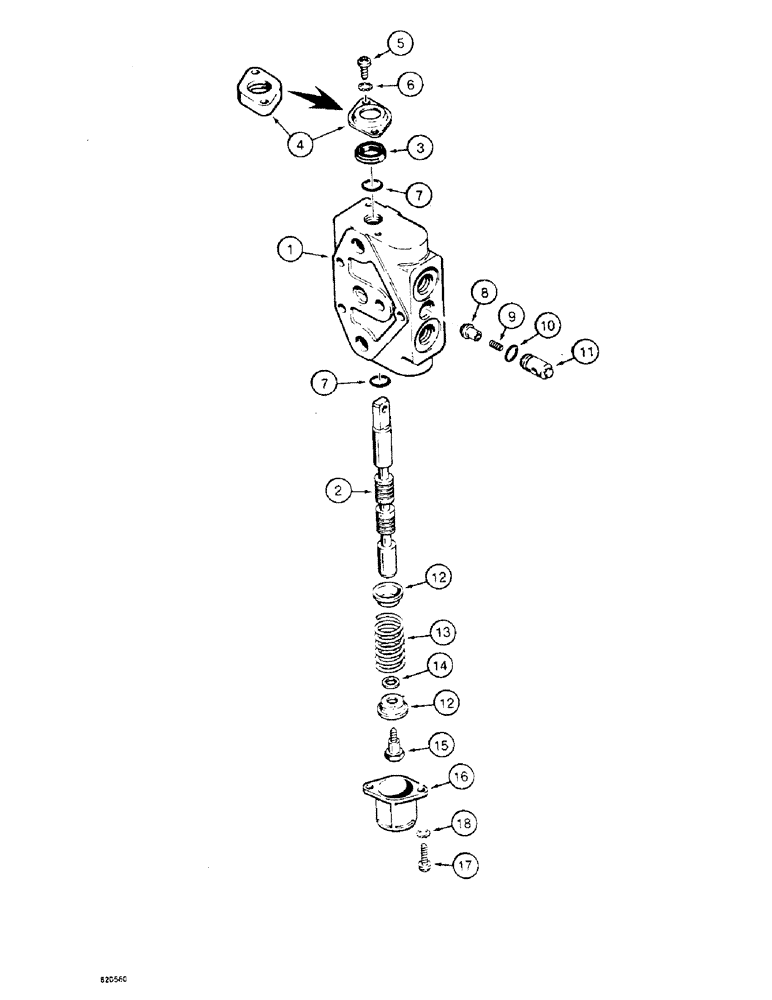

Запчасти Case W4 (150) - CONTROL VALVE, LOADER AUXILIARY SECTION AND FORKLIFT TILT SECTION (08) - HYDRAULICS

H672315

KNIFE SECTION

SECTION - forklift lift and loader auxiliary, Includes: Ref. 1-18

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve section

1шт.

H655894

RETAINER

KIT - spool retainer and seal, Includes: Ref. 3-6

1шт.

3

NSS

NOT SOLD SEPARAT

SEAL - spool

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - spool

1шт.

5

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

MACHINE SCREW - Phillips head, 1/4" - 20 NC x 3/4"

2шт.

6

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

2шт.

7

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

- spool

2шт.

H644880

CHECK VALVE

LOAD CHECK VALVE - valve section, Includes: Ref. 8-11

1шт.

8

NSS

NOT SOLD SEPARAT

POPET - load check

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

10

D61967

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

- body

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - load check

1шт.

H655902

KIT

- spool, three position, Includes: Ref. 12-18

1шт.

12

NSS

NOT SOLD SEPARAT

SEAT - centering spring

2шт.

13

NSS

NOT SOLD SEPARAT

SPRING - centering

1шт.

14

NSS

NOT SOLD SEPARAT

SPACER - seat

1шт.

15

NSS

NOT SOLD SEPARAT

BOLT - shoulder, special

1шт.

H401182

CAP

ASSEMBLY - end, Includes: 16-18

1шт.

16

NSS

NOT SOLD SEPARAT

CAP - spool end

1шт.

17

182-560

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

MACHINE SCREW - Phillips head, 1/4" - 20 NC x 3/4"

2шт.

18

193-57

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

2шт.
